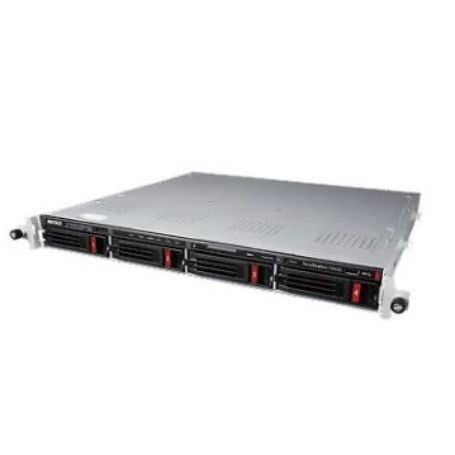

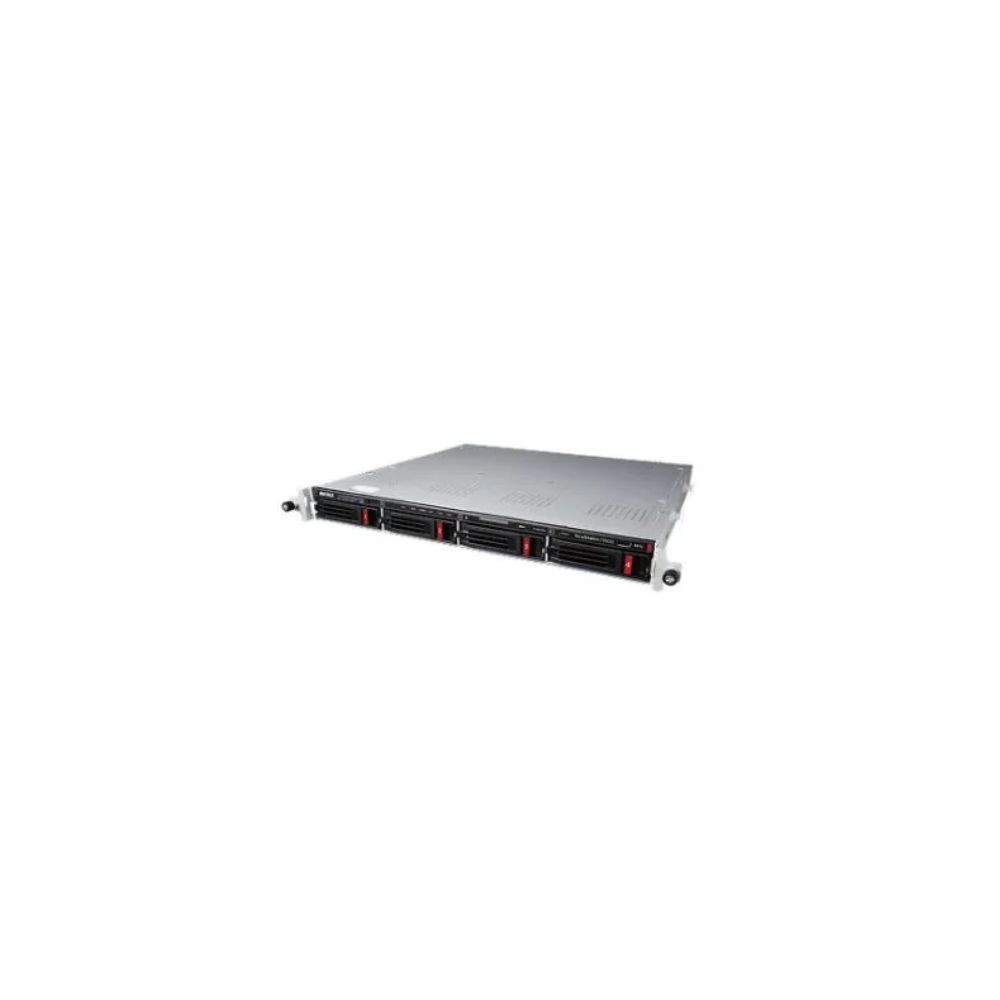

BUFFALO TS5420RN3204 – TeraStation 5020 32TB 4-Bay 1U Rackmount NAS
Overview
The BUFFALO TS5420RN3204 is a TeraStation 5020 Series 4-bay rackmount NAS configured with four 8TB NAS-dedicated HDDs for 32TB of total installed raw storage. Its 1U rackmount chassis provides centralized network storage for business file sharing, backup, data protection, and rack-based NAS deployments. The system provides one 10GbE port and two 1GbE ports for integration into multi-gigabit Ethernet environments.
Technical Information
The TS5420RN3204 uses an Annapurna Labs Alpine AL524 2.0GHz quad-core 64-bit processor with 8GB DDR4 ECC memory. Storage supports RAID 0, 1, 5, 6, 10, and JBOD. Buffalo specifies RAID 6 as the factory configuration; with the installed 32TB raw capacity, RAID 6 provides 16TB of effective capacity.
The TeraStation 5020 platform supports snapshots, abnormal file activity detection, remote configuration, hot swapping, and hot spares. The TS5420RN platform does not support SSD caching. Network file services include CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS.
Compatibility
The TS5420RN3204 uses four 3.5-inch NAS-dedicated HDDs with SATA III interfaces supporting up to 6Gbps. All four drive bays are populated in this configuration.
Network connectivity consists of one 10GBASE-T RJ-45 port and two 1000BASE-T RJ-45 ports. The 10GbE interface supports 10Gbps, 5Gbps, 2.5Gbps, and 1Gbps operation, while the 1GbE ports support 1000Mbps, 100Mbps, and 10Mbps operation. Supported network file services include CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS.
Key Features
- 32TB installed capacity using four 8TB NAS-dedicated HDDs
- 4-bay 1U rackmount chassis with all four drive bays populated
- 1 x 10GBASE-T and 2 x 1000BASE-T RJ-45 network ports
- 8GB DDR4 ECC memory with Annapurna Labs AL524 quad-core processor
- RAID 0/1/5/6/10/JBOD with RAID 6 configured at shipment
Applications
The TS5420RN3204 is suited to centralized business file storage, departmental shared storage, network backup, data protection, and rack-mounted NAS deployments requiring 10GbE connectivity. Its 1U chassis is suited to standard rack infrastructure where compact storage density is required.
DC Supplies Product Note
The exact TS5420RN3204 configuration contains four 8TB NAS-dedicated HDDs for 32TB of installed raw capacity. Buffalo specifies RAID 6 as the factory configuration, providing 16TB of effective capacity in RAID 6. Usable storage changes with the selected RAID level and system overhead.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS5420RN3204 |
| Product Type | Business Rackmount NAS |
| Series | TeraStation 5020 / TS5420RN |
| Form Factor | 1U Rackmount |
| Drive Bays | 4 |
| Drive Size | 3.5-inch |
| Included Drives | 4 x 8TB |
| Total Installed Capacity | 32TB |
| Drive Type | NAS-dedicated HDD |
| Drive Interface | SATA III, up to 6Gbps |
| Factory RAID | RAID 6 |
| RAID 6 Effective Capacity | 16TB |
| RAID 5 Effective Capacity | 24TB |
| RAID 10 Effective Capacity | 16TB |
| RAID 1 Effective Capacity | 8TB |
| RAID 0 Effective Capacity | 32TB |
| Supported RAID | RAID 0, 1, 5, 6, 10, JBOD |
| CPU | Annapurna Labs Alpine AL524 |
| CPU Speed / Cores | 2.0GHz / 4-core 64-bit |
| Memory | 8GB DDR4 ECC |
| 10GbE Port | 1 x 10GBASE-T |
| 1GbE Ports | 2 x 1000BASE-T |
| Supported Ethernet Speeds | 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, 10Mbps |
| Network Connector | RJ-45 |
| USB Ports | 2 x USB 3.2, 2 x USB 2.0 |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Snapshots | Supported |
| Abnormal File Activity Detection | Supported |
| Remote Configuration | Supported |
| Hot Swap | Supported |
| Hot Spares | Supported |
| SSD Caching | Not supported |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 100W |
| Power Consumption, Data Transfer | 75W |
| Power Consumption, Idle | 63W |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 16.93 x 16.93 x 1.74 in (L x W x H) |
| Dimensions, Metric | 430 x 430 x 44.3mm |
| Weight | 18.69 lb |
| Warranty | 3 years |
FAQs
How much storage is included with the TS5420RN3204?
The TS5420RN3204 includes four 8TB NAS-dedicated HDDs, providing 32TB of total installed raw capacity.
What RAID configuration is used at the factory?
Buffalo specifies RAID 6 as the factory configuration. The 32TB configuration provides 16TB of effective capacity in RAID 6.
How many network ports does the TS5420RN3204 have?
The NAS provides one 10GBASE-T port and two 1000BASE-T ports, all using RJ-45 connectivity.
Does the TS5420RN3204 support SSD caching?
No. Buffalo specifies SSD caching as unsupported on the TS5420RN platform.
Can the drives be replaced without shutting down the NAS?
Yes. The system supports hot-swappable drive operation.
What processor and memory are installed?
The NAS uses an Annapurna Labs Alpine AL524 2.0GHz quad-core 64-bit processor with 8GB DDR4 ECC memory.
