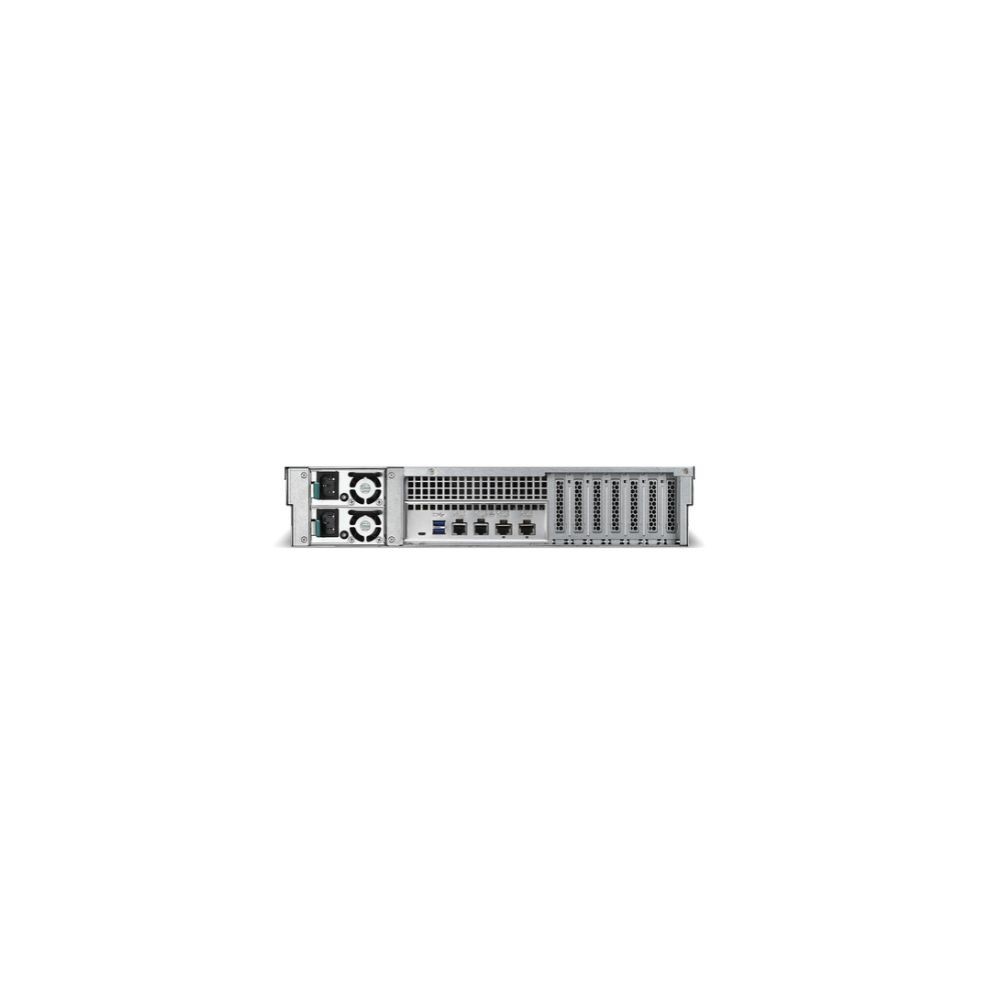

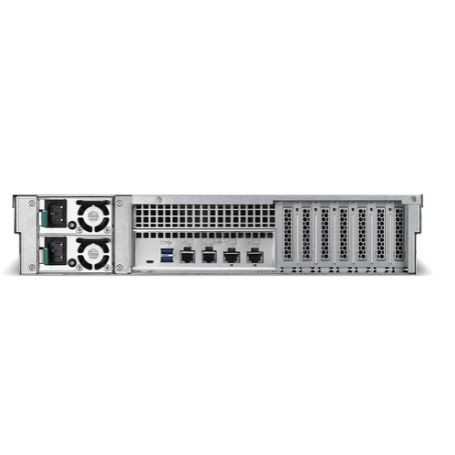

BUFFALO TS51220RH9612 – TeraStation 5020 96TB 12-Bay 2U Rackmount NAS
Overview
The BUFFALO TS51220RH9612 is a TeraStation 5020 Series 12-bay rackmount NAS configured with twelve 8TB enterprise-grade CMR hard drives for 96TB of total installed raw storage. The 2U rackmount platform provides high-capacity network storage for business file sharing, backup, centralized data storage, and other rack-based storage deployments.
Technical Information
The TS51220RH9612 uses an Annapurna Labs Alpine AL524 2.04GHz quad-core processor and 16GB DDR4 memory. Storage supports RAID 0, 1, 5, 6, 10, and JBOD, with hot spares and hot-swappable drives supported. The platform also provides Btrfs, rapid RAID changes, replication, failover, snapshots, snapshot backup, iSCSI, iSCSI backup, and remote configuration.
The TeraStation 5020 platform includes abnormal login and file activity detection, Active Directory integration, SNMP, UPS support, cloud service integration, and two-factor authentication. The TS51220RH series also supports optional SSD caching using compatible Buffalo SSDs.
Compatibility
The TS51220RH9612 uses twelve 3.5-inch enterprise-grade CMR HDDs with SATA 6Gbps interfaces. Buffalo specifically lists the OP-HD8.0H2U-5Y 8TB replacement enterprise HDD as compatible with the TS51220RH9612.
Network connectivity includes two 10GBASE-T ports and two 1000BASE-T ports using RJ-45 connectors. Supported Ethernet standards include 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T. Supported network file services include CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS.
Key Features
- 96TB installed capacity using twelve 8TB enterprise-grade CMR HDDs
- 12-bay 2U rackmount chassis with all twelve drive bays populated
- 2 x 10GBASE-T and 2 x 1000BASE-T RJ-45 network ports
- 16GB DDR4 memory with Annapurna Labs AL524 2.04GHz quad-core processor
- RAID 0/1/5/6/10/JBOD with hot spares and hot-swappable drives
Applications
The TS51220RH9612 is suited to centralized business file storage, shared network storage, backup repositories, data protection, virtualization backup, and other enterprise rack deployments requiring 96TB of installed capacity and high-speed Ethernet connectivity.
DC Supplies Product Note
The exact TS51220RH9612 configuration is the 96TB fully populated 12-drive version of the TeraStation 5020 TS51220RH platform. It uses twelve 8TB enterprise-grade CMR HDDs. Usable capacity depends on the selected RAID configuration and storage overhead rather than the 96TB raw installed capacity.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS51220RH9612 |
| Product Type | Enterprise Rackmount NAS |
| Series | TeraStation 5020 / TS51220RH |
| Form Factor | 2U Rackmount |
| Drive Bays | 12 |
| Included Drives | 12 x 8TB |
| Total Installed Capacity | 96TB |
| Drive Type | Enterprise-grade HDD, CMR |
| Drive Interface | SATA 6Gbps |
| Supported RAID | RAID 0, 1, 5, 6, 10, JBOD |
| CPU | Annapurna Labs Alpine AL524 |
| CPU Speed / Cores | 2.04GHz / Quad-Core |
| Memory | 16GB DDR4 |
| 10GbE Ports | 2 x 10GBASE-T |
| 1GbE Ports | 2 x 1000BASE-T |
| Supported Ethernet Standards | IEEE 802.3an, IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3 |
| Data Transfer Rates | 10Gbps, 1Gbps, 100Mbps, 10Mbps |
| Network Connector | RJ-45 |
| USB Ports | 2 x USB 3.2, 2 x USB 2.0 |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Btrfs Filesystem | Supported |
| Snapshots | Supported |
| Snapshot Backup | Supported |
| iSCSI | Supported |
| iSCSI Backup | Supported |
| Hot Spares | Supported |
| Hot Swapping | Supported |
| SSD Caching | Supported with compatible optional SSD |
| Active Directory | Supported |
| Cloud Service Integration | Dropbox, Amazon S3, Wasabi, Box, Microsoft Azure, OneDrive |
| Power Supply | Internal AC 100–240V, 50/60Hz; optional dual power supply |
| Maximum Power Consumption | 500W |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 29.0 x 18.9 x 3.4 in (L x W x H) |
| Weight | 55.37 lb |
| Warranty | 5 years with product registration |
| Country of Origin | Japan |
FAQs
How much storage is included with the TS51220RH9612?
The TS51220RH9612 includes twelve 8TB enterprise-grade CMR HDDs, providing 96TB of total installed raw capacity.
How many drive bays does the TS51220RH9612 have?
The system has 12 drive bays, and this exact configuration includes twelve installed 8TB drives.
What RAID levels are supported?
The TS51220RH9612 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD. Hot spares and hot-swappable drives are also supported.
How many 10GbE ports are included?
The NAS provides two 10GBASE-T ports and two 1000BASE-T ports, using RJ-45 connectors.
Does the TS51220RH9612 support SSD caching?
Yes. The TS51220RH series supports SSD caching with compatible optional Buffalo SSDs, sold separately.
What processor and memory are installed?
The TS51220RH9612 uses an Annapurna Labs Alpine AL524 2.04GHz quad-core processor with 16GB DDR4 memory.
