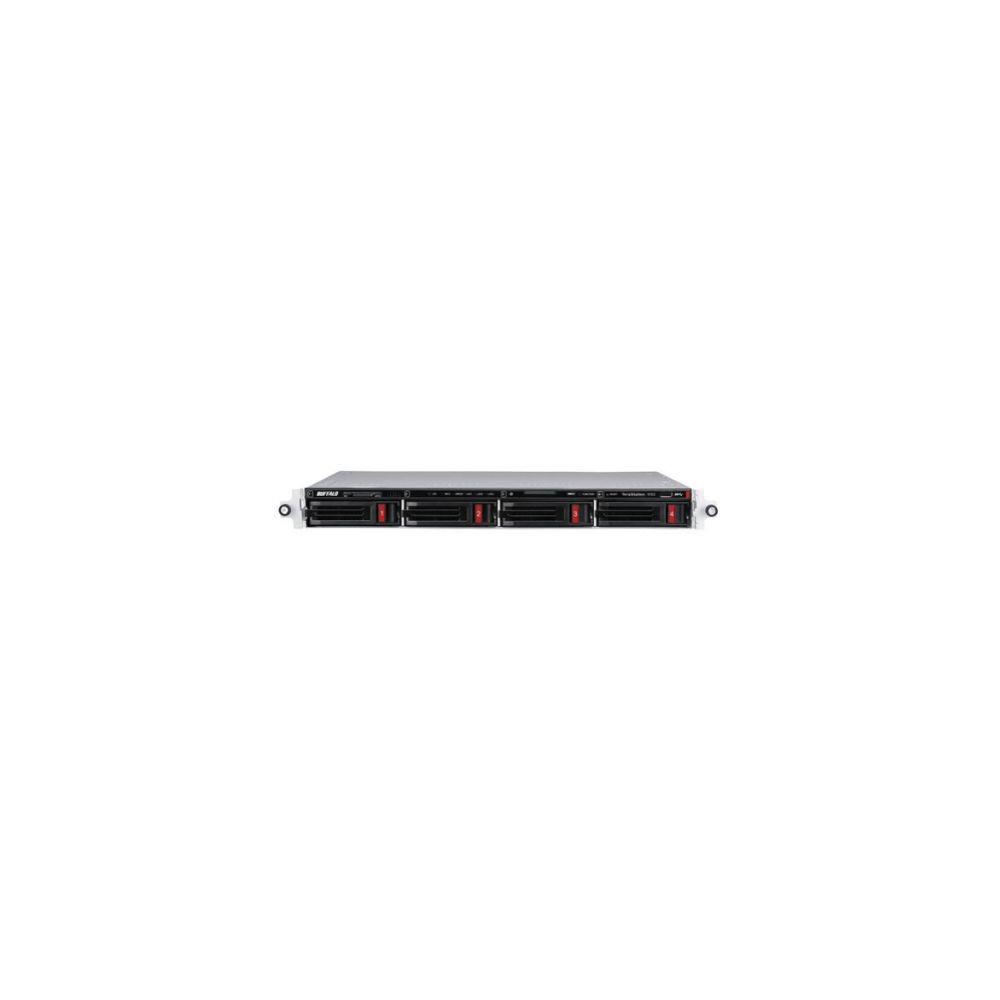

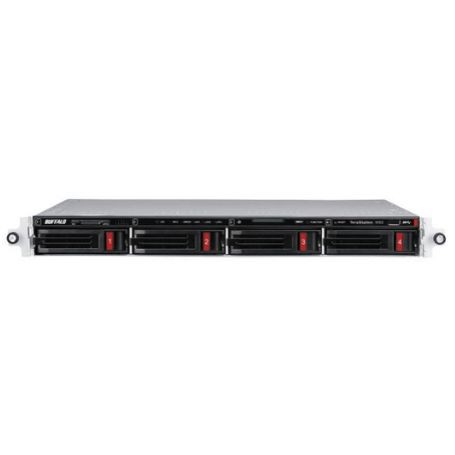

BUFFALO TS5420RN8004 – TeraStation 5420 80TB 4-Bay 1U Rackmount NAS
Overview
The BUFFALO TS5420RN8004 is a TeraStation 5420 Series business NAS with a 1U rackmount chassis, four 3.5-inch drive bays, and 80TB of installed storage using four 20TB NAS-dedicated hard drives. It provides 1 x 10GbE and 2 x 1GbE network interfaces for centralized file storage, backup, and network data services in rack-mounted IT environments.
Technical Information
The TS5420RN8004 uses an Annapurna Labs Alpine AL524 2.04GHz quad-core 64-bit processor and 8GB DDR4 ECC memory. Storage is managed through software RAID with support for RAID 0, 1, 5, 6, 10, and JBOD. The factory configuration is RAID 6, providing 40TB of effective capacity from the installed 80TB raw storage.
The system supports snapshots, copy-on-write, metadata duplication, backup functions, replication, failover, abnormal file activity detection and protection, remote management through KikiNavi, cloud backup integration, Active Directory integration, two-factor authentication, hot spares, and hot-swappable drives.
Compatibility
The TS5420RN8004 uses four 3.5-inch NAS-dedicated HDDs and provides RJ-45 network connectivity through one 10GBASE-T port and two 1000BASE-T ports. Supported network file services include CIFS/SMB, AFP, FTP/FTPS/SFTP, and NFS, with TCP/IP network support. The system also provides two USB 3.0 ports and two USB 2.0 ports.
The 10GBASE-T interface supports high-speed Ethernet connectivity, while the two 1GbE ports can be used for additional network connections and supported link aggregation or NIC teaming functions. RAID configuration should be selected according to the required capacity, redundancy, and storage architecture.
Key Features
- 80TB installed capacity using four 20TB NAS-dedicated HDDs
- 1U rackmount chassis with four 3.5-inch drive bays
- 1 x 10GbE plus 2 x 1GbE RJ-45 network interfaces
- 8GB DDR4 ECC memory with Annapurna Labs AL524 quad-core processor
- RAID 0/1/5/6/10/JBOD with RAID 6 as the factory configuration
Applications
The TS5420RN8004 is suited to centralized business file storage, departmental NAS deployments, network backup, shared data repositories, and rack-based storage environments requiring 10GbE connectivity. Its 1U form factor allows the four-bay storage system to be installed within standard rack infrastructure.
DC Supplies Product Note
The TS5420RN8004 is the 80TB configuration of the four-bay TeraStation 5420RN platform, using four 20TB drives. Factory RAID 6 provides 40TB of effective capacity; available capacity changes with the selected RAID level and storage configuration.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS5420RN8004 |
| Product Type | Business NAS |
| Series | TeraStation 5420 / TeraStation 5020 |
| Form Factor | 1U Rackmount |
| Drive Bays | 4 |
| Drive Size | 3.5-inch |
| Included Drives | 4 x 20TB |
| Total Installed Capacity | 80TB |
| Drive Type | NAS-dedicated HDD |
| Factory RAID | RAID 6 |
| RAID 6 Effective Capacity | 40TB |
| Supported RAID | RAID 0, 1, 5, 6, 10, JBOD |
| CPU | Annapurna Labs Alpine AL524 |
| CPU Speed / Cores | 2.04GHz / 4-core 64-bit |
| Memory | 8GB DDR4 ECC |
| 10GbE | 1 x 10GBASE-T |
| 1GbE | 2 x 1000BASE-T |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Network Protocol | TCP/IP |
| Network File Services | CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS |
| Snapshots | Supported |
| Hot Swap | Supported |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 100W |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Dimensions | 430 x 44.3 x 430mm (W x H x D) |
| Weight | Approximately 8.4kg |
| Warranty | 3 years |
FAQs
How much storage is included with the TS5420RN8004?
The TS5420RN8004 includes four 20TB drives for 80TB of total installed raw capacity.
What RAID configuration is used at the factory?
The factory configuration is RAID 6. For the 80TB configuration, RAID 6 provides 40TB of effective capacity.
How many network ports does the TS5420RN8004 have?
It provides one 10GBASE-T port and two 1000BASE-T ports, all using RJ-45 connectivity.
Does the TS5420RN8004 support hot-swapping?
Yes. The four drive bays support hot-swappable HDD operation, and hot spares are also supported.
What RAID levels are supported?
The system supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
What processor and memory are installed?
The TS5420RN8004 uses an Annapurna Labs Alpine AL524 2.04GHz quad-core 64-bit processor with 8GB DDR4 ECC memory.
