Detailed Specifications
Netgear SXK30-100NAS Orbi Pro AX1800 Mesh System
Overview :

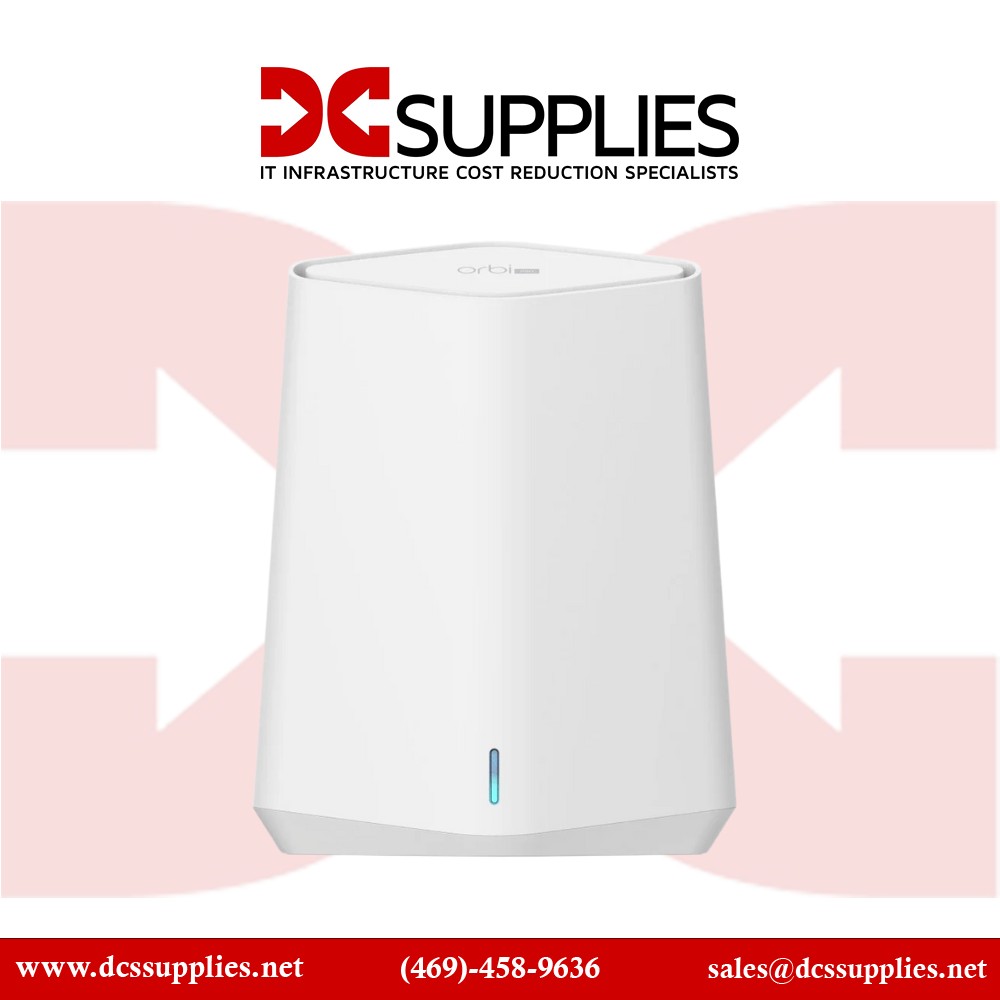

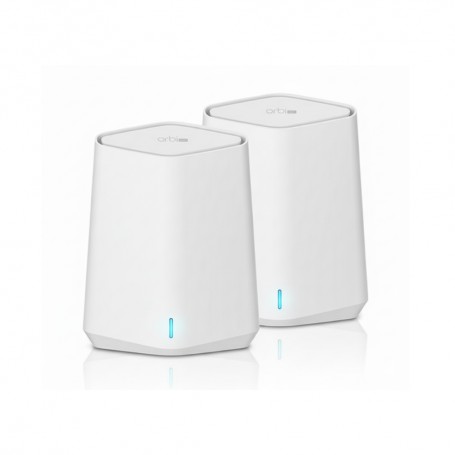

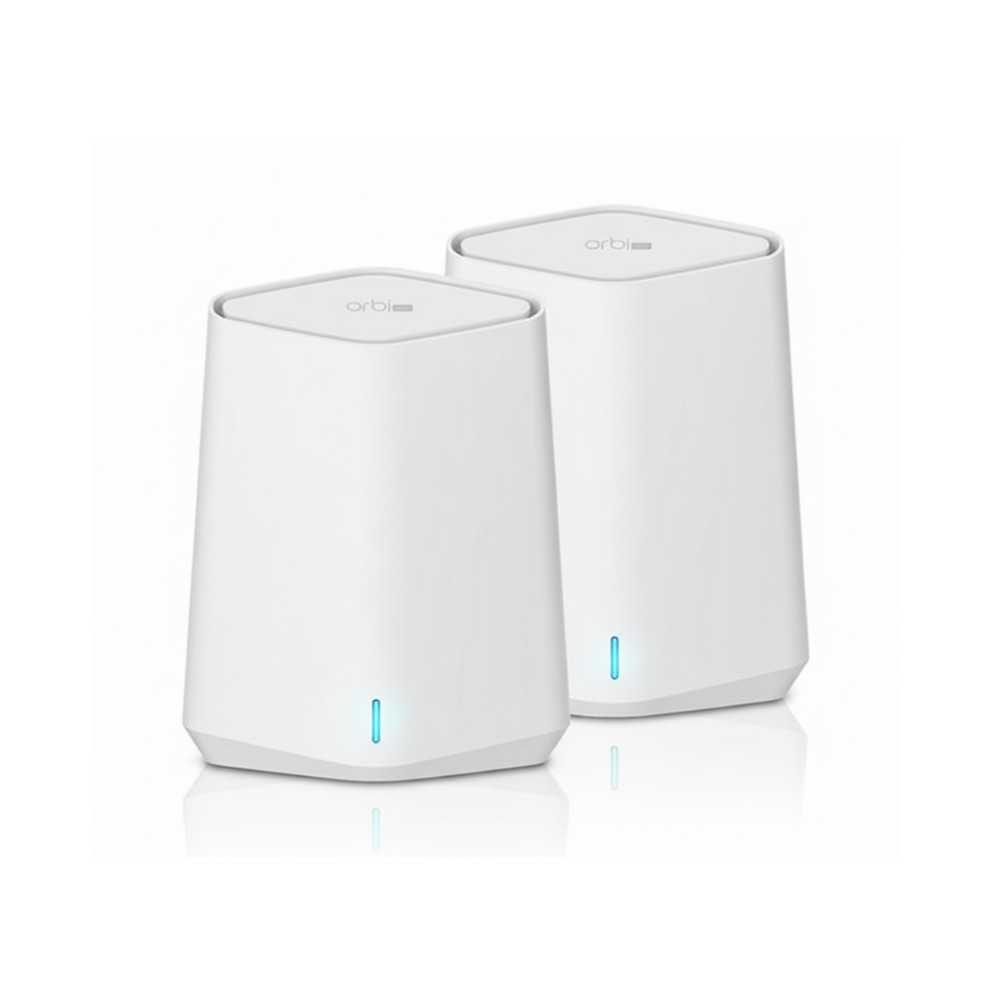

The Netgear SXK30-100NAS is a dual-unit (router + satellite) mesh WiFi 6 system for small business and branch use. It delivers combined throughput up to 1.8 Gbps (1,200 Mbps @ 5 GHz + 600 Mbps @ 2.4 GHz) over dual-band WiFi. It is intended for deployment in small offices, retail locations, or satellite branch sites. Management is via the Netgear Insight cloud or local web interface.
Key Features :
Dual-band AX1800 (1,200 + 600 Mbps) mesh system
Supports wired backhaul between router/satellite
Four SSIDs with VLAN tagging and segmentation
5-year limited hardware warranty included
Specifications
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | SXK30-100NAS |
| Product Type | Mesh WiFi 6 System (Router + Satellite) |
| WiFi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz (dual-band) |
| Maximum Throughput | 1,800 Mbps combined (1,200 + 600) |

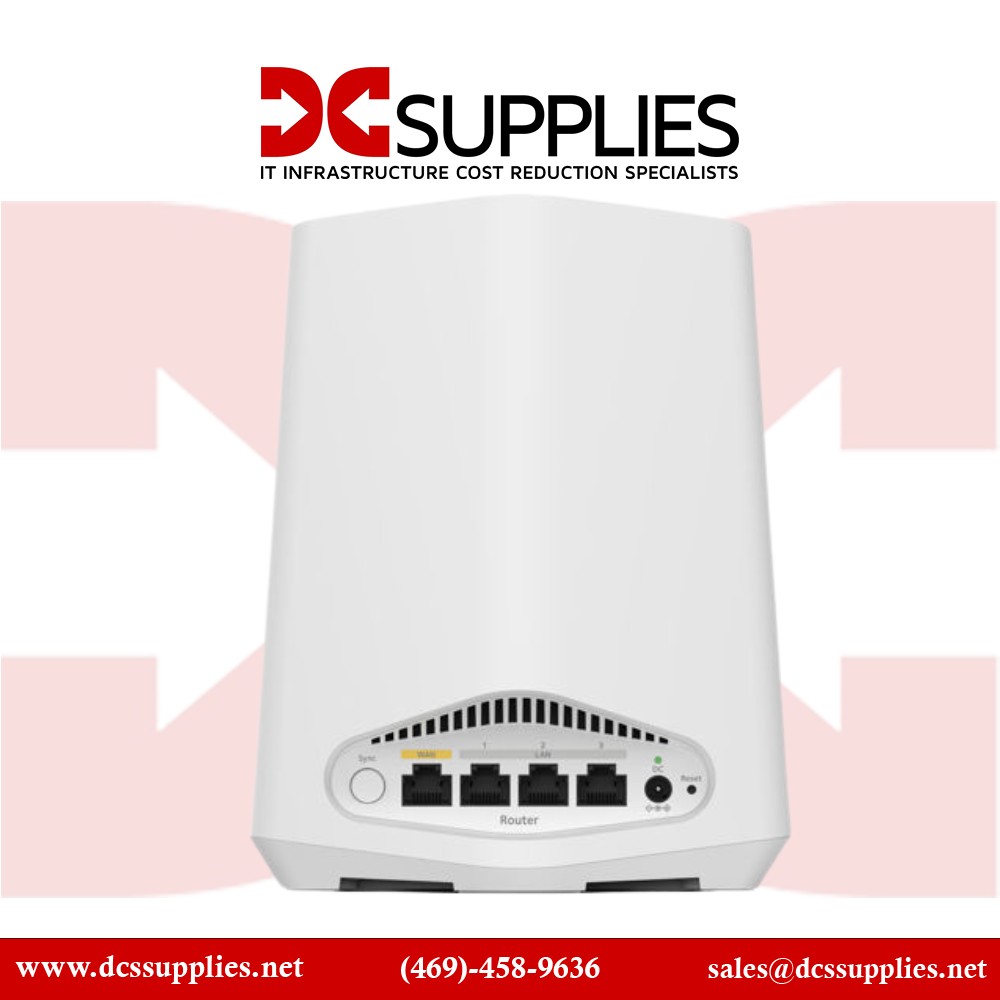

| Ethernet Ports - Router | 1 × WAN, 3 × LAN (1 Gbps) |
| Ethernet Ports - Satellite | 4 × LAN (1 Gbps) |
| Antennas | Internal integrated antennas |
| SSIDs / VLANs | Up to 4 SSIDs with VLAN tagging |
| Mesh Scalability | Supports router + up to 6 satellites |
| Dimensions (each unit) | 148 × 68 × 189 mm |
| Weight (each unit) | 0.48 kg |
| Warranty | 5-year limited hardware warranty |
