Detailed Specifications

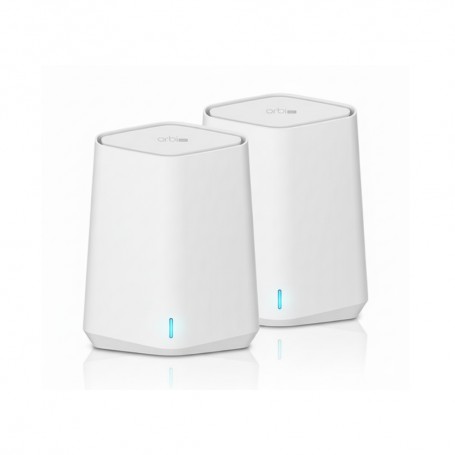

Netgear SXK30-100CNS Orbi Pro WiFi 6 Mini AX1800 Mesh System
Overview
The Netgear SXK30-100CNS is a mesh WiFi 6 system comprising a router and one satellite, designed for small business or branch use. It provides combined dual-band throughput up to 1.8 Gbps and supports VLAN segmentation and multiple SSIDs. It is typically deployed in small office, retail, or branch scenarios. Management is via the Netgear Insight app or local web interface.
Key Features
Dual-band WiFi 6 (AX1800 total throughput)
Wired backhaul support (no multi-gig port)
4 SSIDs with VLAN tagging and isolation
5-year limited hardware warranty
Technical Specifications
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | SXK30-100CNS |
| Product Type | Mesh WiFi 6 System (2 units) |
| Frequency Bands | 2.4 GHz + 5 GHz (dual-band) |
| Wireless Standard | IEEE 802.11ax / 802.11a/b/g/n/ac |
| Maximum Throughput | 1,800 Mbps combined (1,200 + 600) |
| Antennas | Integrated (2 per unit) |
| Ethernet Ports - Router | 1 × WAN + 3 × LAN, 1 Gbps |
| Ethernet Ports - Satellite | 4 × LAN, 1 Gbps |
| Mesh Scalability | Router + up to 6 satellites |
| SSIDs / VLANs | Up to 4 SSIDs with VLAN mapping |
| Dimensions (each unit) | 148 × 68 × 189 mm |
| Weight (each unit) | 0.48 kg |
| Warranty | 5-year limited |
