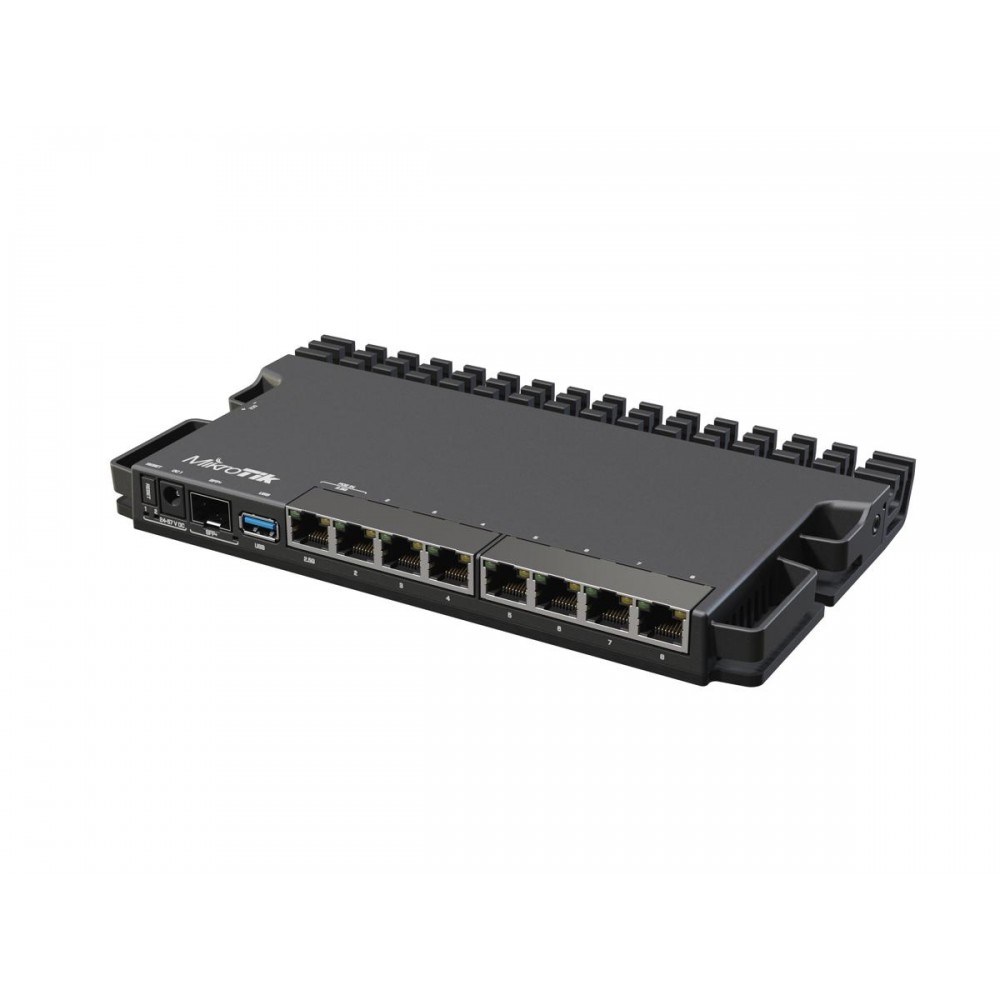

The MikroTik RB5009UG+S+IN is a compact, high-performance Ethernet router designed for home labs, small networks, advanced routing environments, and high-speed network infrastructure. It combines a quad-core ARM64 processor with seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, one 10G SFP+ port, USB 3.0, and RouterOS.
High-Speed Wired Connectivity
The RB5009UG+S+IN provides nine wired network interfaces in total. Seven ports support 10/100/1000 Ethernet, one port supports 2.5 Gigabit Ethernet, and one SFP+ cage supports 10 Gigabit connectivity. The interfaces are connected through the Marvell 88E6393 switch chip with a 10Gbps full-duplex connection to the processor.
Quad-Core ARM64 Processing
The router uses a Marvell Armada 88F7040 quad-core ARM64 processor with a nominal frequency range of 350–1400MHz. It includes 1GB of DDR4 RAM and 1GB of NAND storage for RouterOS and system operation.
Flexible Power Options
The RB5009UG+S+IN supports three power input methods: PoE-in through Ethernet port 1, a DC barrel jack, and a two-pin terminal connection. The supported input voltage range is 24–57V DC.
RouterOS and USB Connectivity
The device runs RouterOS with a Level 5 license and includes a USB 3.0 Type-A port. RouterOS provides the routing, switching, firewall, VPN, VLAN, and network-management capabilities associated with MikroTik's RouterOS platform.
Key Features
- Quad-core Marvell Armada 88F7040 ARM64 processor
- Seven Gigabit Ethernet ports plus one 2.5GbE port
- One 10G SFP+ port for high-speed fiber or compatible SFP+ connectivity
- 1GB DDR4 RAM and 1GB NAND storage
- PoE-in, DC jack, and two-pin terminal power inputs
Applications
The RB5009UG+S+IN is suited to home labs, small-business networks, advanced routing deployments, network aggregation, high-speed internet gateways, VLAN environments, VPN gateways, and compact infrastructure installations.
DC Supplies Product Note
The RB5009UG+S+IN can be integrated into a rack using the optional MikroTik K-79 rackmount kit, which allows up to four RB5009 units to occupy a single 1U rack space.
Specifications
| Specification | Details |
|---|
| Brand | MikroTik |
| Part Number / MPN | RB5009UG+S+IN |
| Product Type | Ethernet Router |
| Architecture | ARM 64-bit |
| CPU | Marvell 88F7040 |
| CPU Cores | 4 |
| CPU Frequency | 350–1400MHz |
| Switch Chip | Marvell 88E6393 |
| RAM | 1GB DDR4 |
| Storage | 1GB NAND |
| Operating System | RouterOS v7 |
| RouterOS License | Level 5 |
| Gigabit Ethernet Ports | 7 |
| 2.5G Ethernet Ports | 1 |
| 10G SFP+ Ports | 1 |
| USB | 1 × USB 3.0 Type-A |
| Power Inputs | DC Jack, PoE-in, 2-pin terminal |
| Input Voltage | 24–57V DC |
| PoE-in | 802.3af/at |
| Cooling | Passive |
| Maximum Power Consumption | 25W |
| Maximum Power Consumption Without Attachments | 14W |
| Operating Temperature | -40°C to 60°C |
| MTBF | Approximately 200,000 hours at 25°C |
| Dimensions | 220 × 125 × 22mm |
| Certifications | CE, EAC, RoHS |
FAQs
How many Ethernet ports does the RB5009UG+S+IN have?
It provides seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and one 10G SFP+ port.
What processor does the RB5009UG+S+IN use?
The router uses a Marvell Armada 88F7040 quad-core ARM64 processor with a nominal frequency range of 350–1400MHz.
How can the RB5009UG+S+IN be powered?
The router supports PoE-in through Ethernet port 1, a 24–57V DC barrel jack, or a 24–57V DC two-pin terminal input.
Does the RB5009UG+S+IN support 10 Gigabit networking?
Yes. It includes one 10G SFP+ cage for compatible 10 Gigabit SFP+ connectivity.
Which operating system does it use?
The RB5009UG+S+IN comes with RouterOS v7 and a Level 5 RouterOS license.
