Detailed Specifications

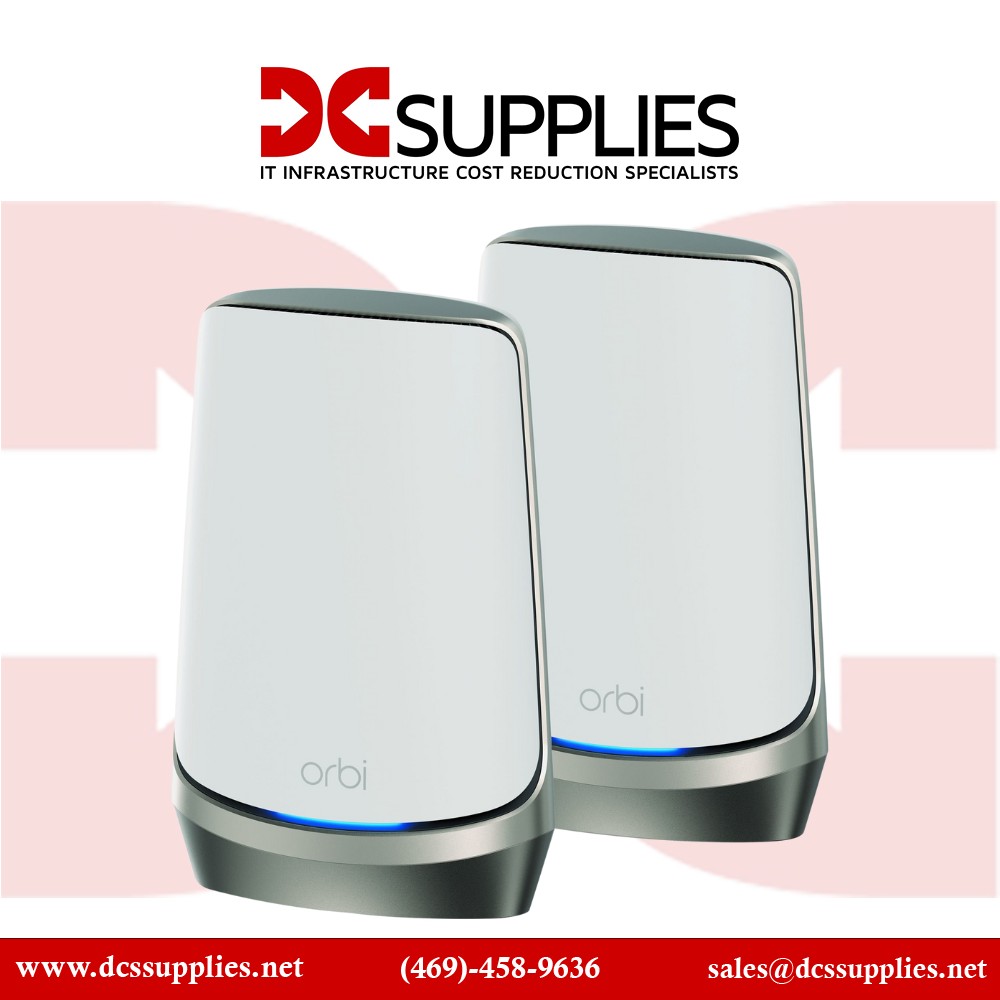

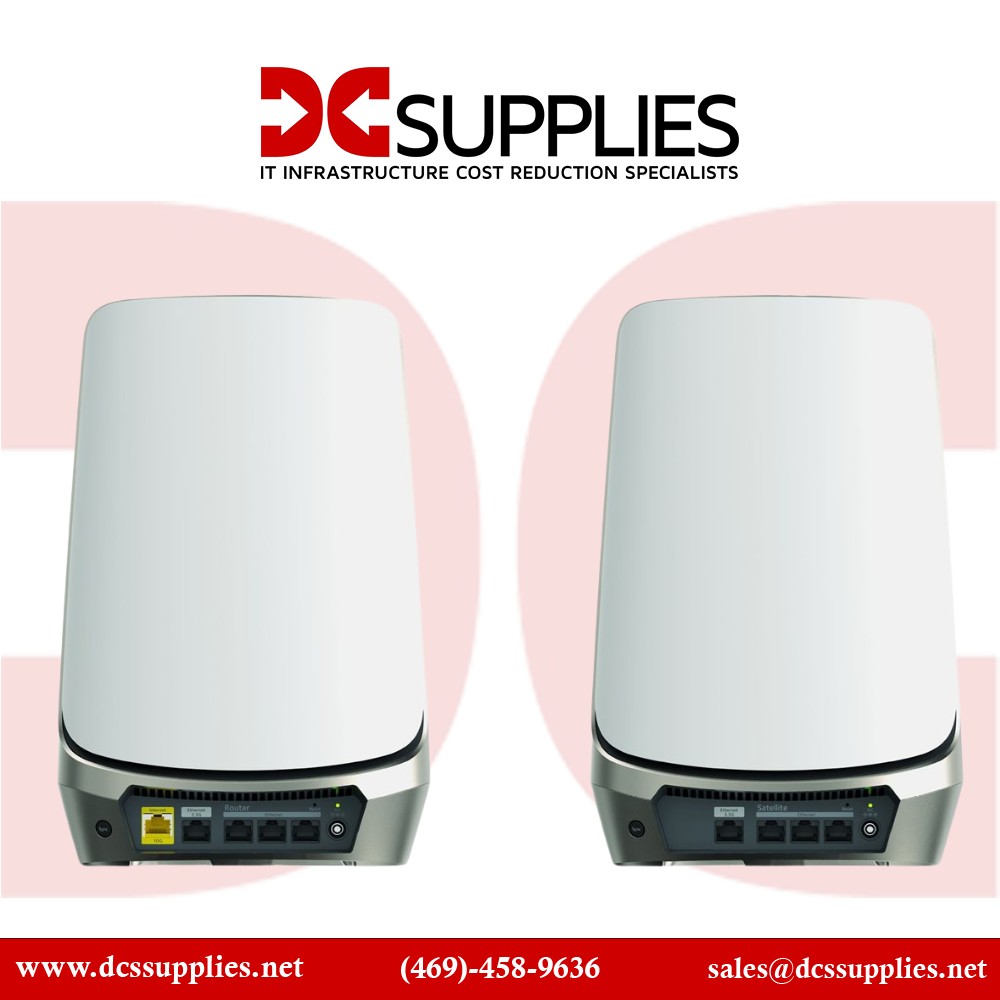

Netgear RBKE962-100NAS Quad-Band AXE 11000 Mesh System
Overview :
The Netgear RBKE962-100NAS is a 2-unit quad-band mesh WiFi 6E system, designed for whole-home or large property wireless coverage. It delivers combined throughput up to 10.8 Gbps across 2.4 GHz, dual 5 GHz, and 6 GHz bands. The kit supports a 10 GbE WAN port and multi-gig LAN ports to keep wired backhaul or high-speed uplinks efficient. It is suited for premium residential, branch, or small business deployments needing high concurrency and WiFi 6E support.
Key Features :
Quad-band architecture: 2.4 GHz + 5 GHz ×2 + 6 GHz
Combined throughput up to 10.8 Gbps (AXE 11000 class)
10 GbE WAN / multi-gig LAN support
Mesh coverage up to ~6,000 sq ft
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | RBKE962-100NAS |
| Product Type | Mesh WiFi 6E system (router + satellite) |
| WiFi Standard | IEEE 802.11ax / WiFi 6E |
| Wireless Bands | 2.4 GHz + 5 GHz (×2) + 6 GHz |
| Maximum Throughput | 10.8 Gbps |
| WAN / Uplink Port | 1 × 10 GbE |
| LAN / Backhaul Ports | Supports multi-gig LAN (2.5 G / 1 G) |
| Coverage Area | Up to ~6,000 sq ft |
| Device Capacity | Up to 200 devices |
| Antennas | 12 internal antennas |
| Memory / Storage | 512 MB flash, 1 GB RAM |
| Dimensions (each unit) | ~279.4 × 190.5 × 76.2 mm |
| Weight (each unit) | ~1.36 kg |
| Operating Temperature | 0 °C to 40 °C |
| Security / Features | WPA3, guest WiFi, Netgear Armor support |
| Typical Use Cases | High-end residential, branch office, high-density WiFi 6E deployments |
