Overview

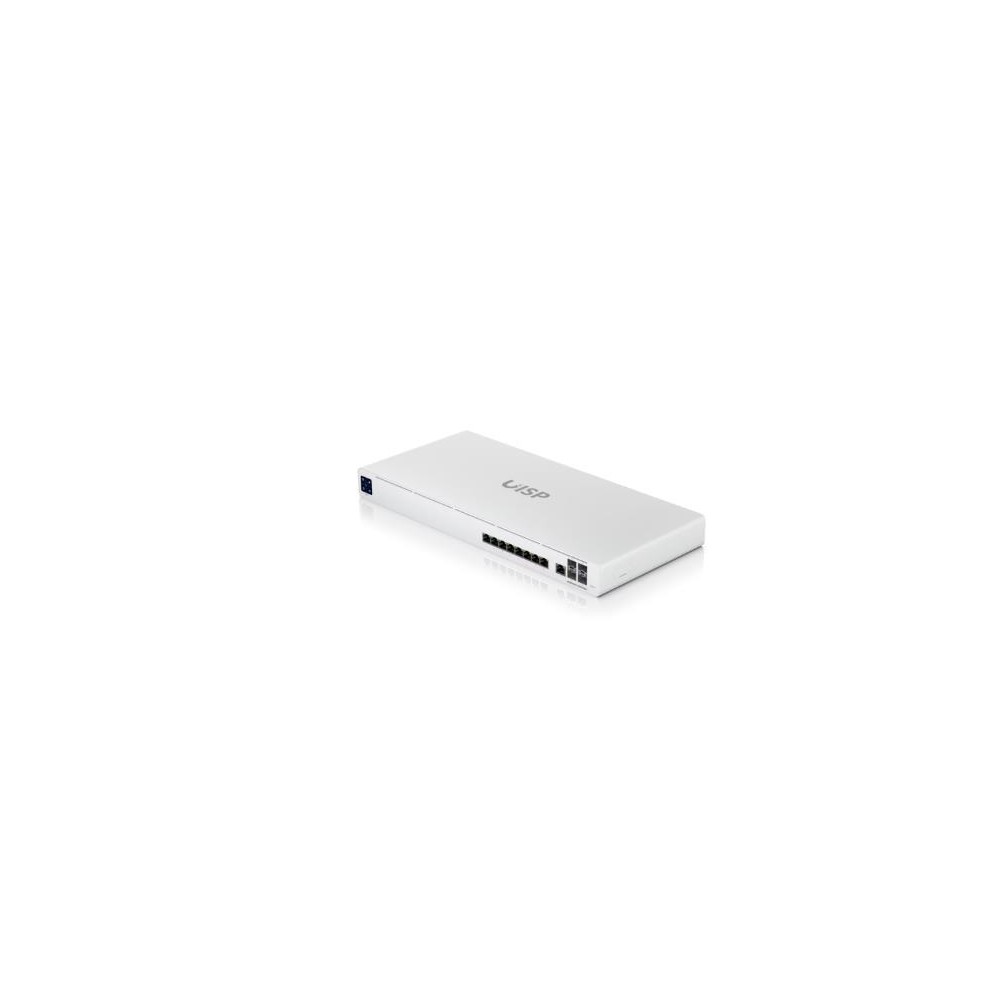

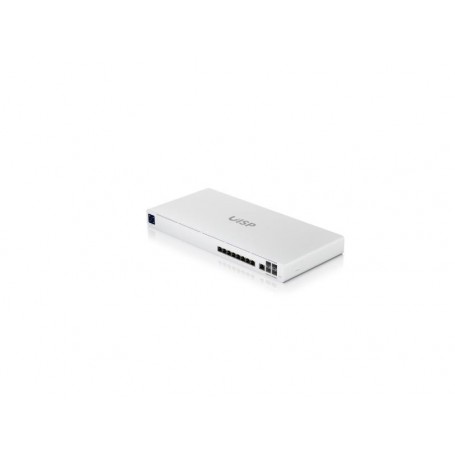

The Ubiquiti UISP-R-Pro, also known as the UISP Router Pro, is a high-capacity router designed for ISP networking applications. It combines eight Gigabit Ethernet LAN ports, one Gigabit Ethernet WAN port, and four 1/10G SFP+ interfaces in a single platform for Ethernet and fiber network connectivity.
The router uses a quad-core ARM Cortex-A57 processor running at 1.7 GHz, 4 GB of DDR4 memory, and 16 GB of onboard eMMC storage. Management is provided through the UISP platform, with Ubiquiti specifying UISP version 1.4.5 or later.
Network Interfaces
The UISP-R-Pro provides eight GbE RJ45 LAN ports for Ethernet-connected networks and one GbE RJ45 WAN port for upstream connectivity. Four SFP+ ports support 1/10G connections, allowing the router to interface with compatible fiber or high-speed Ethernet transceivers.
The combination of Gigabit RJ45 interfaces and 1/10G SFP+ ports provides connectivity options for ISP networks where high-speed uplinks and multiple Ethernet connections are required.
Hardware and Management
The router is built around a quad-core ARM Cortex-A57 processor operating at 1.7 GHz, with 4 GB DDR4 system memory and 16 GB eMMC onboard storage. A 1.3-inch touchscreen LCM provides local device information and status visibility.
Ethernet is used as the management interface, while the router is designed for centralized management through the UISP application. Ubiquiti specifies UISP version 1.4.5 and later for this model.
Power and Deployment
The UISP-R-Pro has an internal 60W AC/DC power supply and accepts 100–240V AC input at 50/60 Hz. It also provides a 27V DC, 2.2A Power TransPort input for an alternative or redundant DC power connection.
Maximum power consumption is specified at 50W. The router operates from -10°C to 50°C and supports 5% to 95% non-condensing operating humidity.
Key Features
- Eight GbE RJ45 LAN ports and one GbE RJ45 WAN port
- Four 1/10G SFP+ ports for high-speed network connectivity
- Quad-core ARM Cortex-A57 processor at 1.7 GHz with 4 GB DDR4 memory
- 16 GB eMMC onboard storage and 1.3-inch touchscreen LCM
- AC power with an additional 27V DC Power TransPort input
Applications
The UISP-R-Pro is intended for ISP network deployments requiring a combination of Gigabit Ethernet access and 1/10G SFP+ connectivity. It can be deployed where multiple Ethernet interfaces and high-speed fiber or SFP+ uplinks need to be consolidated into an ISP routing platform.
DC Supplies Product Note
For deployment planning, note that the UISP-R-Pro provides four 1/10G SFP+ ports in addition to its nine RJ45 interfaces. Its power design also includes both an internal 100–240V AC supply and a 27V DC Power TransPort input, which should be considered when planning power availability and redundancy requirements.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UISP-R-Pro |
| Product Type | ISP Router |
| Series | UISP |
| Processor | Quad-core ARM Cortex-A57 at 1.7 GHz |
| Memory | 4 GB DDR4 |
| Onboard Storage | 16 GB eMMC |
| LAN Interfaces | 8 x GbE RJ45 |
| WAN Interface | 1 x GbE RJ45 |
| SFP+ Interfaces | 4 x 1/10G SFP+ |
| Management Interface | Ethernet |
| Management Platform | UISP, version 1.4.5 and later |
| Local Display | 1.3-inch touchscreen LCM |
| AC Power Input | 100–240V AC, 1.5A maximum, 50/60 Hz |
| DC Power Input | 27V DC, 2.2A Power TransPort |
| Power Supply | Internal AC/DC, 60W |
| Maximum Power Consumption | 50W |
| ESD/EMP Protection | Air: ±15 kV; Contact: ±8 kV |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7 in) |
| Weight | 3.3 kg (7.2 lb) |
| Enclosure Materials | SGCC steel, polycarbonate/ABS |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
How many Ethernet ports does the UISP-R-Pro have?
The router has eight GbE RJ45 LAN ports and one GbE RJ45 WAN port, for a total of nine RJ45 Ethernet interfaces.
Does the UISP-R-Pro support 10 Gigabit connectivity?
Yes. It has four SFP+ ports supporting 1/10G connectivity. Compatible SFP/SFP+ transceivers and cabling are required according to the intended network connection.
What processor and memory does the UISP-R-Pro use?
The router uses a quad-core ARM Cortex-A57 processor at 1.7 GHz, 4 GB of DDR4 memory, and 16 GB of onboard eMMC storage.
What power inputs are available?
The router has a universal 100–240V AC input and a separate 27V DC, 2.2A Power TransPort input. The internal AC/DC power supply is rated at 60W, while maximum power consumption is specified as 50W.
What software is used to manage the UISP-R-Pro?
The UISP-R-Pro is managed through the UISP platform. Ubiquiti specifies UISP version 1.4.5 and later for this model.
