Overview

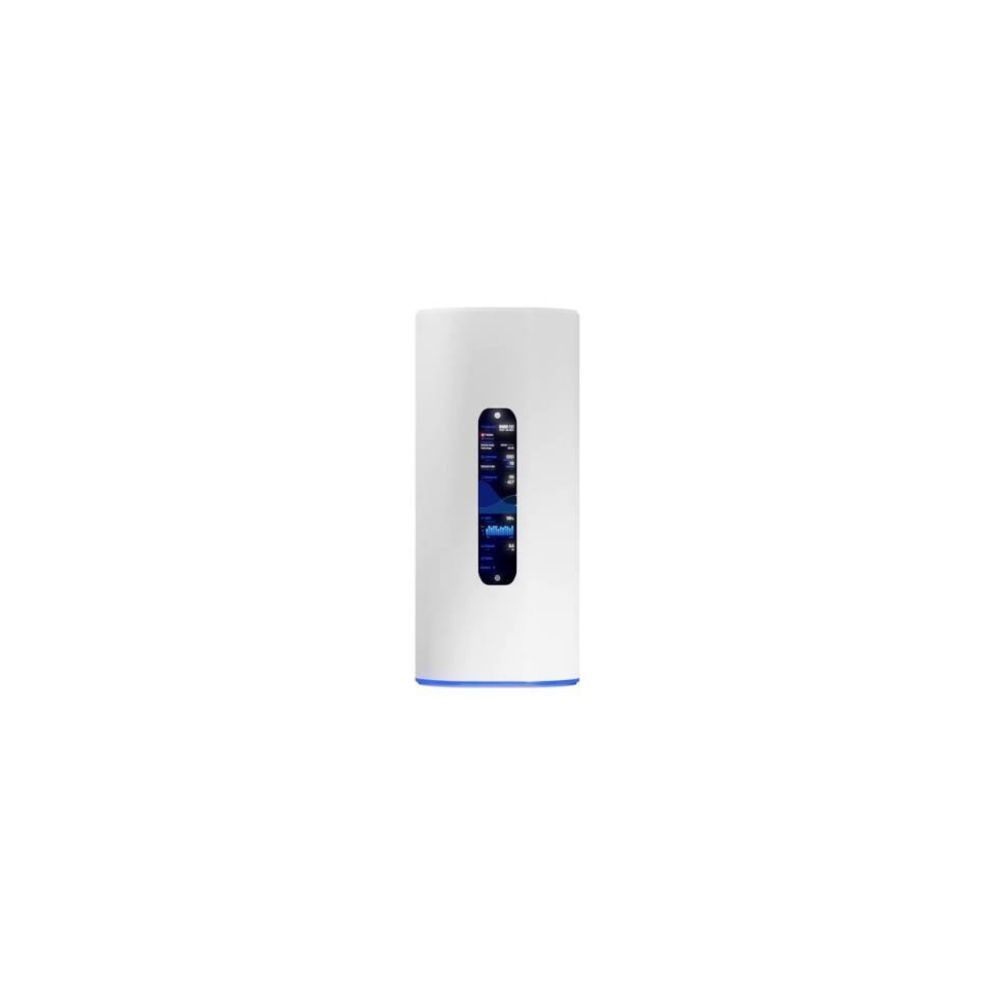

The Ubiquiti UDR-5G-Max UniFi Dream Router 5G Max is a desktop Cloud Gateway combining 5G cellular connectivity, WiFi 7, routing, firewall, switching, UniFi application hosting, and NVR storage in one device. It supports up to 30+ managed UniFi devices and 300+ simultaneous connected users, with up to 2.3Gbps IDS/IPS throughput.
The gateway provides a 10G SFP+ interface, four 2.5GbE RJ45 ports including one PoE port, integrated tri-band WiFi 7, and 5G Sub-6 cellular connectivity. A pre-installed 64GB microSD card provides storage for NVR functionality.
5G Cellular Connectivity
The UDR-5G-Max supports 5G NR Sub-6 and 4G LTE connectivity across a broad range of cellular bands. Ubiquiti specifies peak 5G NSA speeds of up to 3.4Gbps downlink and 560Mbps uplink, while 5G SA is specified at up to 1.8Gbps downlink and 650Mbps uplink. Actual cellular performance depends on carrier service, signal conditions, network configuration, and local availability.
The device supports Nano-SIM connectivity and eSIM functionality according to the applicable configuration. Ubiquiti's current US product information identifies AT&T and T-Mobile certification, with carrier and plan restrictions applying.
WiFi 7
Integrated WiFi 7 provides simultaneous 2x2 MU-MIMO radios on 2.4GHz, 5GHz, and 6GHz. The 6GHz radio supports channel bandwidths up to 320MHz, with a maximum supported data rate of 5.7Gbps. The gateway can provide wireless coverage for an area specified by Ubiquiti at up to 160 m² (1,750 ft²).
Wired Networking
The UDR-5G-Max includes one 10G SFP+ port supporting 10GbE or 1GbE operation and four 2.5GbE RJ45 ports supporting 2.5GbE, 1GbE, and 100MbE. One RJ45 port provides PoE output with a total PoE budget of 15.4W.
UniFi Applications and Security
The gateway runs the UniFi application suite, including Network, Protect, Access, Talk, and Connect. Its security features include a stateful firewall, application-aware Layer 7 firewall, DPI and traffic identification, zone-based advanced filtering, and intrusion prevention and detection.
The integrated 64GB microSD card provides NVR storage for supported UniFi Protect deployments. Ubiquiti specifies management capacity for 30+ UniFi devices and camera capacity of up to 5 HD, 2 2K, and 1 4K camera according to its current technical specifications.
Key Features
- 5G NR Sub-6 cellular connectivity with peak NSA downlink of 3.4Gbps
- Tri-band WiFi 7 with 2x2 MU-MIMO on 2.4GHz, 5GHz, and 6GHz
- 10G SFP+ uplink plus four 2.5GbE RJ45 ports with one PoE output
- Integrated 64GB microSD storage for UniFi Protect NVR functionality
- 2.3Gbps IDS/IPS throughput with integrated UniFi security and application management
Applications
- 5G-primary or cellular-connected UniFi networks
- Small offices and distributed business locations
- Whole-network deployments requiring integrated WiFi 7 and routing
- UniFi Protect deployments requiring integrated local NVR storage
- Networks requiring 10G SFP+ and 2.5GbE connectivity in a desktop gateway
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UDR-5G-Max |
|---|
| Product Type | Desktop Cloud Gateway / 5G Router |
|---|
| Product Family | UniFi Dream Router 5G Max |
|---|
| Form Factor | Desktop |
|---|
| Managed UniFi Devices | 30+ |
|---|
| Simultaneous Users | 300+ |
|---|
| IDS/IPS Throughput | 2.3Gbps |
|---|
| WAN Port Count | 4 maximum |
|---|
| Default WAN Ports | 1x 10G SFP+, 1x 2.5GbE RJ45 |
|---|
| RJ45 Ports | 4x 2.5GbE, 1 with PoE |
|---|
| SFP+ Port | 1x 10G/1G SFP+ |
|---|
| PoE Output | 15.4W total |
|---|
| PoE Voltage Range | 44–57V |
|---|
| WiFi Standard | WiFi 7 (802.11be) |
|---|
| 6GHz Radio | 2x2 DL/UL MU-MIMO |
|---|
| 5GHz Radio | 2x2 DL/UL MU-MIMO |
|---|
| 2.4GHz Radio | 2x2 DL/UL MU-MIMO |
|---|
| Maximum WiFi Data Rate | Up to 5.7Gbps |
|---|
| 6GHz Antenna Gain | 8dBi |
|---|
| 5GHz Antenna Gain | 5dBi |
|---|
| 2.4GHz Antenna Gain | 4dBi |
|---|
| 5G Technology | 5G NR Sub-6 |
|---|
| 5G NSA Peak Speed | 3.4Gbps downlink / 560Mbps uplink |
|---|
| 5G SA Peak Speed | 1.8Gbps downlink / 650Mbps uplink |
|---|
| 4G LTE Peak Speed | 1.6Gbps downlink / 210Mbps uplink |
|---|
| SIM | 2x Nano-SIM; Nano-SIM or eSIM support according to configuration |
|---|
| NVR Storage | Pre-installed 64GB microSD |
|---|
| Expansion Storage | MicroSD card slot |
|---|
| Processor | Quad-core ARM Cortex-A53, 1.5GHz |
|---|
| System Memory | 3GB |
|---|
| Maximum Power Consumption | 34.5W excluding PoE output |
|---|
| Power Method | DC jack, 54V DC / 1.1A |
|---|
| Power Supply | 54V DC / 1.1A adapter included |
|---|
| Supported AC Input | 100–240V AC |
|---|
| Display | 4.7-inch touchscreen |
|---|
| Coverage Area | 160 m² (1,750 ft²) |
|---|
| Dimensions | 110 x 110 x 250mm |
|---|
| Weight | 1.4kg |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Operating Temperature | 0 to 40°C |
|---|
| Operating Humidity | 5–95% noncondensing |
|---|
| Management | Ethernet, Bluetooth |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the UDR-5G-Max?
The UDR-5G-Max is a desktop UniFi Cloud Gateway combining 5G cellular connectivity, WiFi 7, routing, firewall, switching, UniFi application hosting, and NVR storage.
What 5G speeds does it support?
Ubiquiti specifies peak 5G NSA performance of up to 3.4Gbps downlink and 560Mbps uplink, while 5G SA is specified at up to 1.8Gbps downlink and 650Mbps uplink.
