Detailed Specifications

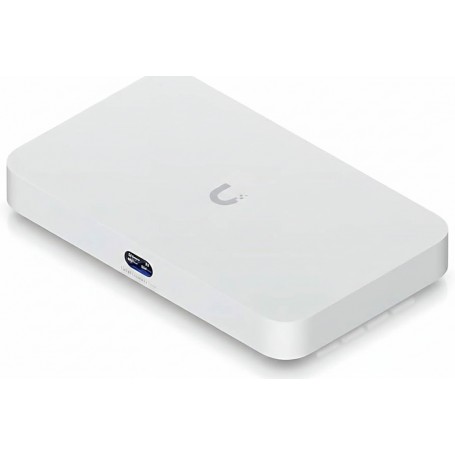

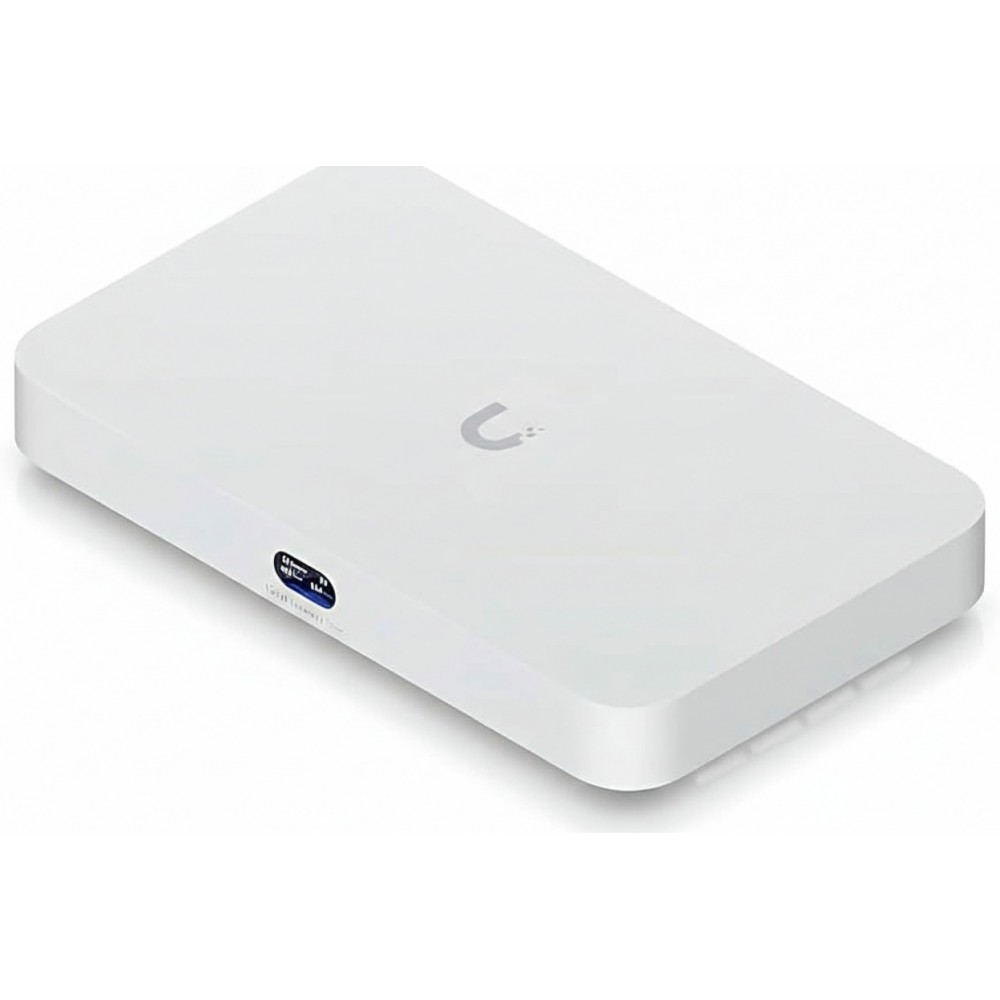

Ubiquiti UCG-FIBER Cloud Gateway Fiber Router
Overview
The Ubiquiti UCG-FIBER is a compact multi-gigabit cloud gateway and router designed for fiber internet and high-throughput network environments. It combines dual 10 GbE SFP+ fiber and 10 GbE RJ45 ports with integrated 2.5 GbE LAN and PoE+ support to deliver routing, switching, and security services. The device includes advanced IDS/IPS, firewall, VPN, SD-WAN capabilities, and supports UniFi OS applications for network, protect, access, talk, and connect management. It also features a selectable NVMe SSD slot for local storage and an LCD status display for system monitoring. This gateway fits edge or branch deployments in enterprises, service provider fiber networks, or advanced home/office networks requiring unified connectivity and security services.
Key Features
• (2) 10 GbE SFP+ and 10 GbE RJ45 ports
• 4× 2.5 GbE LAN with PoE+ support
• Quad-core ARM Cortex-A73 CPU
• Selectable NVMe SSD storage slot
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UCG-FIBER |
| Product Type | Cloud Gateway Fiber Router |
| Processor | Quad-core ARM Cortex-A73, 2.2 GHz |
| Memory | 3 GB DDR4 |
| WAN Interfaces | 1× 10 GbE RJ45, 1× 10 GbE SFP+ |
| LAN Interfaces | 4× 2.5 GbE RJ45 (1× PoE+) |
| Additional LAN | 1× 10 GbE SFP+ |
| PoE | PoE+ 30 W budget |
| NVR Storage | Selectable NVMe SSD (up to 2 TB) |
| IDS/IPS Throughput | ~9.3 Gbps |
| Power Input | 54 V DC, 1.1 A adapter included |
| Max Power Consumption | 29.4 W (excluding PoE) |
| Display | 0.96″ LCM status |
| Dimensions | 212.8 × 127.6 × 30 mm |
| Weight | ~696 g |
| Operating Temp. | 0 °C to 40 °C |
| Management | UniFi OS, Ethernet, Bluetooth |
