Detailed Specifications

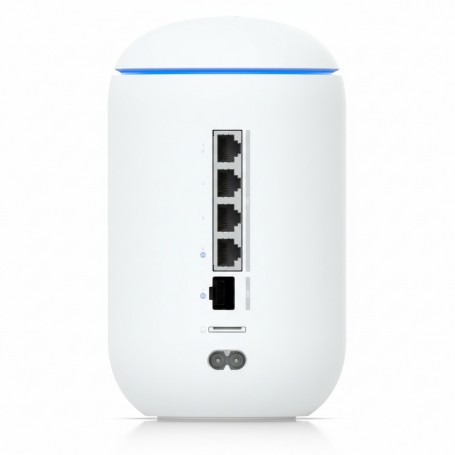

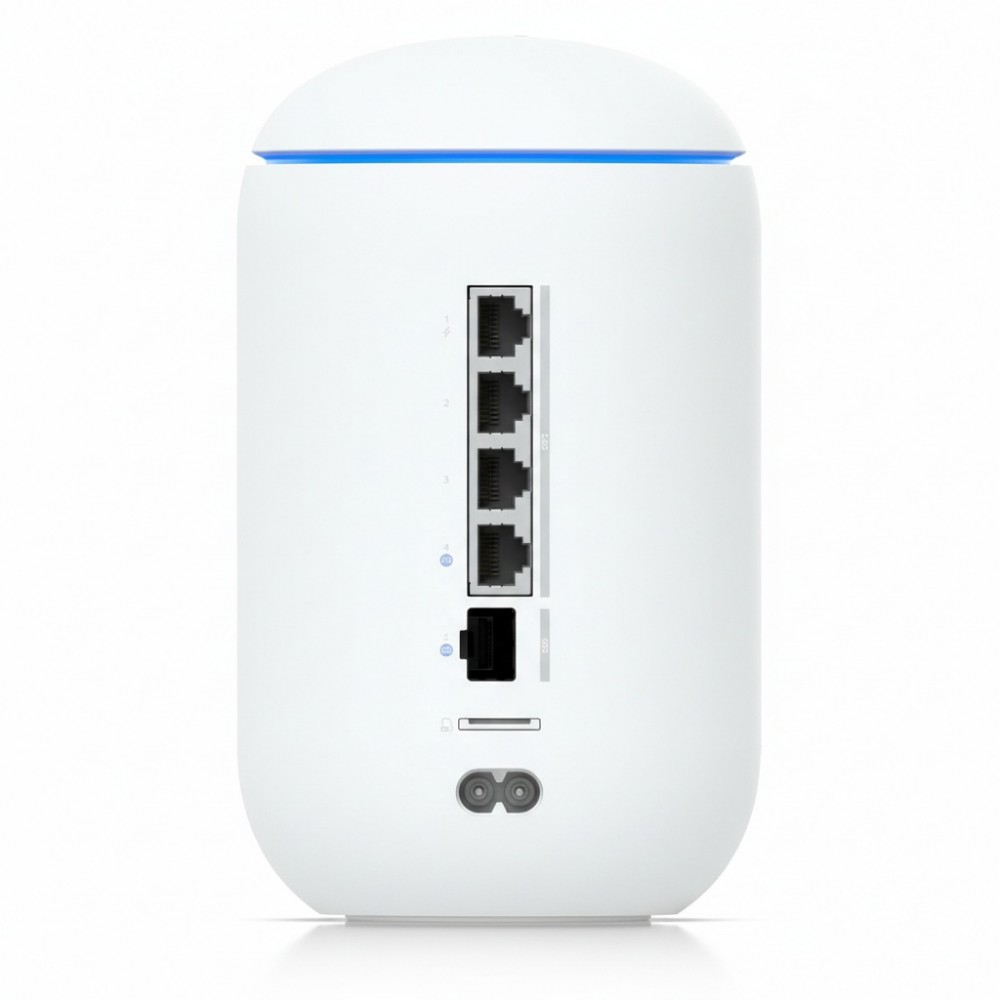

Ubiquiti UDR7-US Wi Fi 7 Dream Router
Overview
The Ubiquiti UDR7-US is a Wi-Fi 7 gateway and router combining high-speed wireless with multi-gigabit wired connectivity for home and small office network deployments. It integrates tri-band Wi-Fi 7 (2.4/5/6 GHz), 10 GbE SFP+ uplink, 2.5 GbE WAN, and 2.5 GbE LAN ports with PoE output, and includes a pre-installed 64 GB microSD for NVR storage and UniFi app management. The unit offers hardware support for IDS/IPS, advanced VLAN routing, and centralized network services under UniFi OS. This desktop gateway fits environments requiring consolidated Wi-Fi, LAN, and PoE device connectivity with unified control.
Key Features
• Tri-band Wi-Fi 7 (802.11be)
• 10 GbE SFP+ WAN uplink port
• 3× 2.5 GbE LAN, 1 PoE-enabled
• Pre-installed 64 GB microSD storage
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UDR7-US |
| Product Type | Wi-Fi 7 Router / Gateway |
| Wi-Fi Standard | Tri-band Wi-Fi 7 (802.11be) |
| Wireless Throughput | Up to 11 Gbps total |
| Antenna Configuration | Internal, MU-MIMO 2×2 per band |
| Ethernet Ports | 1× 10 GbE SFP+ WAN, 1× 2.5 GbE WAN, 3× 2.5 GbE LAN (1 with PoE) |
| PoE Output | 15.4 W max per PoE-enabled LAN port |
| Memory | 3 GB RAM |
| Storage | 64 GB microSD pre-installed |
| Processor | Quad-core ARM Cortex-A53, 1.5 GHz |
| Display | 0.96″ status LCD |
| Power Supply | Internal AC/DC, 50 W |
| Operating Temp. | -10 °C to 40 °C |
| Dimensions | 184.1 × 110 mm |
| Weight | 1.1 kg |
