Teltonika OTD500100000 Outdoor 5G Router View larger

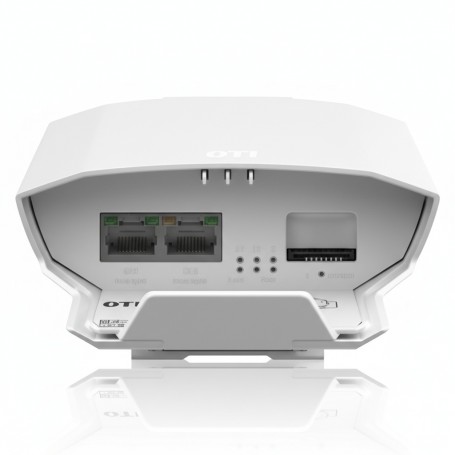

Teltonika OTD500100000 Outdoor 5G Router

OTD500100000

New

Outdoor 5G IP55 Cellular Router
×




Detailed Specifications

Teltonika OTD500100000 Outdoor 5G Router

Overview

The Teltonika OTD500100000 is an outdoor cellular router engineered for resilient 5G connectivity in exposed, network-critical environments. It provides 5G NR with LTE Cat 19 and 3G fallback, dual SIM with eSIM capability, and PoE-powered operation for simplified installation without local power. The rugged IP55 housing and dual Gigabit Ethernet interfaces make it suitable for fixed wireless access, surveillance backhaul, industrial IoT, and remote WAN links. It runs RutOS with built-in routing, firewall, and VPN support, and can be monitored centrally via remote management systems.

Key Features

• 5G NR Sub-6 GHz with LTE Cat 19 fallback
• IP55 outdoor-rated enclosure
• PoE-in and PoE-out ports
• Dual SIM with eSIM support

Technical Specifications

SpecificationDetails
Brand Teltonika
Part Number OTD500100000
Product Type Outdoor 5G Cellular Router
Mobile Network 5G NR Sub-6 GHz SA/NSA with LTE Cat 19 & 3G
Peak Throughput Up to 3.4 Gbps DL, 900 Mbps UL (5G)
SIM Slots 2× Mini SIM (2FF), eSIM support
Ethernet Ports 2× 10/100/1000 Mbps RJ45
Power PoE-in 42.5–57 V DC; PoE-out 802.3af (max 15 W)
Antennas 4× Internal
Memory 256 MB RAM, 16 MB Flash
Operating System RutOS
Housing IP55 Outdoor-rated
Dimensions 235 × 110 × 49.3 mm (9.25 × 4.33 × 1.94 in)
Weight 385 g (0.85 lbs)
Operating Temp. −40 °C to 55 °C
