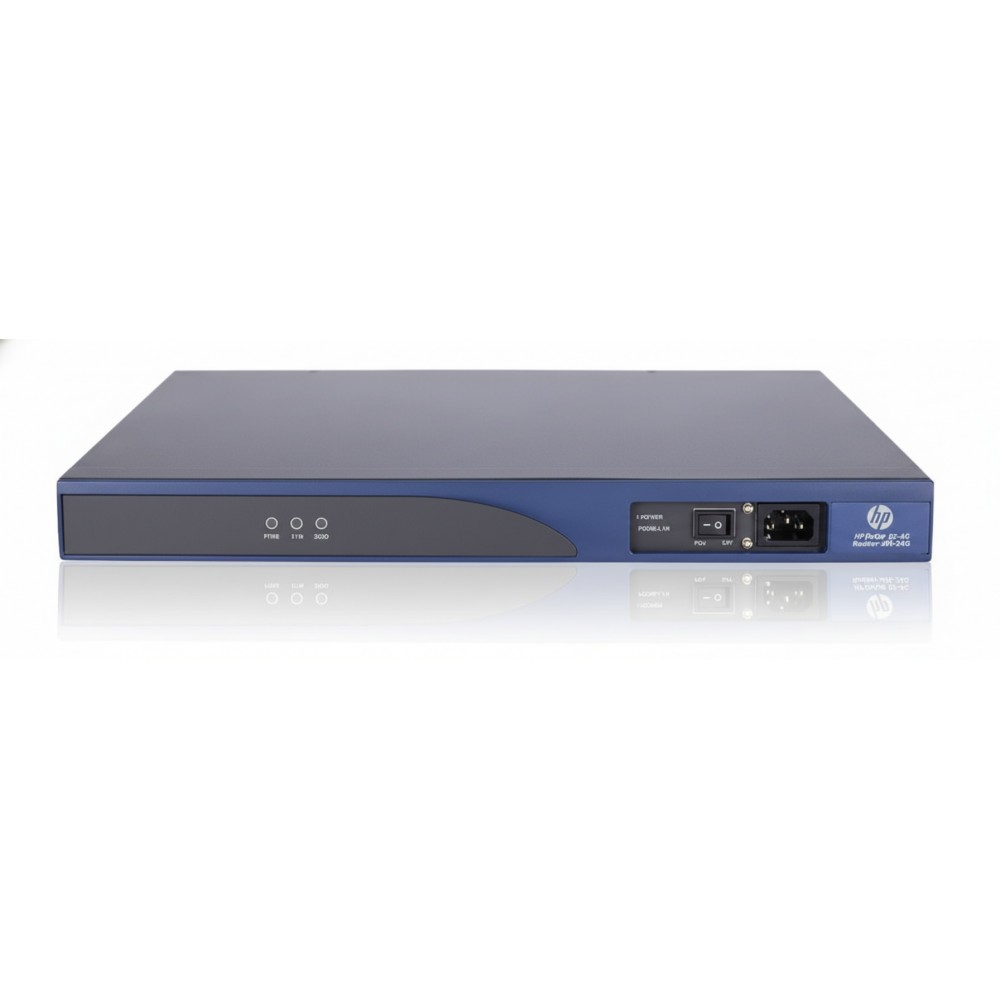

HP JF816A MSR30-10 Rack Mountable Router View larger

HPE JF816A MSR30-10 Router

New

Modular multiservice router (MSR)
×




  • New

Detailed Specifications

HPE JF816A MSR30‑10 2‑port 10/100 Modular Router

Overview

The HPE JF816A (MSR30‑10) is a 1U rack-mount router designed for branch or regional offices. It supports two 10/100Base‑TX RJ‑45 interfaces and offers modular expandability via Smart Interface Cards (SICs) and Multifunction Interface Modules (MIMs). The device supports enterprise routing protocols like OSPF, BGP, and MPLS, embedded VPN/firewall capabilities, and high‑availability options with redundant power. It runs on HPE’s Comware OS, providing centralized management and advanced QoS.

Key Features

  • Two 10/100 Mb/s RJ‑45 WAN ports

  • Modular design with 2 SIC slots + 1 MIM slot

  • Enterprise routing: OSPF, BGP, RIP, IS‑IS, static IPv4/IPv6

  • Built-in firewall and VPN for secure WAN connectivity

  • Redundant power support for high uptime

Technical Specifications

SpecificationDetails
Brand HPE
Part Number JF816A
Product Type Modular Enterprise Router
WAN Ports 2 × 10/100Base‑TX (RJ-45)
Expansion Slots 2 SIC + 1 MIM
Routing Protocols OSPF, BGP‑4, IS‑IS, RIP-1/2, IPv4/IPv6 Static
Security Features Firewall, VPN
Management Comware OS, SNMP, CLI, HTTP, SSH
Processor 333 MHz RISC core
Memory 256 MB DDR SDRAM, 256 MB Flash
Power Supply Internal AC (100–240 V)
Form Factor 1U rack-mountable
Throughput Up to ~220 Kpps (64-byte packets)
Operating Temperature 0 °C to 40 °C
Weight ~10.58 lb
