Detailed Specifications

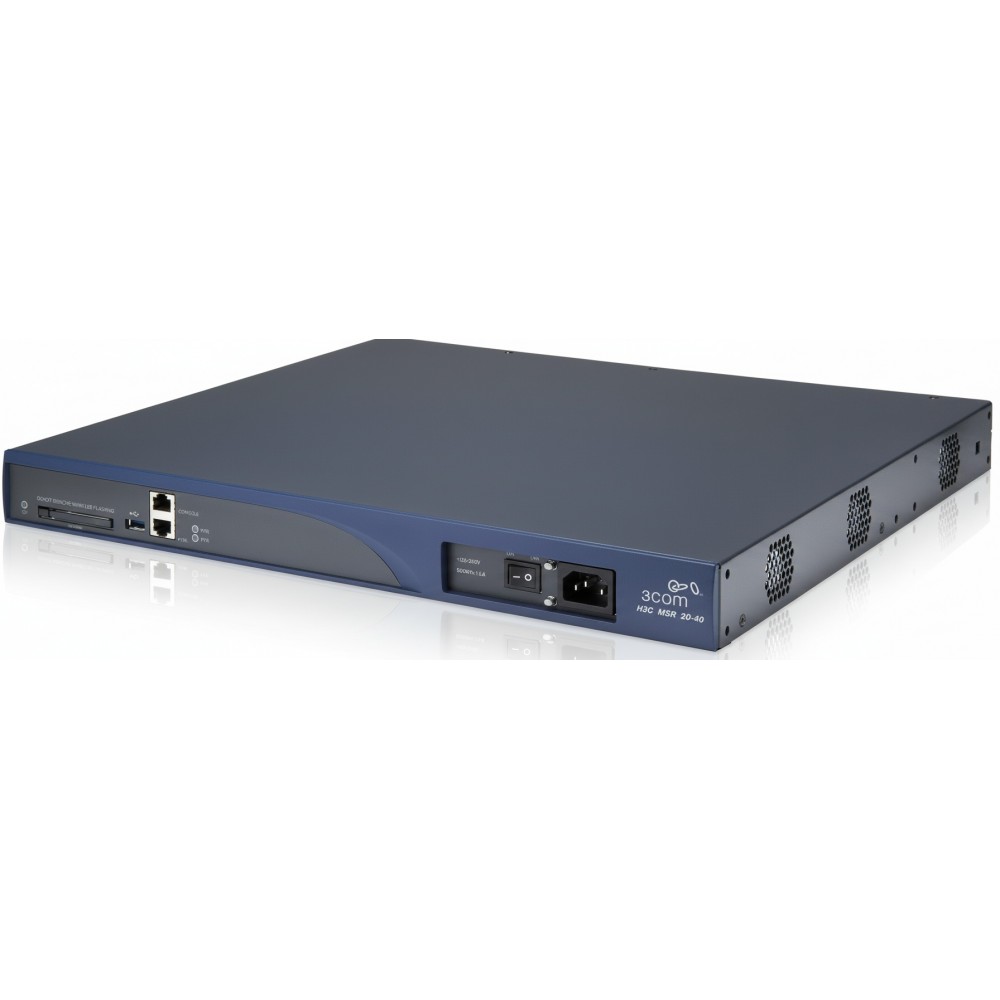

HPE JF228A MSR20-40 Multi-Service Router
Overview
The HPE JF228A (MSR20-40) is a compact 1U rack-mount multiservice router built for branch or small-to-medium business environments. It supports modular expansion with MIM (Multifunction Interface Module) slots, enabling flexible WAN, LAN, and security services. The router handles IPv4 and IPv6 routing, MPLS, VPN, and other enterprise services in a single chassis. It integrates with HPE's FlexNetwork architecture for consistent policy and centralized management.
Key Features
1U modular router with expansion slots for interface modules
Up to 180 Kpps forwarding capacity for robust performance
Routing support for OSPF, BGP-4, RIP, IS-IS, static IPv4/IPv6
Built-in security: VPN, firewall, encryption, NAC support
Quality of Service (QoS), NAT, VLANs, and traffic shaping for flexible traffic management
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | JF228A |
| Product Type | Multiservice Router |
| Form Factor | 1U Rack-Mount Modular |
| Processor | 400 MHz |
| RAM | 256 MB DDR SDRAM |
| Flash Memory | 256 MB |
| Maximum Forwarding Capacity | ~180,000 packets per second (Kpps) |
| Supported Routing Protocols | OSPF, BGP-4, IS-IS, RIP-1/2, RIPng, Static IPv4 / IPv6 |
| Security Features | VPN, Firewall, NAT, ACLs |
| Management Interfaces | CLI, SNMP, HTTP, SSH |
| Interface Slots | Multiple MIM slots (for modular interfaces) |
| Power Supply | Internal, non-hot swap (standard) |
