Detailed Specifications

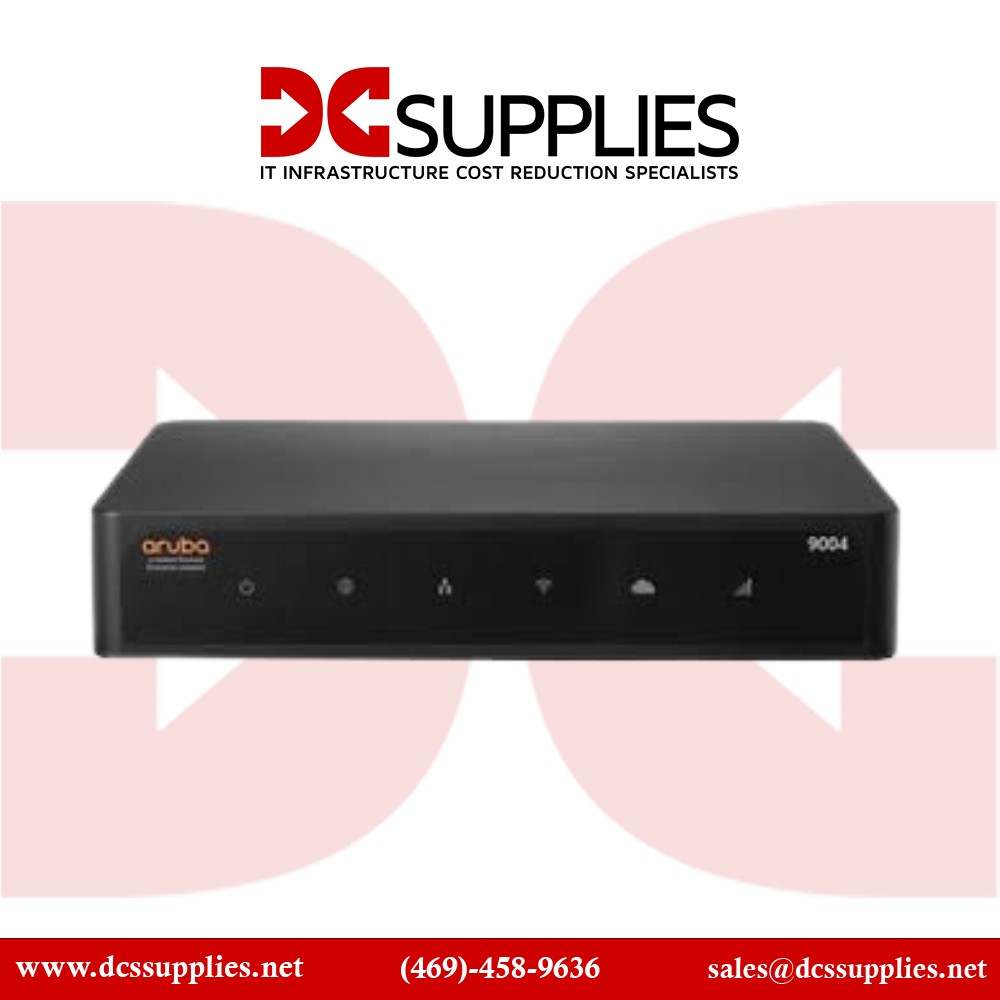

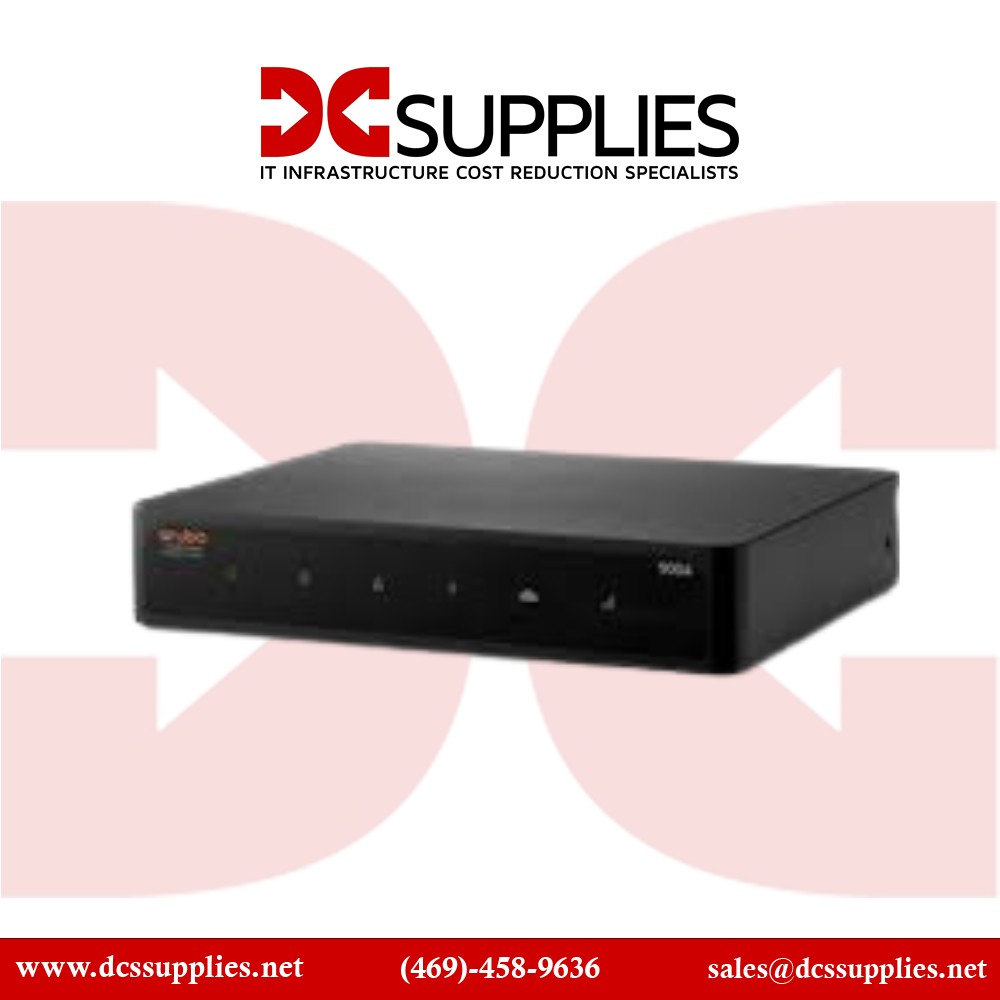

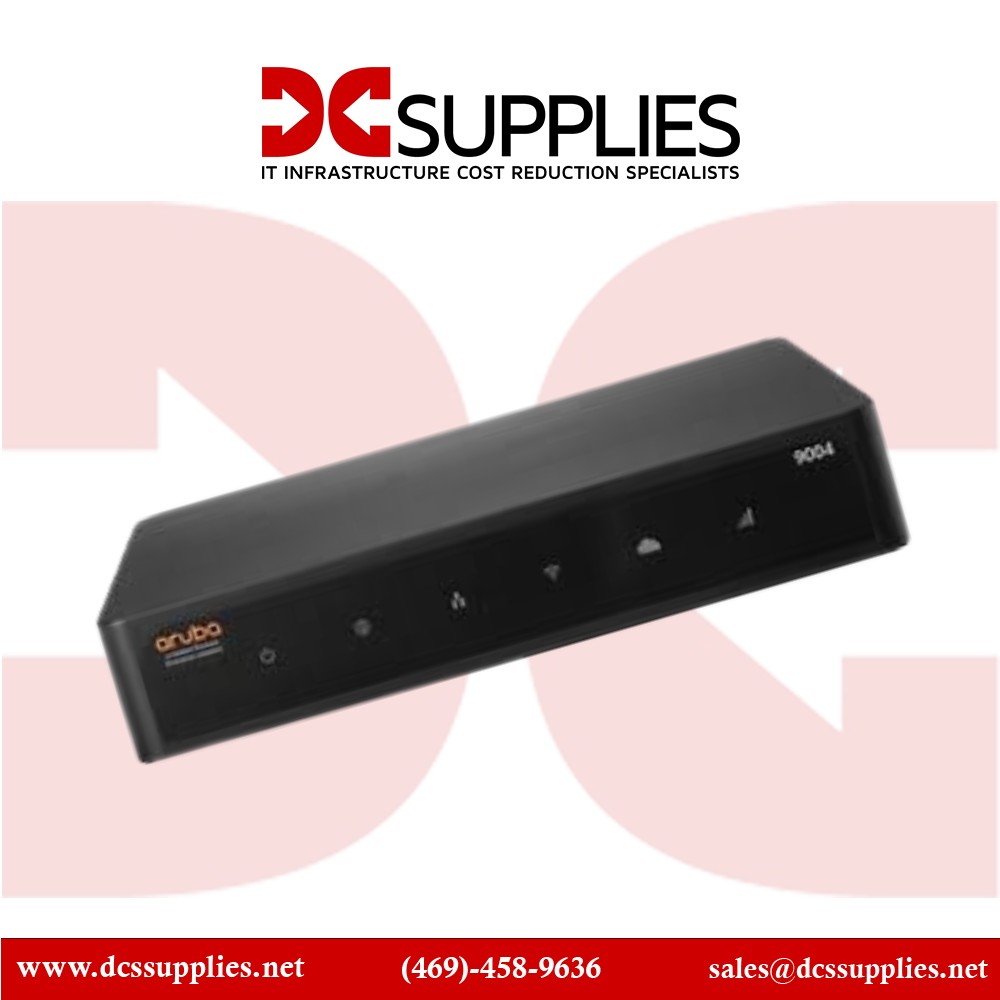

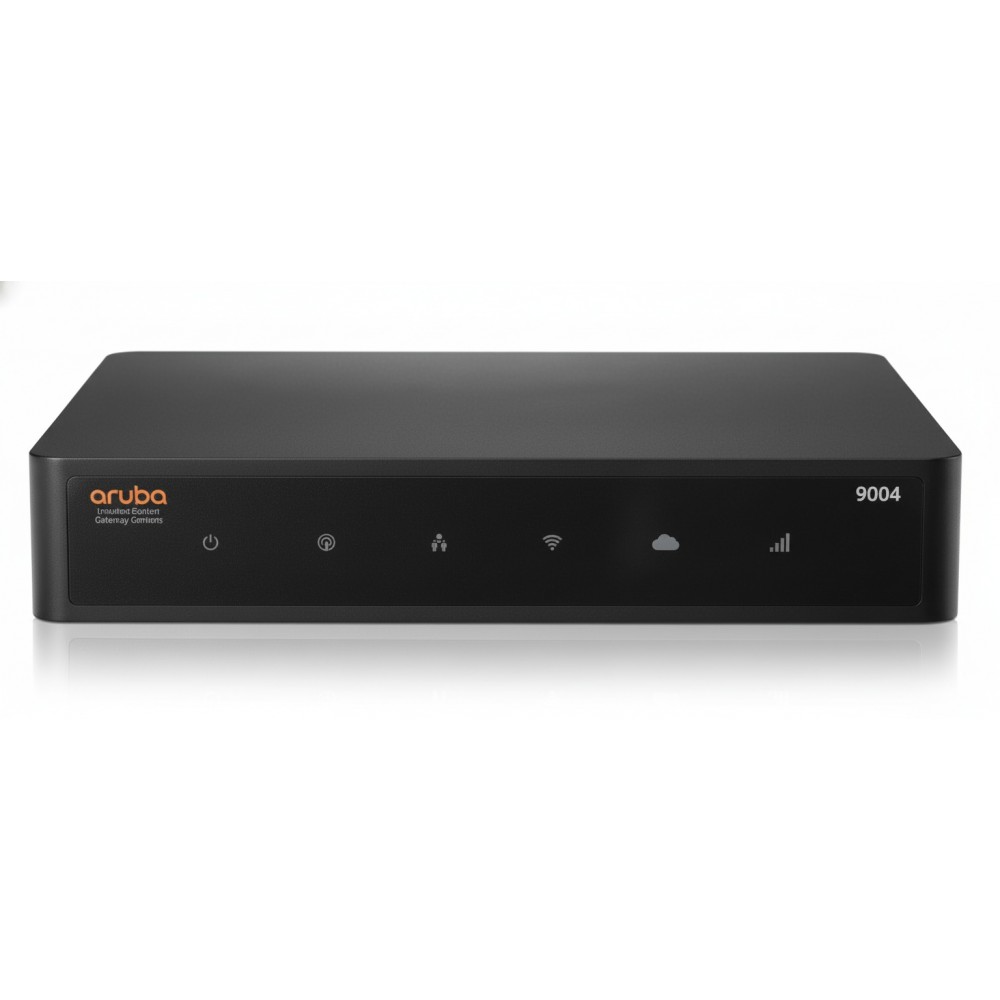

HPE Aruba R1B20-61001 9004 Branch Gateway
Overview
The HPE Aruba R1B20-61001 is a compact 1-rack-unit branch gateway platform designed for small offices or distributed enterprise sites. It provides four Gigabit Ethernet RJ-45 ports for LAN/WAN deployments and supports up to 2,048 users and 32 access points in firewall or SD-Branch configurations. With up to 6 Gb/s firewall throughput and advanced services such as role-based segmentation, stateful Layer 4-7 inspection and zero-touch provisioning, it fits at the network edge of distributed enterprises or branch offices. The unit is suitable for 19-inch rack installation with standard airflow characteristics and integrates into the HPE Aruba wired-wireless-SD-Branch ecosystem.
Key Features
Four 10/100/1000BASE-T RJ-45 ports in a rack-mount gateway.
Supports up to ~6 Gb/s firewall throughput with branch services.
Capacity for up to approximately 2,048 clients or 32 access points.
Rack-mount 1U form-factor designed for enterprise branch deployment.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE Aruba |
| Part Number | R1B20-61001 |
| Product Type | Branch Gateway (4-port Gigabit RJ-45) |
| Built-in Ports | 4 × 10/100/1000BASE-T RJ-45 |
| Maximum Users / Clients | Up to ~2,048 clients |
| Maximum AP Support | Up to ~32 access points |
| Firewall Throughput | Up to ~6 Gb/s |
| Form Factor | 1U rack-mount, 19-inch rack compatible |
| Management Interface | Web UI, CLI, cloud-managed via Aruba Central |
| SD-Branch Capabilities | Role-based segmentation, stateful L4-L7 firewall |
| Operating Temperature Range | Typical branch environment (0 °C to ~40 °C) |
| Weight | Approx. ~17 lb (~7.7 kg) |
| Dimensions (W×D×H) | ~17.3″ × ~14.1″ × ~1.7″ |
| Power Input | ~100-240 V AC, internal power supply |
| Redundancy / HA | Optional clustering and hot-swap power support |
