Detailed Specifications

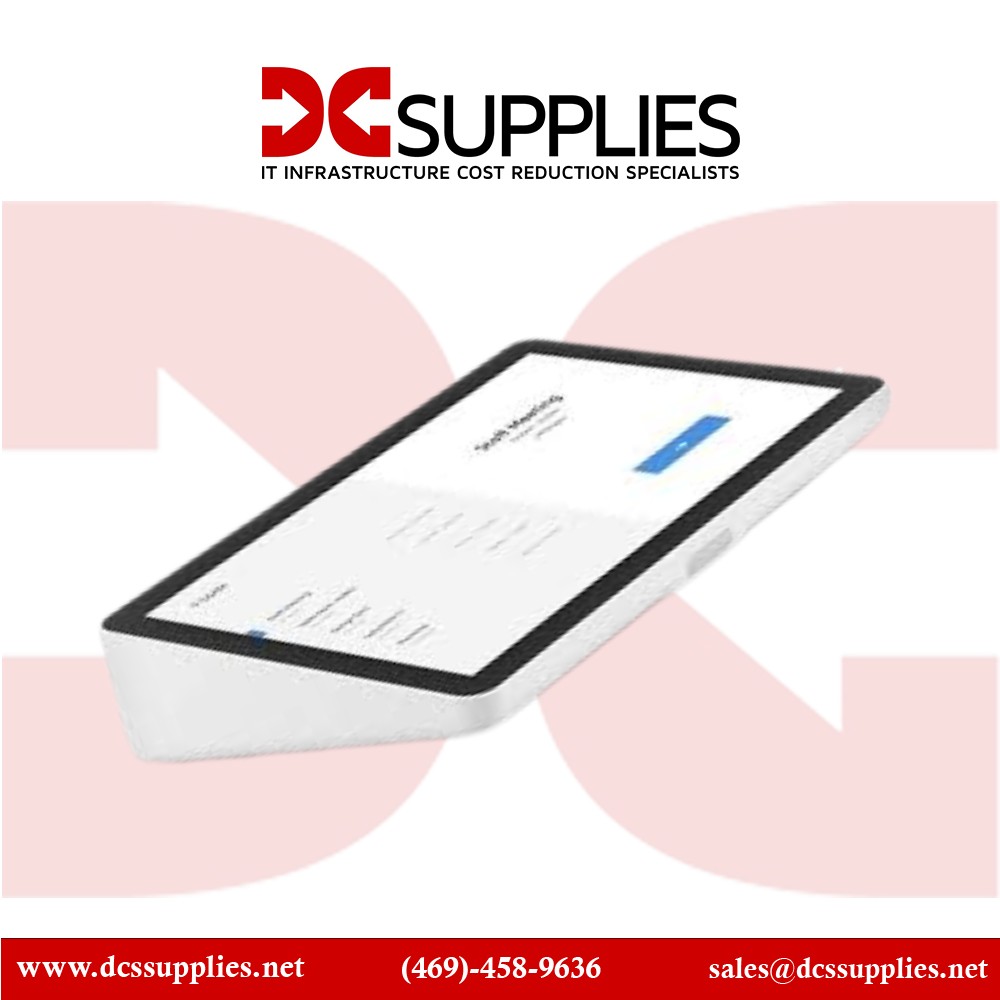

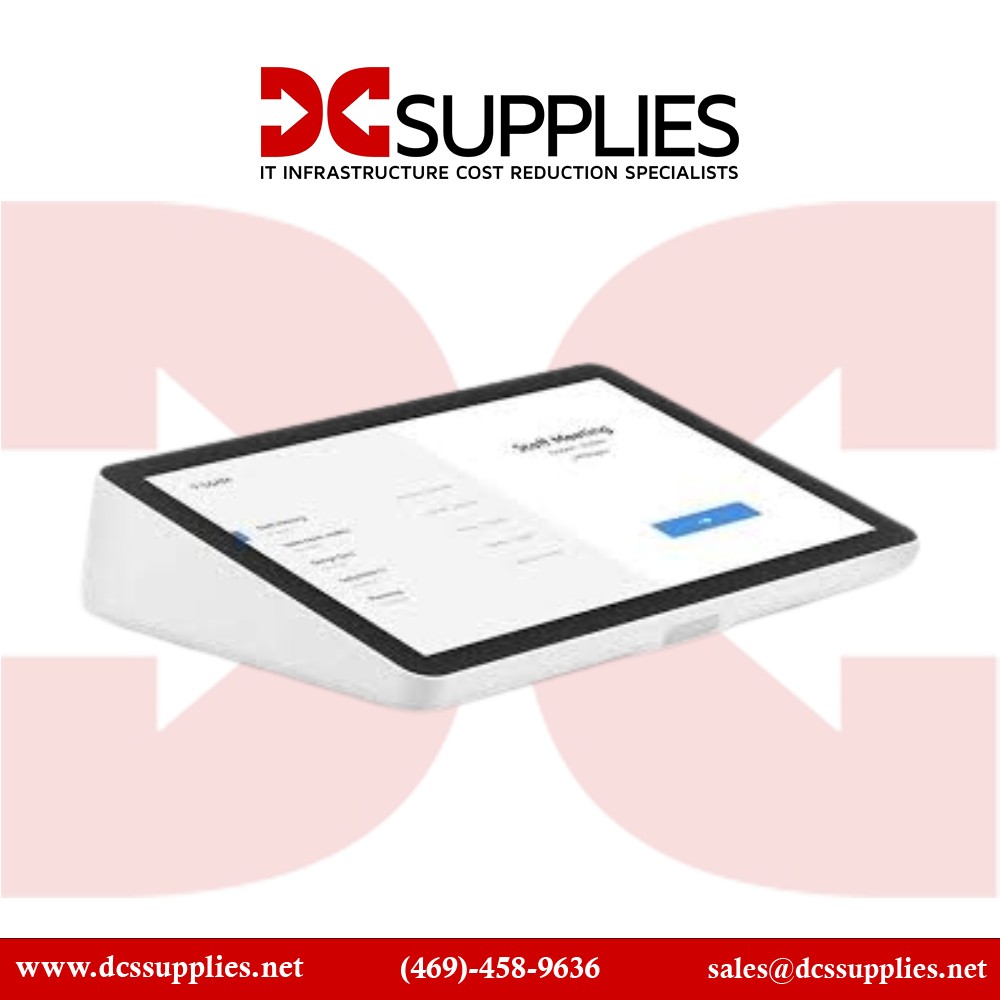

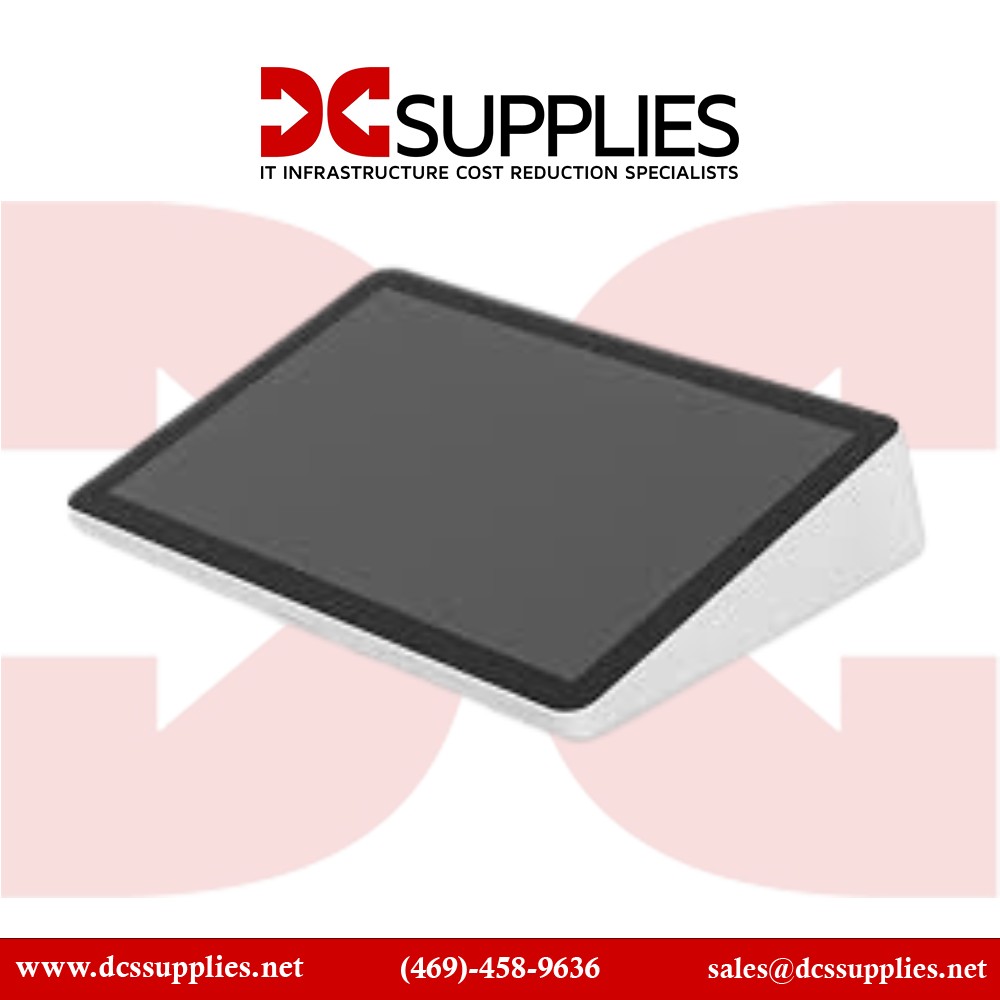

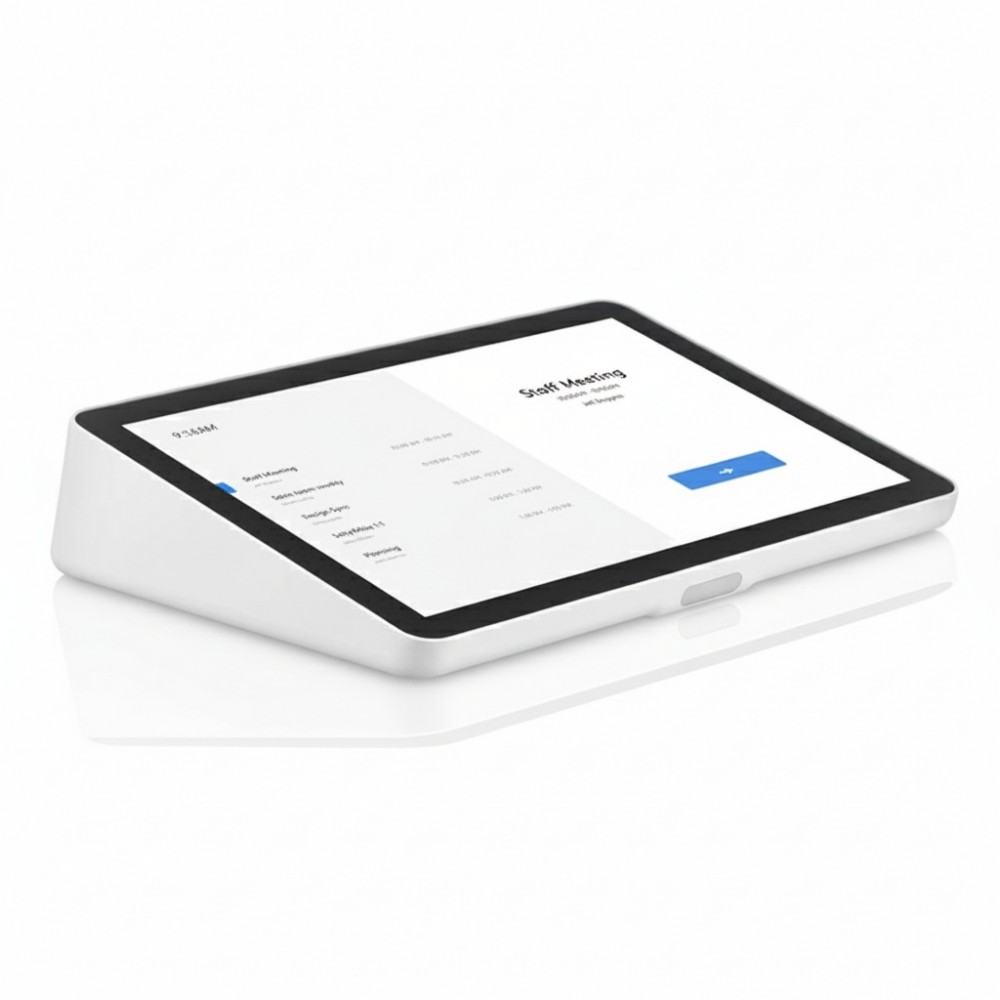

Logitech 952-000088 – Tap IP Touch Controller
Overview :
The Logitech Tap IP (part number 952-000088) is a network‑connected touch controller designed for meeting rooms and collaboration spaces, intended for use by AV/IT engineers to simplify room‑system operation. It features a 10.1‑inch capacitive touchscreen with a 14° angled low‑profile housing and can be powered via PoE (Power over Ethernet) to reduce cabling complexity. It is suitable for deployment in small to medium conference rooms, huddle spaces or edge meeting zones. The Tap IP integrates with major video‑conferencing platforms and room systems, and supports centralized management via Logitech Sync or compatible device‑management consoles, making it practical for enterprise roll‑outs.
Key Features :
10.1″ IPS‑type touch display, 1280×800 resolution
Single‑cable PoE (IEEE 802.3af Type 1) for power and data
Built‑in motion sensor and ambient‑light sensor for readiness
Wi‑Fi (802.11a/b/g/n/ac) and Bluetooth 5.0 connectivity
Internal cable‑retention system with strain relief and VESA mounting
Specifications :
| Specification | Detail |
|---|
| Brand | Logitech |
| Part Number | 952‑000088 |
| Product Type | Touch controller for meeting rooms |
| Display Size | 10.1 inches diagonal |
| Resolution | 1280 × 800 pixels |
| Touch Technology | Capacitive, 10‑point multi‑touch |
| Brightness | 400 nits |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle | 85° (up/down/left/right) |
| Screen Position Angle | 14° fixed angle |
| Connectivity | Ethernet 10/100 Mbps, Wi‑Fi 802.11a/b/g/n/ac, Bluetooth 5.0 |
| Power | PoE IEEE 802.3af Type 1 Class 3 |
| Dimensions (HxWxD) | 2.21 × 9.69 × 6.74 inches |
| Weight | 2.2 lbs |
| Operating Temp | 0 °C to 40 °C |
