Detailed Specifications

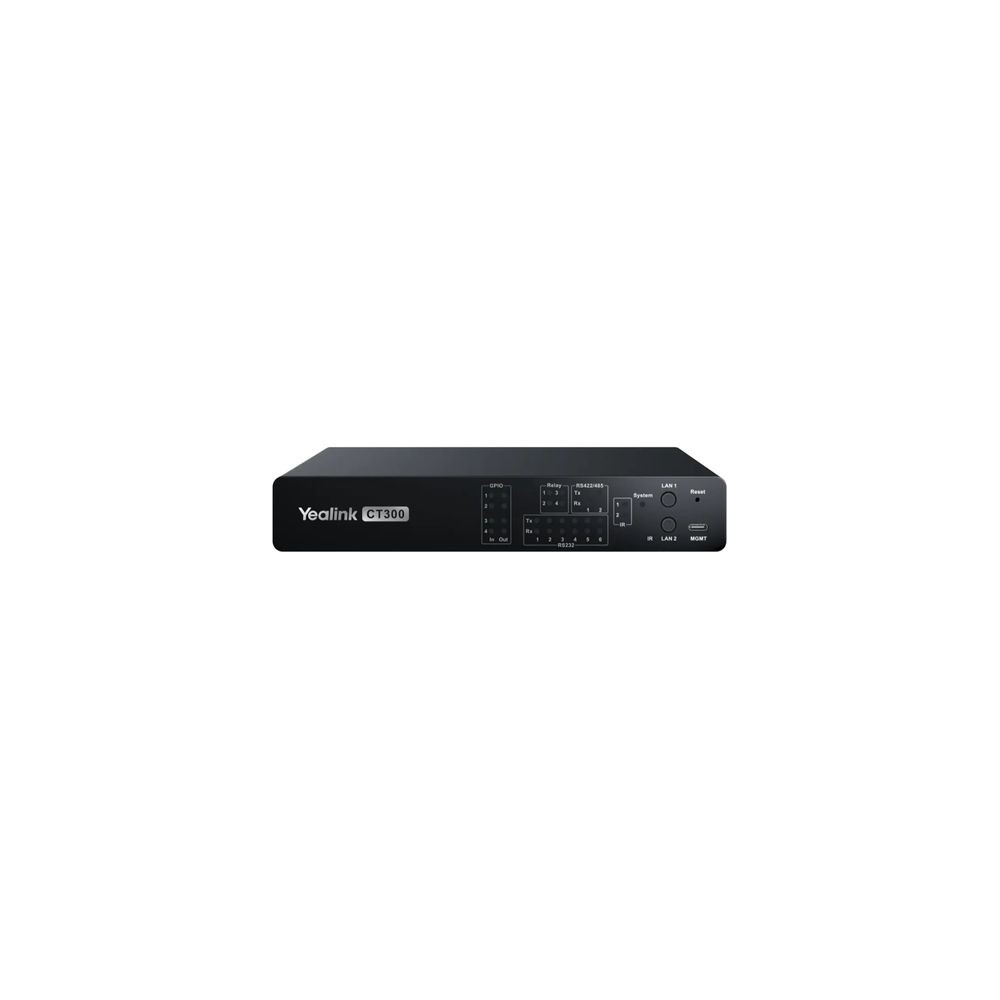

YEALINK 1303169 - Advanced Room Control Processor
Overview
The Yealink CT300 (MPN: 1303169) is an enterprise-grade hardware automation hub and room control processor engineered for comprehensive device orchestration in smart meeting environments. It eliminates terminal programming fragmentation by serving as a centralized hardware bridge between professional AV infrastructure, environmental controls, and computing nodes. The processor handles unified scheduling, automated equipment power tracking, and live monitoring across complex multi-component collaboration rooms.
To isolate localized control commands from enterprise-level administration, the system architecture features dual discrete network interfaces (one dedicated PoE LAN port and one standard LAN port). This hardware topology cleanly segments corporate IT management networks from the high-traffic local area networks (AVLAN) used by connected smart peripherals. The unit provides physical terminal blocks for standard legacy control pathways like RS-232, RS-422, and RS-485 serial buses alongside programmable General Purpose Input/Output (GPIO) pins, relays, and an onboard Infrared (IR) learning eye. Software integration is driven via a robust Open API engine that facilitates native third-party control extensions for lighting, motorized shades, and environmental HVAC elements. Do not deploy this hardware as a standalone network switch or media encoder, as it contains no internal video processing, matrix routing, or streaming codecs.
Key Features
Six dedicated RS-232 serial interfaces manage complex third-party AV arrays.
Dual segregated Ethernet interfaces separate device control from management traffic.
Onboard IR Learning sensor clones legacy hardware remote controls instantly.
Four isolated relay ports trigger motor automation for shades and projection screens.
RESTful Open API framework enables flexible, custom workspace integration paths.
Specifications
| |
| Brand | Yealink |
| Part Number | 1303169 |
| Product Type | Advanced Room Control Processor |
| Model Designation | CT300 Conference Room Device Navigator |
| Network Interfaces | 1 x Gigabit RJ-45 LAN (PoE IEEE 802.3af), 1 x Gigabit RJ-45 LAN |
| Serial Control Array | 6 x Bidirectional RS-232, 2 x Bidirectional RS-422/RS-485 |
| Relay Terminals | 4 x Normally Open (NO) Relays (Rated 30VDC, 2A Max) |
| GPIO Interface | 4 x Programmable Analog/Digital Inputs or Digital Outputs |
| Infrared I/O | 2 x IR Output Ports (34kHz to 42kHz), 1 x Front IR Learning Port |
| Local Management Interface | 1 x USB Type-C MGMT Port |
| Security Architecture | Data Encryption, Secure Boot, Secure Management Protocols |
| Power Infrastructure | PoE (802.3af Class 3) or External DC 12V / 2A Input |
| Power Consumption | Average: 2.5W, Peak: 3.3W, Standby: 1.7W |
| Form Factor Compatibility | 1U Half-Rack Width, Wall-Mount, or Table Surface Mountable |
