Detailed Specifications

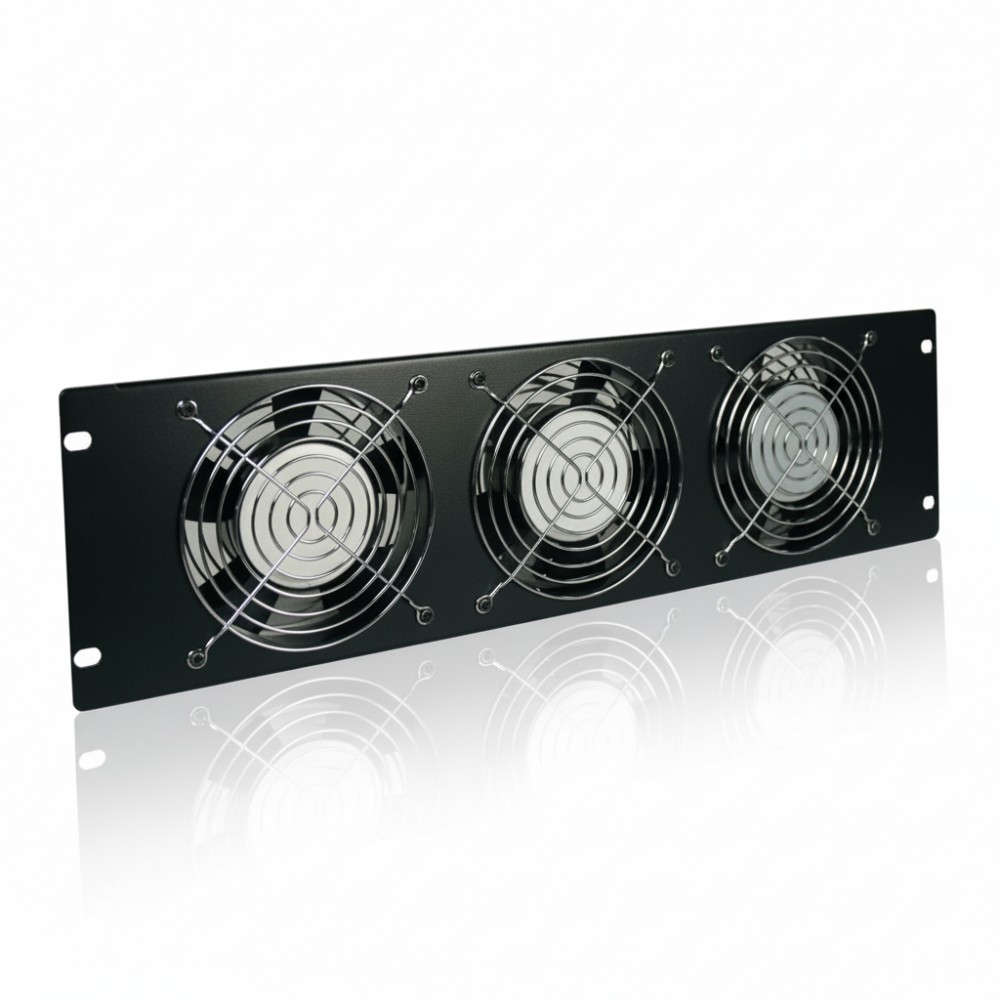

Eaton SRXFAN3U 3 Fan 3U Rack Mount Fan Panel 208,240 V
Overview
The Eaton SRXFAN3U is a 3-U high rack-mount fan panel engineered to boost airflow in dense server racks, network enclosures or telecom cabinets. It integrates three built-in fans rated for 208-240 V AC input, delivering around 315 CFM of airflow to help mitigate thermal build-up behind high-density electronics.Its front-panel installation format fits standard 19-inch rack frames, and the metal chassis provides durable support for continuous operation. Because the unit uses industrial-grade fans at higher voltage (208-240 V), it is suitable for equipment rooms and data-cabinet environments typical in enterprise and campus infrastructures×even in locales like Lahore where ambient conditions may stress passive cooling.For an engineer specifying rack infrastructure, this panel offers a practical upgrade when existing racks show signs of thermal congestion, when you're populating racks with larger power-dense switches/servers, or when you lack active cooling at the room level and need supplemental airflow. It doesn't replace full environmental air-conditioning systems, but it helps ensure individual racks remain within acceptable temperature ranges, supports longer equipment life and reduces service interventions.Installation of the SRXFAN3U is straightforward: mount into the rack at a strategic mid- or top location, plug in power (user-supplied cord, C14 inlet), and route airflow through the rack in a way that aligns with your hot-aisle/cold-aisle scheme. Ensure power input and ambient clearances meet manufacturer guidance for reliability.
Key Features
Three 4-inch fans rated for 208-240 V AC provide ~315 CFM of airflow for effective rack ventilation.
3-U rack-mount form-factor fits standard 19-inch cabinets, making it ideal for dense equipment stacks.
Cold-rolled steel housing in black finish provides durability and professional aesthetic alignment with rack gear.
Plug-in C14 power inlet (user-supplied cord) and included mounting hardware simplify installation.
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SRXFAN3U |
| Product Type | Rack-Mount Fan Panel (3-U) |
| Key Specification | Three 4-inch high-performance fans |
| Key Specification | Input voltage 208-240 V AC, 50/60 Hz |
| Key Specification | Approximate airflow: 315 CFM |
| Input Connection | C14 inlet (user-supplied power cord required) |
| Rack Mount Dimensions | Height: 3 U (~5.22″ / ~132.6 mm), Width: ~18.87″ |
| Noise Level | Up to ~45 dB noise rating under standard conditions |
| Warranty | 2-year limited warranty |
