Detailed Specifications
Overview

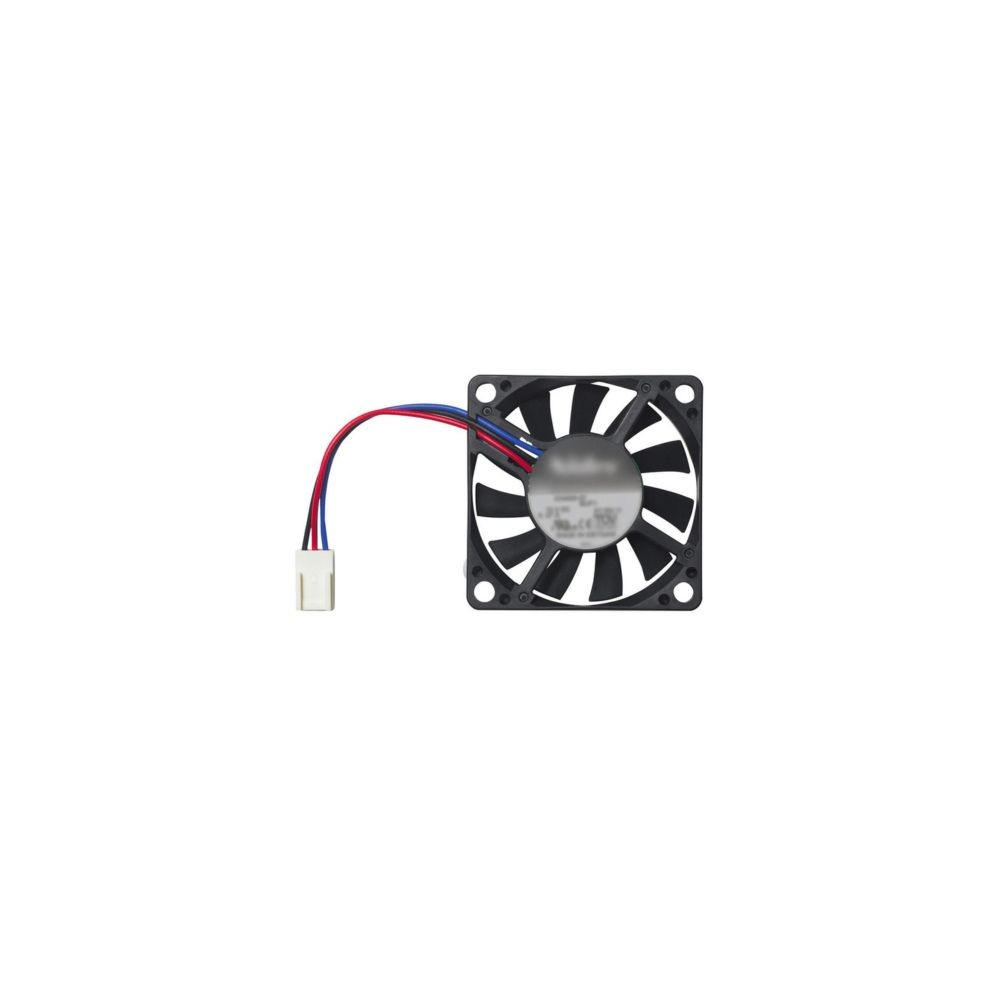

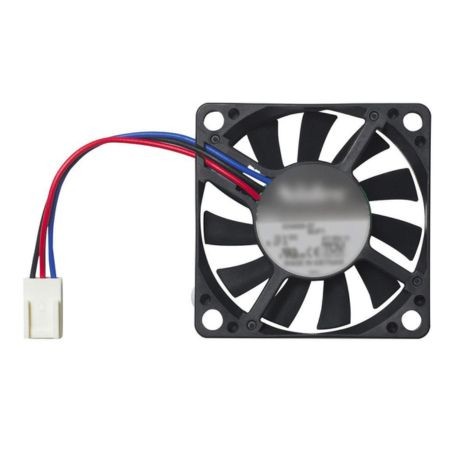

The BUFFALO OP-FAN/HDWH is a replacement cooling fan designed for compatible BUFFALO DriveStation Pro storage systems. It provides user-replaceable fan maintenance for supported HD-WHU3/R1 and HD-WHU3/R1-C series enclosures.
Compatibility
The OP-FAN/HDWH is specified by BUFFALO for the HD-WHU3/R1 series and HD-WHU3/R1-C series. It is also identified in BUFFALO product specifications as the replacement fan for compatible HD-WH DriveStation Pro models.
Cooling Function
The replacement fan helps control heat generated during HDD operation. BUFFALO specifies a quiet-fan design and a temperature-controlled fan operation intended to reduce unnecessary fan noise.
Key Features
- Replacement fan for compatible BUFFALO DriveStation Pro storage systems
- Designed for HD-WHU3/R1 and HD-WHU3/R1-C series
- Quiet-fan design for reduced operating noise
- User-replaceable fan for easier maintenance
- RoHS compliant
Applications
The OP-FAN/HDWH is intended for replacement of the cooling fan in supported BUFFALO DriveStation Pro HD-WH storage enclosures. Verify the exact enclosure model before ordering.
DC Supplies Product Note
DC Supplies recommends confirming the enclosure model and existing fan specification before purchase. BUFFALO identifies OP-FAN/HDWH specifically for compatible HD-WHU3/R1 and HD-WHU3/R1-C series systems.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | OP-FAN/HDWH |
| Product Type | Replacement Cooling Fan |
| Compatible Series | HD-WHU3/R1 |
| Additional Compatible Series | HD-WHU3/R1-C |
| Fan Dimensions | 50 × 50 × 10 mm |
| Fan Weight | Approximately 25 g |
| Operating Temperature | 5–35°C |
| Operating Humidity | 20–80% |
| RoHS | Compliant |
| Warranty | 3 years |
| JAN Code | 4981254020692 |
| Included Accessories | Instruction manual and push rivets |
FAQs
What is the BUFFALO OP-FAN/HDWH used for?
It is a replacement cooling fan for compatible BUFFALO DriveStation Pro HD-WHU3/R1 series storage enclosures.
Which BUFFALO systems are compatible?
BUFFALO specifies compatibility with the HD-WHU3/R1 and HD-WHU3/R1-C series. Individual enclosure compatibility should be checked before ordering.
Can the fan be replaced by the customer?
Yes. BUFFALO states that the fan can be replaced by the customer when required.
What are the fan dimensions?
The fan measures 50 × 50 × 10 mm, excluding protruding parts.
Is the OP-FAN/HDWH covered by a warranty?
BUFFALO lists a 3-year warranty for this replacement fan.
