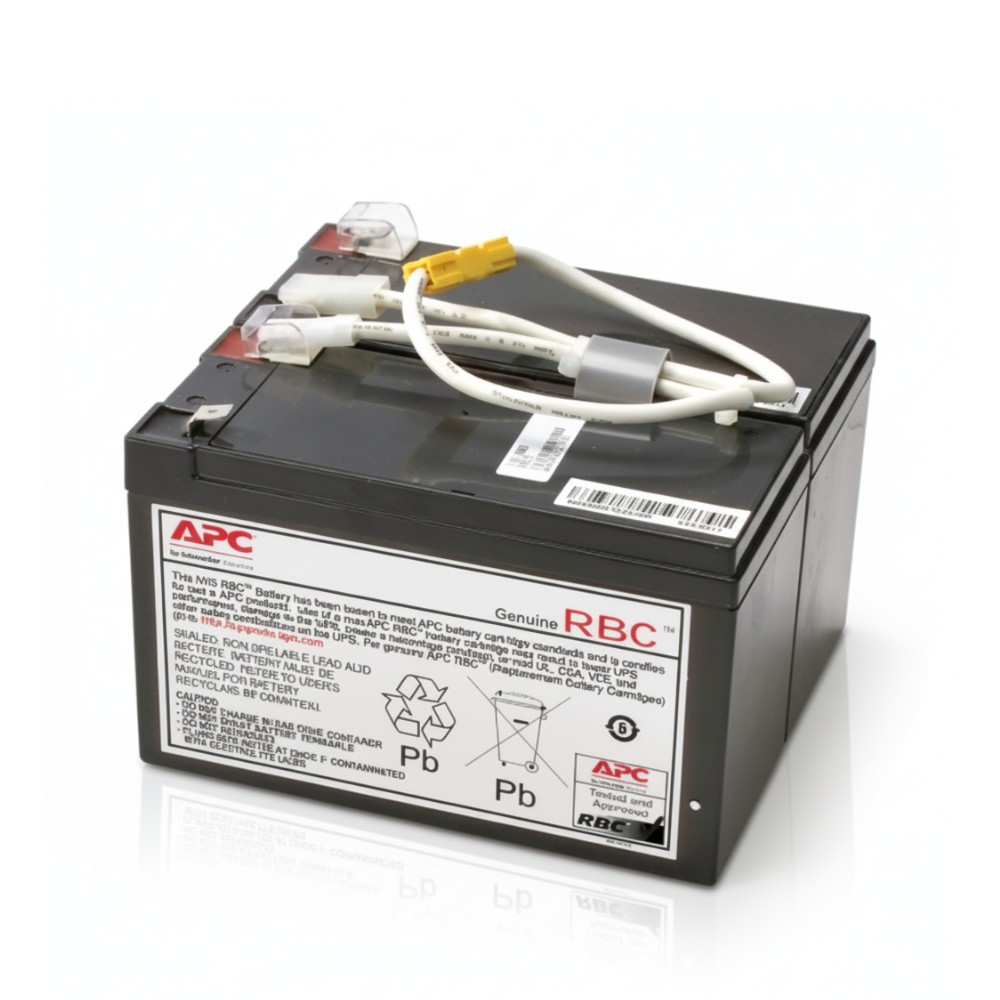

APC RBC109 Replacement Battery Cartridge 109 with 2-Year Warranty

New

Replacement UPS battery cartridge (24 V / 9 Ah)
×




  • New

Detailed Specifications

APC RBC109 – Replacement Battery Cartridge

Overview :

The APC RBC109 is a replacement battery cartridge intended for APC Back-UPS and Smart-UPS systems. It restores correct battery performance when original cells degrade. It provides a 24 V supply (via two 12 V batteries in series), suited for mid-range UPS runtimes. It is used in small-to-medium deployments such as branch offices, network closets, or edge applications. The cartridge integrates with APC’s intelligent battery management and supports hot-swap replacement without shutting down load.

Key Features :

  • 24 V output via two 12 V 9 Ah cells

  • Hot-swappable installation for continuous uptime

  • Compatible with APC battery management systems

  • Designed for 3–5 year service life

Specifications :

SpecificationValue
Brand APC / Schneider Electric
Part Number RBC109 / APCRBC109
Product Type Replacement battery cartridge
Battery Capacity 9.0 Ah (at 24 V)
Battery Type / Chemistry Maintenance-free sealed lead acid (VRLA)
Net Weight 5.58 kg
Dimensions (H × W × D) 104 mm × 151 mm × 132 mm
Operating Temperature 0 °C to 40 °C
Storage Temperature 0 °C to 40 °C
Relative Humidity (operate/store) 0 % to 95 % (non-condensing)
Battery Blocks per String 2
Standard Warranty 2 years (repair or replace)
