Detailed Specifications

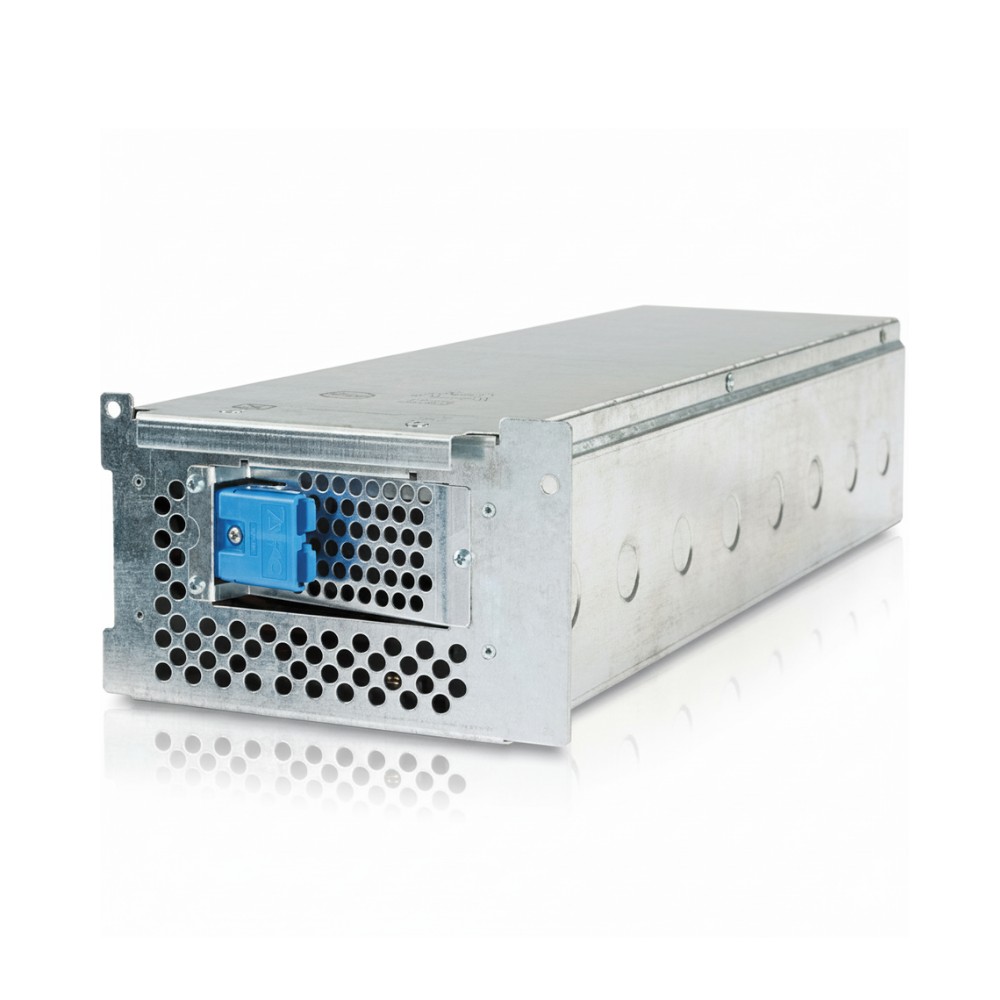

APC RBC105 - Replacement Battery Cartridge
Overview :
The APC RBC105 is a hot-swwap battery cartridge module used by data centers and server rooms to restore or extend runtime in compatible APC UPS units. It delivers a sealed, maintenance-free lead-acid battery pack designed to be plugged into UPS battery bays. It's typically installed in rack or tower UPS systems at the edge, branch or data-center for runtime extension. In deployments, it integrates transparently with the UPS's battery management and monitoring system.
Key Features :
Hot-swappable sealed lead-acid battery pack
Rated for 12 V, 9 Ah per cell module
Compatible with multiple APC Smart-UPS models
Designed for 3-5 year operational life under normal usage
Specifications :
| Parameter | Value |
|---|
| Brand | APC |
| Part Number | RBC105 |
| Product Type | Replacement Battery Cartridge |
| Nominal Battery Voltage | 12 V per module |
| Rated Capacity | 9 Ah |
| Battery Type | Sealed, maintenance-free lead-acid |
| Dimensions (H × W × D) | 108 mm × 165 mm × 572 mm |
| Net Weight | 24.55 kg |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -5 °C to 45 °C |
| Operating Humidity | 0 to 95 % RH non-condensing |
| Warranty | 1 (or 2) years depending region |
| Expected Operational Life | 3-5 years under proper conditions |
