Eaton RBC58-3US UPS Replacement Battery Cartridge 192V DC

Eaton RBC58-3US UPS Replacement Battery Cartridge 192V DC

Overview :

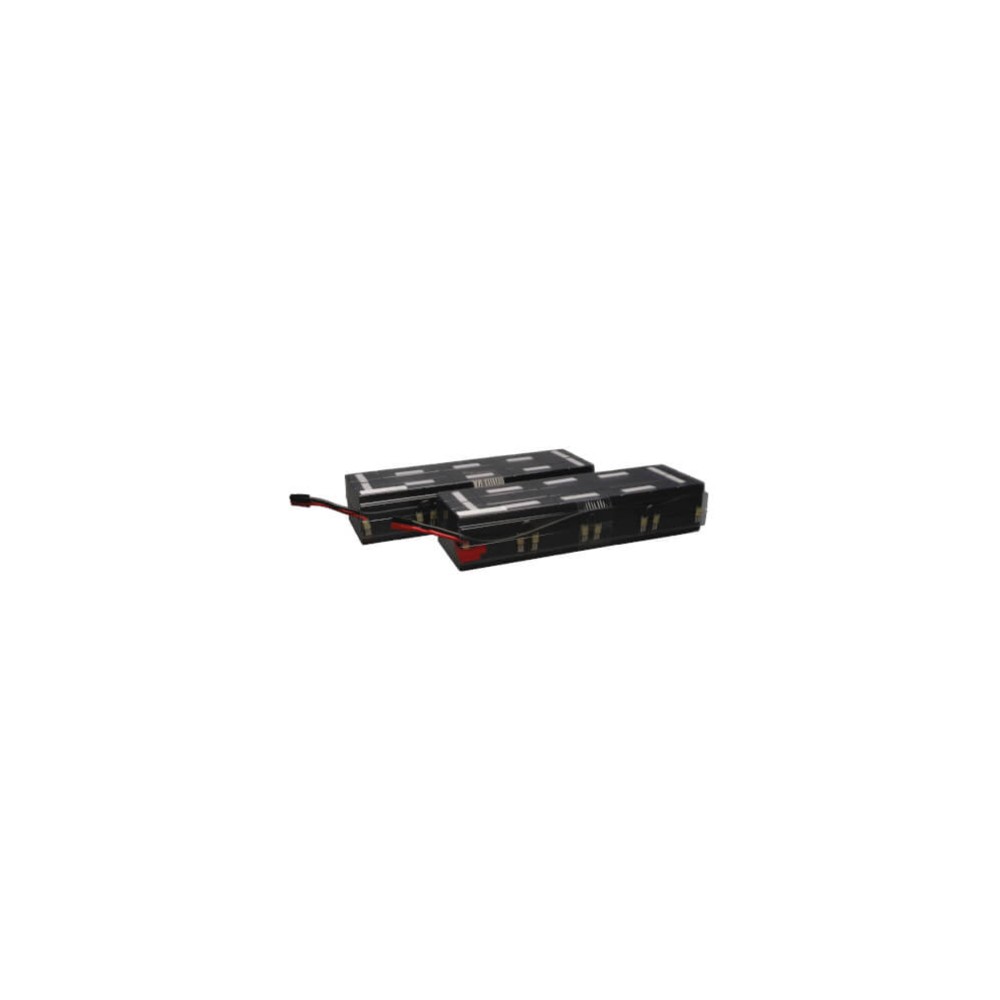

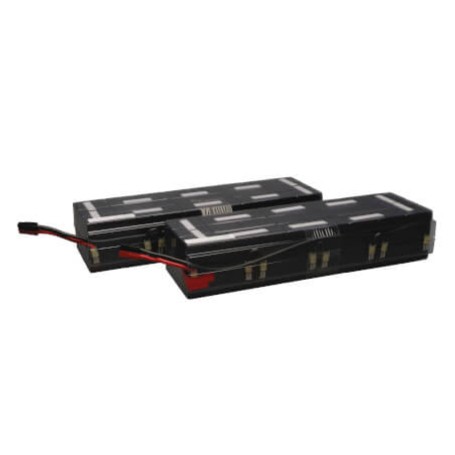

The Eaton RBC58-3US is a 192V DC pre-assembled internal replacement battery cartridge from the Tripp Lite series. Data center technicians and facilities maintenance engineers deploy this heavy-duty battery pack to restore factory-spec runtime performance to critical online double-conversion UPS systems. By enabling localized, hot-swappable installation, it addresses cell degradation in mission-critical hardware nodes without forcing costly equipment downtime or complete power chassis replacements.

The system features a high-voltage 192V DC nominal output configuration composed of 16 matched 12V 5Ah sealed lead-acid (SLA) batteries. These premium cells utilize advanced valve-regulated lead-acid (VRLA) technology and come partitioned into two pre-wired 96V metal battery trays. This design ensures highly stable power delivery profiles capable of driving heavy enterprise computing and storage loads during sudden utility outages, functioning perfectly across wide operational temperature variations.

The modular configuration is engineered for precise toolless slide-in slot alignment, matching a 3U horizontal rack profile inside compatible main frames and external battery enclosures. The robust, leakproof structural chassis slides into the internal battery compartments on standard rack rails. Every unit ships in heavy-duty, reusable protective packaging configured to safely hold and transport the spent, expired lead-acid trays back to a certified reclamation facility for proper recycling.

The RBC58-3US is engineered exclusively for select Eaton Tripp Lite SmartOnline 5kVA and 6kVA UPS units alongside corresponding expansion frames. It is fully compatible with network power models including the SU5KRT3UHV, SU6KRT3UHV, and their associated MB detachable bypass variants, as well as the BP192V12RT3US external battery modules. This battery pack must not be utilized in lower-voltage line-interactive UPS topologies, alternative single-phase systems requiring a flat 24V/48V bus, or uncertified third-party enclosures.

Key Features :

• Pre-wired 192V dual-tray layout ensures zero-downtime hot-swap utility

• Set of 16 rigorously screened 5Ah cells fully restores factory runtime

• Valve-regulated leakproof technology ensures secure server room operation

• Reusable heavy-duty freight packaging simplifies expired module recycling

• Maintenance-free cell design completely avoids ongoing fluid level checks

Specifications :
