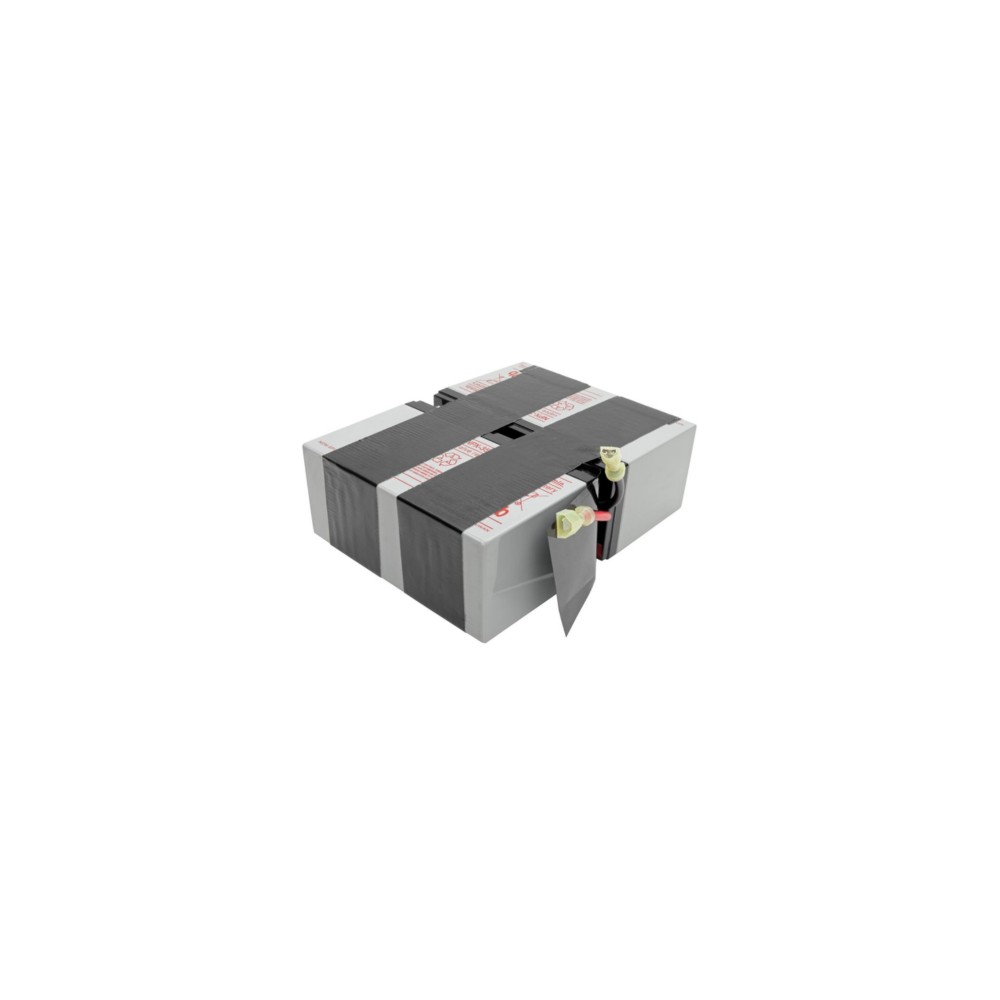

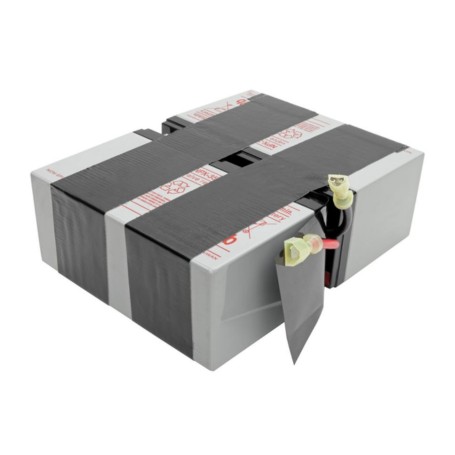

Eaton RBC1500 UPS Replacement Battery Cartridge

Eaton RBC1500 UPS Replacement Battery Cartridge

Overview :

The Eaton RBC1500 is a pre-assembled, pre-wired internal replacement battery cartridge from the Tripp Lite series. Data center technicians and facility maintenance teams deploy this battery cartridge to restore standard runtime performance in existing uninterruptible power supplies (UPS). By swapping an expired internal battery string, it eliminates the capital expense of replacing a fully functional UPS chassis while extending the lifecycle of network power backup systems.

The cartridge features a 24V DC nominal output configuration built from two matched 12V 9Ah sealed lead-acid (SLA) batteries wired in series. It operates utilizing valve-regulated lead-acid (VRLA) technology, allowing it to maintain stable power performance over a broad operating temperature spectrum. This pre-wired assembly safely supplies necessary backup current to match original host infrastructure runtime profiles, tracking at roughly 11.8 to 14.3 minutes under half-load conditions depending on the exact load layout.

Constructed inside a rugged, leakproof frame, the cartridge is optimized for direct toolless field installation in small-to-mid-size data centers, wiring closets, and distributed network environments. The compact design slides easily into the integrated battery compartment of compatible host hardware. The package ships in reusable structural padding, allowing field technicians to wrap and return the spent, expired battery modules to an authorized local recycling facility without creating industrial waste.

The RBC1500 is engineered exclusively for specific Eaton Tripp Lite SmartPro line-interactive UPS systems outfitted with external battery access doors. It is fully compatible with modern versions of the SMART1200LCD, SMART1500LCD, SMART1500LCDXL, and SMX1500LCD units. This cartridge assembly must not be forced into older legacy variants of these UPS models lacking a dedicated quick-access front or rear battery panel, nor should it be deployed in uncertified third-party power systems.

Key Features :

• Pre-wired cartridge design allows rapid plug-and-play field restoration

• Certified internal cells fully restore aging UPS systems to baseline runtime

• Valve-regulated leakproof housing prevents acid spills in server environments

• Reusable heavy-duty packaging streamlines delivery to local recycling centers

• Maintenance-free construction requires no ongoing fluid level adjustments

Specifications :
