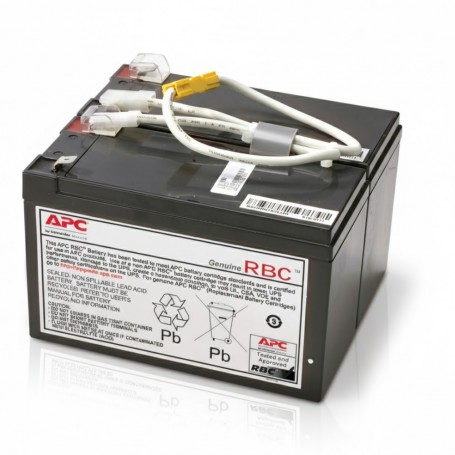

APC APCRBC109 Replacement Battery Cartridge for Smart-UPS
Overview
The APC APCRBC109 is a sealed lead-acid replacement battery cartridge for select APC Smart-UPS models. IT administrators and data center engineers use this cartridge to ensure continuous backup power for servers, storage systems, and network devices during utility outages. The APCRBC109 addresses battery end-of-life events, allowing controlled shutdowns and maintaining operational continuity for connected equipment.
Each APCRBC109 unit provides a nominal 12V DC output and features a hot-swappable design, allowing replacement without shutting down the UPS or attached devices. Compatible Smart-UPS systems automatically detect the cartridge upon installation, enabling runtime monitoring, battery health reporting, and end-of-life alerts through the UPS management interface.
The cartridge is suitable for both rack-mounted and tower UPS deployments, typically installed in server rooms, branch offices, or edge computing cabinets. Its compact design allows easy insertion and secure connection within the UPS chassis while maintaining proper airflow and clearance.
UPS integration offers real-time monitoring, runtime estimation, and proactive maintenance notifications, reducing the risk of unexpected UPS failure and ensuring continuous protection for connected infrastructure.
The APCRBC109 is not compatible with non-APC UPS systems, high-voltage industrial UPS units, or non-lead-acid chemistries. For applications requiring extended runtime beyond the APCRBC109's capacity, additional cartridges or external battery packs designed for higher-capacity Smart-UPS models should be used.
Key Features
• 12V DC sealed lead-acid replacement battery
• Hot-swappable for uninterrupted UPS operation
• Compatible with Smart-UPS 750-1200VA models
• Automatic recognition and runtime monitoring by UPS
• Compact form factor for rack and tower UPS units
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | APCRBC109 |
| Product Type | Replacement Battery Cartridge |
| Battery Chemistry | Sealed Lead-Acid |
| Nominal Voltage | 12V DC |
| Typical Capacity | 7 Ah |
| Compatible UPS Models | Smart-UPS 750-1200VA (specific models vary) |
| Recharge Time | 4-6 hours typical |
| Hot-Swap Support | Yes |
| Operating Temperature | 32-104 °F (0-40 °C) |
| Storage Temperature | 5-113 °F (-15-45 °C) |
| Dimensions (H × W × D) | 1.7 × 3.8 × 5.4 in |
| Weight | 5.5 lb |
| Certifications | UL, CE, RoHS |
| Warranty | 3 years typical |
