Detailed Specifications

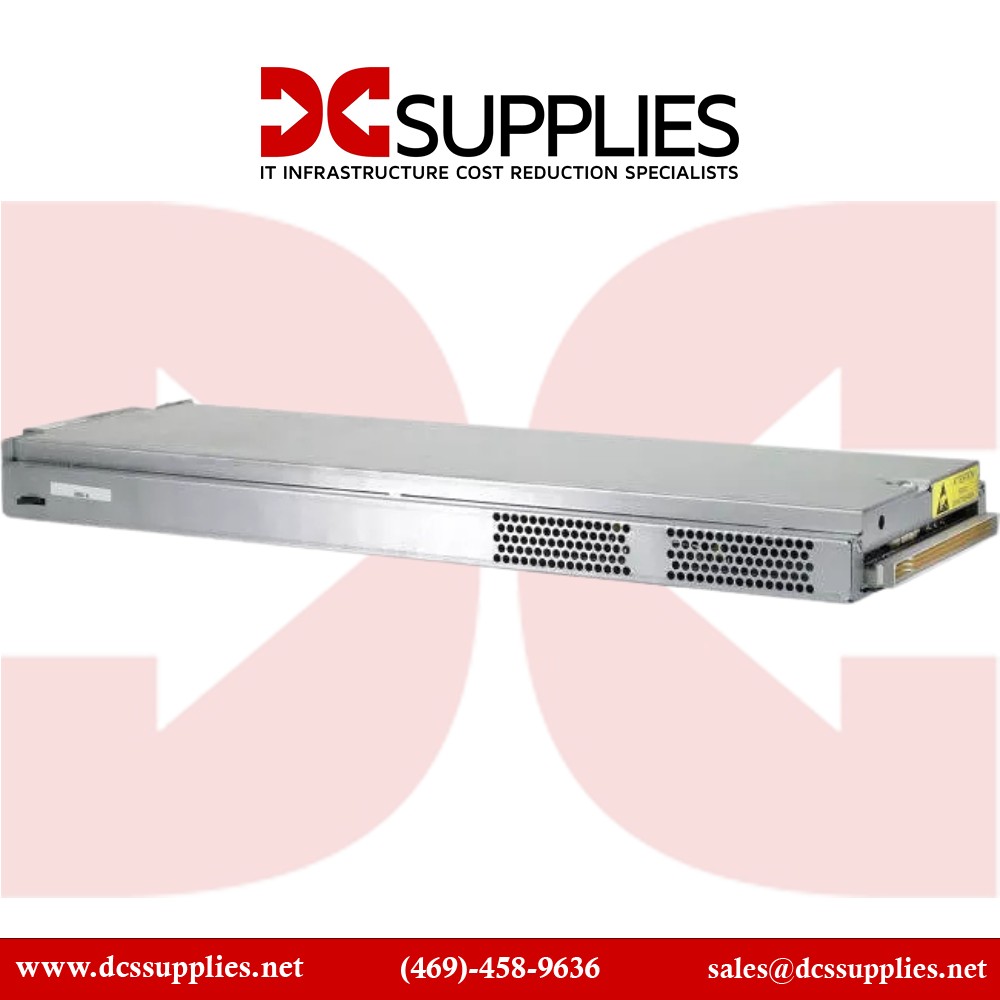

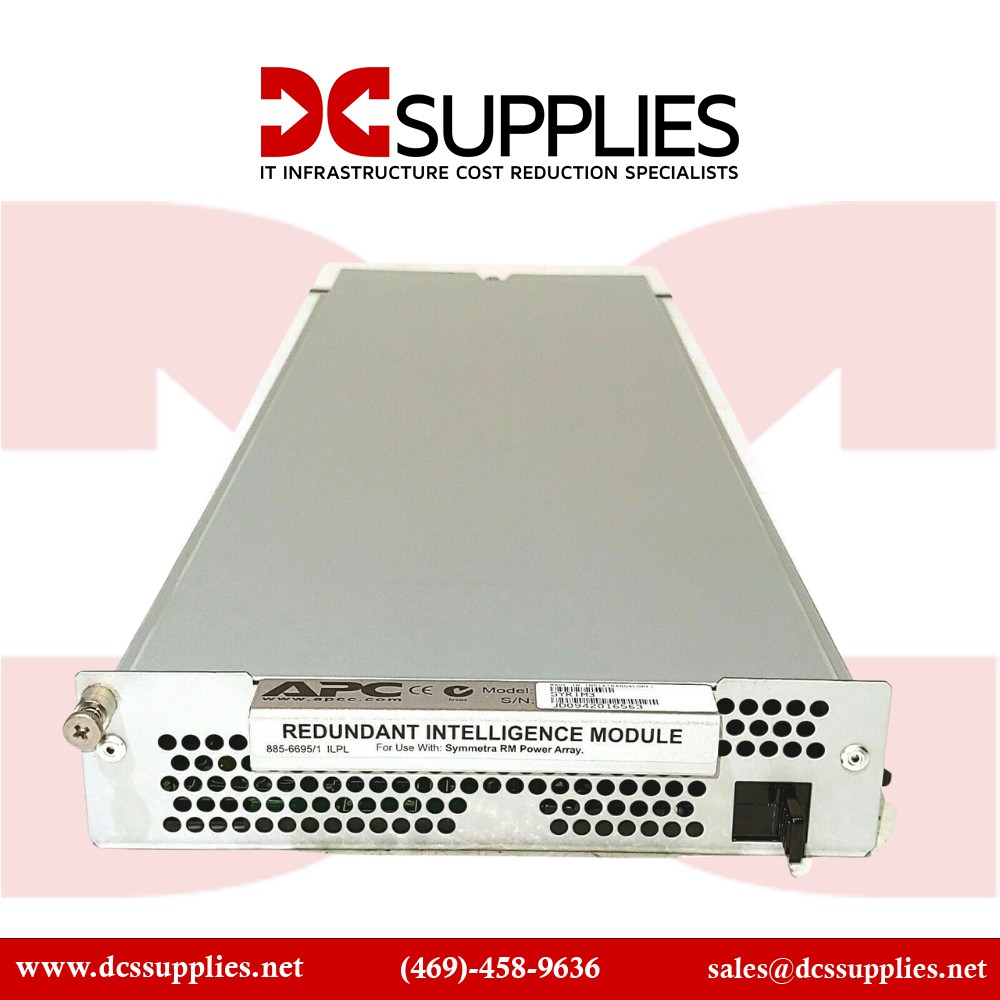

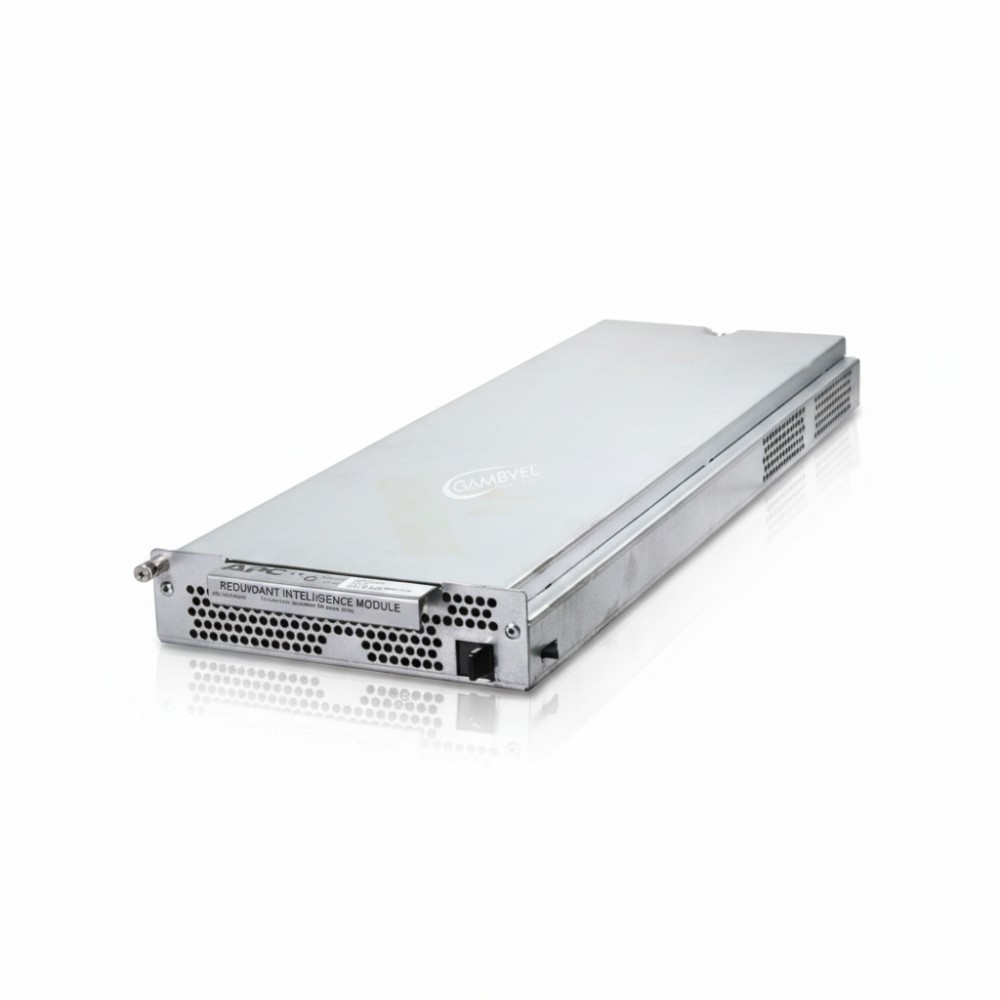

APC SYRIM3 - Symmetra RM Redundant Intelligence Module
Overview
The APC SYRIM3 is a hot-swappable intelligence module designed for APC Symmetra RM UPS systems (2-6 kVA and 8-12 kVA). It manages control algorithms, battery logic, and communications, ensuring redundancy and continuity of UPS operations. In redundant setups, the module operates in dual mode (master/standby) to prevent a single point of failure. It includes connectors for external display linkage and LED status, making it suitable for data centers requiring high availability and fault tolerance.
Key Features
Intelligence & control module for Symmetra RM UPS systems
Supports redundant operation with master/standby mode
Hot-swappable for maintenance without powering down load
Interfaces to external display and communications modules
Compatible with 2-6 kVA and 8-12 kVA Symmetra RM models
Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | SYRIM3 |
| Product Type | Redundant Intelligence Module |
| Compatible UPS Series | Symmetra RM 2-6 kVA, 8-12 kVA |
| Function | Control, communications, and redundancy logic |
| Hot-Swappable | Yes |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 50 °C |
| Operating Humidity | 0% - 95% non-condensing |
| Storage Humidity | 0% - 95% non-condensing |
| Operating Altitude | Up to 3,000 m |
| Dimensions (H × W × D) | 41 × 168 × 499 mm |
| Weight | 2.27 kg |
| Communication Ports | Logic bus to UPS, external display interface |
| Redundancy Mode | Master / standby |
| Warranty | Standard APC / Schneider Electric terms |
