Overview

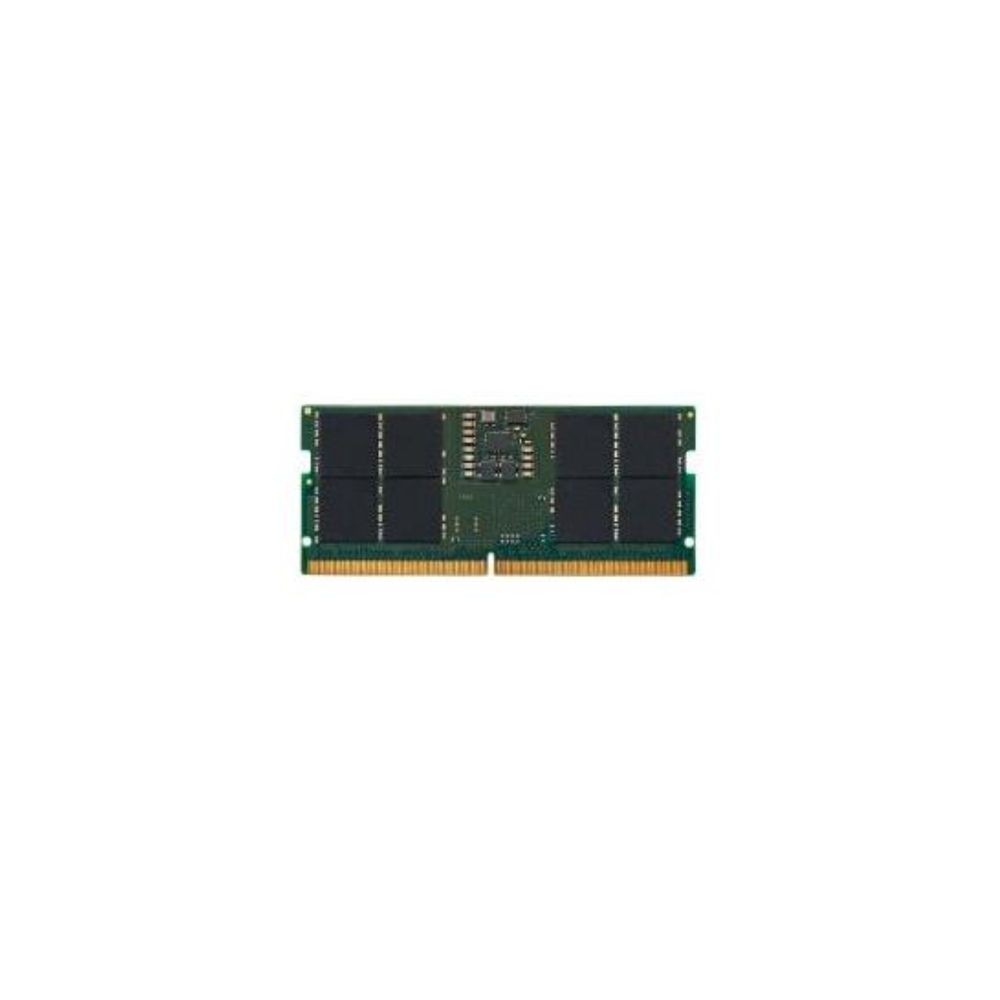

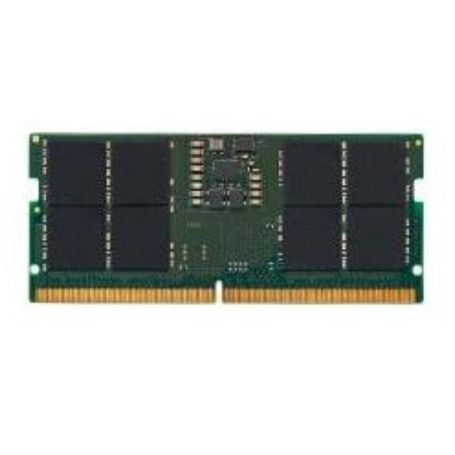

The Kingston ValueRAM KVR56S46BS8-16 is a 16GB DDR5 memory module designed for compatible laptops, notebooks, and compact computing systems that support 262-pin SO-DIMM memory. It operates at a rated data transfer rate of 5600MT/s and uses an unbuffered design for supported computing platforms.
As part of Kingston's ValueRAM product family, this module follows standard DDR5 memory specifications. Its single-module configuration provides an option for systems requiring an individual 16GB memory module.
Memory Performance and Architecture
The module uses a single-rank 1Rx8 configuration with eight 2G x 8-bit memory components. Its programmed JEDEC profile specifies DDR5-5600 operation with CL46-45-45 timings at 1.1V.
DDR5 on-die error correction is integrated into the memory devices. This functionality operates within the memory chips and does not provide the same system-level error-correction capability as dedicated ECC memory modules.
Compatibility
The KVR56S46BS8-16 requires a compatible 262-pin DDR5 SO-DIMM memory slot. The host system must support the DDR5 generation, module capacity, and memory configuration.
- Memory generation: DDR5; incompatible with DDR4 and DDR3 memory slots.
- Form factor: 262-pin SO-DIMM for compatible laptops and compact computers.
- Module type: Unbuffered, non-ECC system memory.
- Capacity: 16GB per module.
- Operating speed: Actual speed depends on the processor, system firmware, and platform specifications.
Key Features
- 16GB capacity: Provides memory capacity for compatible computing systems.
- DDR5-5600 performance: Supports a rated data transfer rate of 5600MT/s.
- Single-rank architecture: Uses a 1Rx8 memory configuration.
- Compact SO-DIMM format: Features a 262-pin design for compatible laptop and compact-computer slots.
- Low-voltage operation: Uses a nominal operating voltage of 1.1V.
Applications
This module can be used in compatible laptops and compact computing systems for office productivity, general computing, multitasking, and software applications that benefit from additional system memory. The appropriate memory configuration depends on the computer's supported capacity and workload requirements.
DC Supplies Product Note
Verify the required memory rank and module type before ordering. Although this module uses the common DDR5 SO-DIMM form factor, system compatibility also depends on the computer's supported capacity and memory configuration. On-die ECC should not be mistaken for full system-level ECC support.
Technical Specifications
| Specification | Details |
|---|
| Brand | Kingston |
| Manufacturer | Kingston Technology |
| Product Family | ValueRAM |
| Part Number / MPN | KVR56S46BS8-16 |
| Product Type | DDR5 SO-DIMM Memory Module |
| Module Capacity | 16GB |
| Module Configuration | 1 x 16GB |
| Memory Technology | DDR5 SDRAM |
| Rated Data Transfer Rate | 5600MT/s |
| Memory Standard | PC5-44800 |
| Form Factor | 262-pin SO-DIMM |
| Module Type | Unbuffered |
| System ECC Support | Non-ECC |
| On-Die ECC | Yes |
| Rank Configuration | 1Rx8, single-rank |
| CAS Latency | CL46 |
| Standard Timings | 46-45-45 |
| Operating Voltage | 1.1V |
| Memory Organization | 2G x 64-bit |
| DRAM Component Organization | Eight 2G x 8-bit components |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| PCB Height | 30mm |
| Contact Plating | Gold |
| Compliance | RoHS compliant, halogen-free, UL 94 V-0 |
| EAN | 0740617334050 |
Frequently Asked Questions
1. Is the Kingston KVR56S46BS8-16 compatible with every DDR5 laptop?
No. The laptop must support DDR5 SO-DIMM memory and the module's 16GB capacity. Check the system manufacturer's specifications for supported memory configurations and maximum capacity.
2. Can this module be installed in a standard desktop motherboard?
This module uses the compact SO-DIMM form factor commonly found in laptops and small computers. Standard desktop motherboards generally use full-size UDIMM memory, which has a different physical design.
3. Does this module provide system-level ECC?
No. This is a non-ECC system memory module. Its on-die ECC functionality is part of DDR5 memory architecture and does not replace system-level ECC support.
4. Will the memory always operate at 5600MT/s?
Not necessarily. The actual operating speed depends on the processor, motherboard, and firmware. A compatible system may operate the module at a lower speed supported by its memory controller.
5. Can this module be combined with existing RAM?
Potentially, provided the system supports the combined capacity and the resulting memory configuration. Check the computer manufacturer's upgrade documentation before combining modules with different capacities, ranks, or specifications.
