Overview

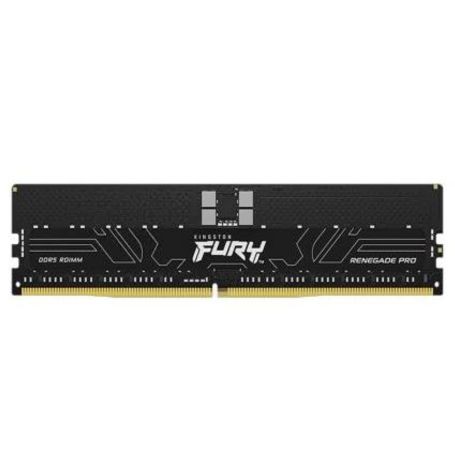

The Kingston FURY Renegade Pro KF564R32RBE2K8-256 is a 256GB DDR5 memory kit designed for compatible high-performance desktop and workstation platforms that support registered DIMMs. The kit contains eight 32GB memory modules and combines ECC memory functionality with high-speed DDR5 operation. It supports AMD EXPO and Intel Extreme Memory Profiles (XMP) 3.0 for configurable memory performance on compatible platforms.
Memory Performance and Operation
The kit is rated for data transfer rates up to 6400MT/s with a 32-39-39 timing profile at 1.4V. Its programmed JEDEC default profile operates at DDR5-4800 with CL40-39-39 timings at 1.1V. Additional EXPO and XMP profiles support DDR5-6000 operation, providing alternative settings for compatible systems.
Each module uses a registered DIMM design with error-correcting code (ECC) support. On-die ECC is also included as part of the DDR5 memory architecture.
Compatibility and Installation
This kit is intended for systems with compatible DDR5 registered DIMM (RDIMM) memory slots. The motherboard, processor, firmware, and memory configuration must support the selected module type, total capacity, and operating speed.
Registered DDR5 memory is not interchangeable with standard unbuffered DDR5 UDIMMs. Before purchasing, verify that the target platform supports registered DDR5 modules and an eight-module, 256GB configuration. Achieving the rated 6400MT/s speed also depends on platform capabilities and the selected memory profile.
Key Features
- 256GB total capacity: Eight 32GB DDR5 memory modules supplied as a matched kit.
- High-speed DDR5 operation: Rated for data transfer rates up to 6400MT/s with the specified performance profile.
- ECC Registered design: Supports error-correcting memory functionality and registered DIMM operation on compatible platforms.
- AMD EXPO and Intel XMP 3.0: Includes supported memory profiles for configuring performance on compatible systems.
- 288-pin DIMM form factor: Designed for compatible DDR5 registered memory slots.
Applications
This memory kit can be considered for compatible high-capacity workstations and computing systems used for demanding professional workloads, including engineering applications, content creation, scientific computing, and data-intensive processing. Suitability depends on the platform's memory architecture, supported capacity, and workload requirements.
DC Supplies Product Note
Confirm RDIMM support before ordering. Although this kit uses the DDR5 interface, it is registered memory rather than standard unbuffered desktop memory. Check the motherboard or workstation manufacturer's supported-memory documentation for module type, total capacity, DIMM population rules, and supported speeds. The rated 6400MT/s profile may not be available on every compatible platform.
Technical Specifications
| Specification | Details |
|---|
| Brand | Kingston |
| Manufacturer | Kingston Technology |
| Part Number / MPN | KF564R32RBE2K8-256 |
| Product Type | DDR5 ECC Registered Memory Kit |
| Product Series | Kingston FURY Renegade Pro |
| Total Capacity | 256GB |
| Memory Configuration | 8 x 32GB |
| Memory Technology | DDR5 SDRAM |
| Rated Data Transfer Rate | 6400MT/s |
| Memory Standard | DDR5-6400 / PC5-51200 |
| Module Type | Registered DIMM (RDIMM) |
| Form Factor | 288-pin DIMM |
| Error Correction | ECC |
| On-Die ECC | Supported |
| Rank Configuration | Dual-rank (2Rx8) |
| Rated CAS Latency | CL32 |
| Rated Timing | 32-39-39 |
| Rated Profile Voltage | 1.4V |
| JEDEC Default Profile | DDR5-4800 CL40-39-39 at 1.1V |
| AMD EXPO Support | EXPO v1.1 |
| Intel Memory Profile Support | Intel XMP 3.0 |
| EXPO DDR5-6000 Profile | CL32-38-38 at 1.35V |
| XMP DDR5-6000 Profile | CL32-38-38 at 1.35V |
| Operating Temperature | 0°C to +95°C |
| Storage Temperature | -55°C to +100°C |
| PCB Height | 31.25mm |
| Compliance | RoHS compliant and halogen-free |
| UPC/EAN | 0740617342123 |
Frequently Asked Questions
1. Is this an eight-module memory kit?
Yes. The KF564R32RBE2K8-256 is a 256GB kit containing eight 32GB modules. Kingston identifies it as a kit of eight, so the modules should be treated as a matched kit rather than separate products.
2. Will this memory work in a standard DDR5 desktop motherboard?
Not necessarily. This product uses registered DDR5 RDIMMs, which are different from unbuffered DDR5 UDIMMs commonly used in consumer desktop systems. Confirm that the motherboard and processor explicitly support registered DDR5 memory before purchasing.
3. Does the memory always operate at 6400MT/s?
No. The rated 6400MT/s profile requires a compatible platform and the appropriate memory settings. The modules also have a JEDEC default profile of DDR5-4800 at 1.1V. Actual operating speed depends on the supported hardware configuration and firmware settings.
4. Are AMD EXPO and Intel XMP profiles included?
Yes. The kit supports AMD EXPO v1.1 and Intel XMP 3.0 profiles. Availability and operation of these profiles depend on the motherboard, processor, firmware, and platform support.
5. Can the eight modules be used individually?
Kingston identifies this product as a kit of eight and states that separating or using the modules individually voids the kit warranty and makes them ineligible for returns under its stated kit policy. Refer to Kingston's current warranty terms for applicable conditions.
