Detailed Specifications

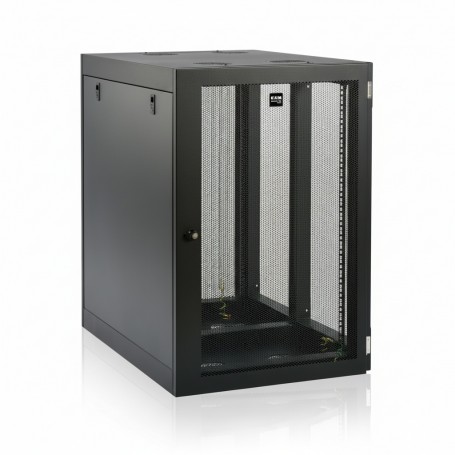

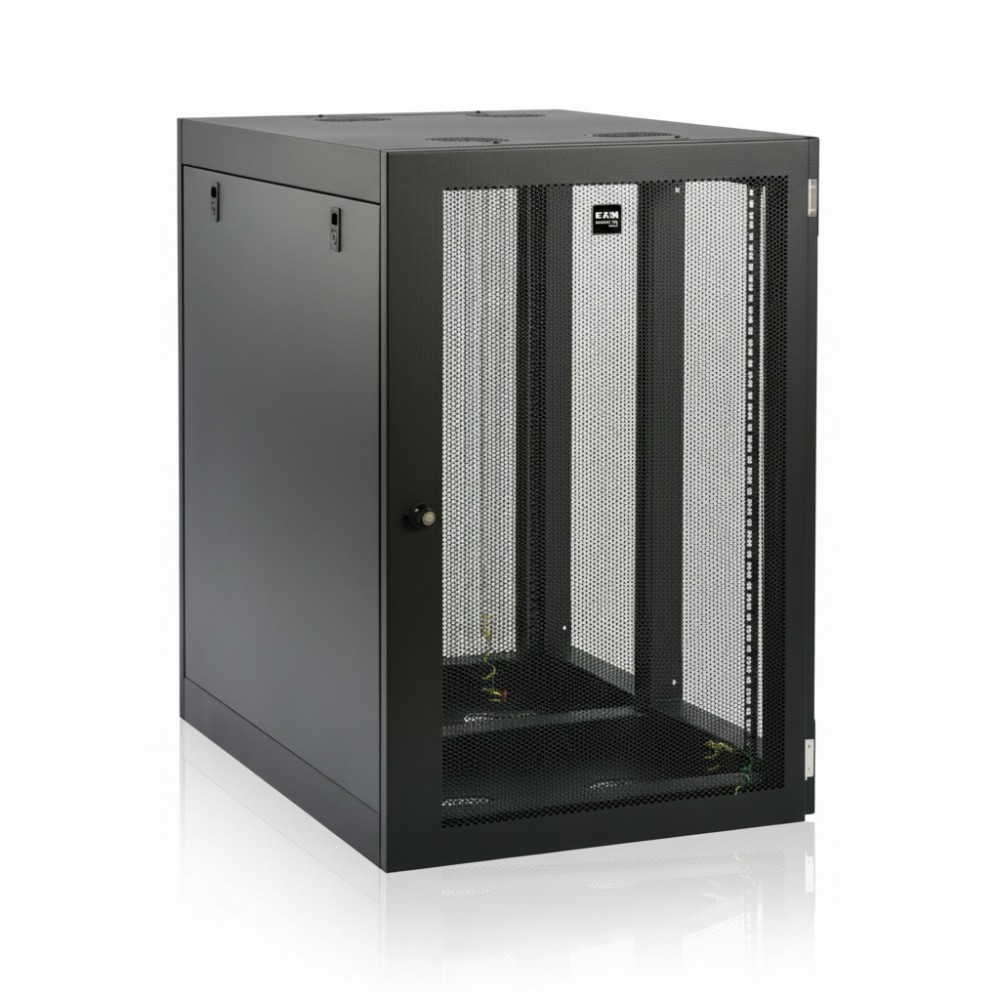

Eaton SRW18UHD SmartRack 18U 500lb Wall-Mount Rack Cabinet
Overview
The Eaton SRW18UHD SmartRack is a heavy-duty, low-profile, side-mount wall-mount rack enclosure cabinet engineered to house EIA-standard 19-inch rack equipment in environments where floor space is at a premium. Designed for network wiring closets, retail locations, classrooms, and back offices, this 18U cabinet provides a secure and organized solution for critical IT infrastructure. Its unique side-mount orientation allows it to accommodate server-depth equipment up to 32.5 inches deep while extending less than 25 inches from the wall, effectively maximizing usable space. Constructed from robust steel with a durable black powder-coated finish, the SRW18UHD supports a substantial maximum load capacity of 500 pounds (226.8 kgs), making it suitable for heavier equipment such as 1U servers, UPS systems, battery packs, and network switches. The cabinet's vented top, bottom, and side panels facilitate passive airflow, helping to maintain optimal operating temperatures for installed components. Deployment is streamlined as the cabinet ships fully assembled, ready for wall mounting. It features adjustable vertical mounting rails with both square and 12-24 threaded holes, ensuring compatibility with a wide range of rack-mount hardware. Secure, locking front and side panels deter unauthorized access, protecting valuable equipment from damage, tampering, or theft, while convenient top and bottom ports allow for organized cable routing.
