Overview

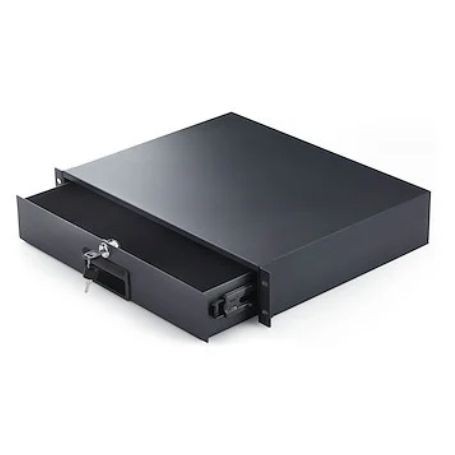

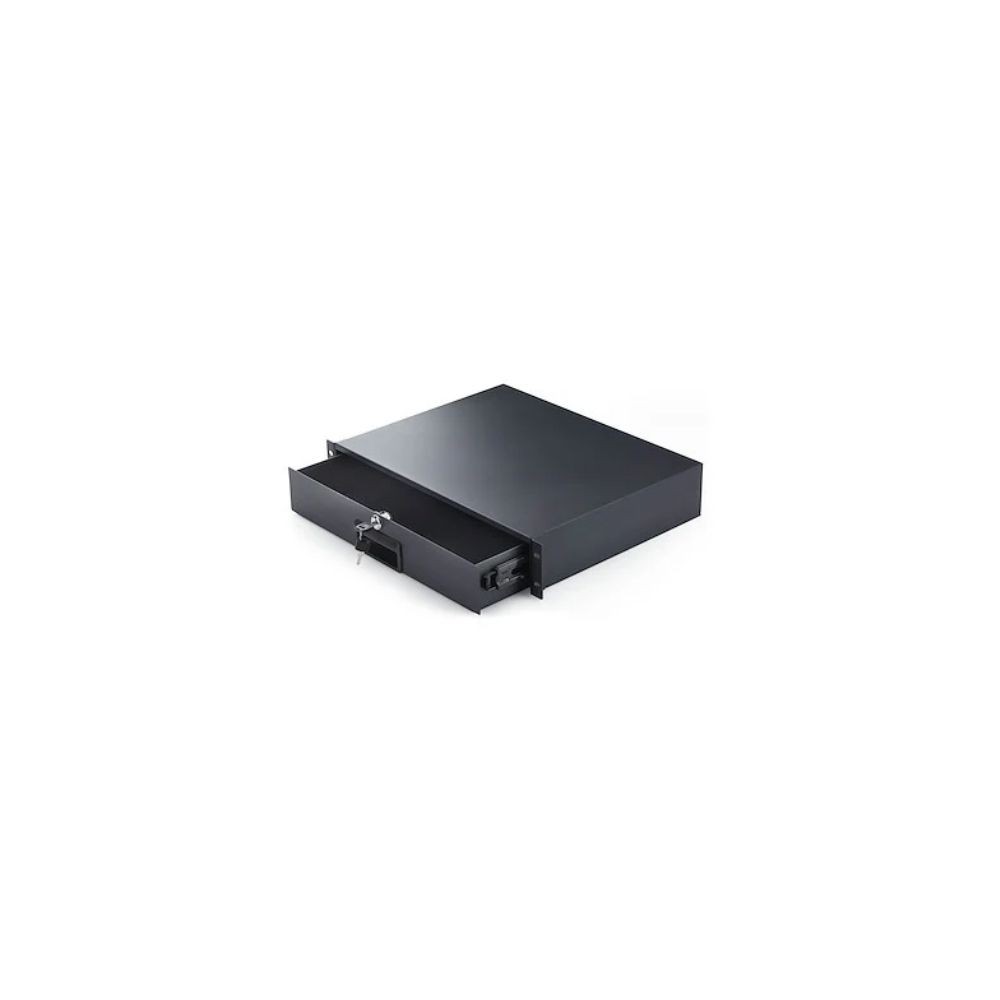

The StarTech.com 2U-RACK-MOUNT-DRAWER is a lockable storage drawer designed for standard 19-inch server racks and equipment cabinets. It provides dedicated space for storing installation tools, network accessories, diagnostic equipment, spare components, and other maintenance supplies within the rack.
The drawer features a steel enclosure, a sliding storage compartment, an integrated lock, and three rear cable-access holes. Its maximum load capacity is 10 kg, making it suitable for compatible tools and accessories rather than heavy server equipment. The 2U form factor allows the drawer to be installed alongside other rack-mounted infrastructure.
For deployment, verify the rack's mounting arrangement, available 2U space, and front-access clearance. The product is designed for front mounting and is not a wall-mount drawer. The package includes two keys and M6 mounting hardware for installation in compatible rack cabinets.
Key Features
2U rack storage: Adds dedicated storage to standard 19-inch racks.
Lockable steel enclosure: Helps restrict access to stored equipment.
10 kg load capacity: Supports compatible tools and network accessories.
Rear cable access: Three openings accommodate power and data cables.
Installation hardware included: Includes keys, cage nuts, and screws.
Technical Specifications
| Specification | Details |
|---|
| Brand | StarTech.com |
| Manufacturer Part Number | 2U-RACK-MOUNT-DRAWER |
| Product Type | Rackmount storage drawer |
| Product Category | Server rack accessory |
| Rack Compatibility | Standard 19-inch racks |
| Rack Height | 2U |
| Mounting Type | Front mount |
| Material | Steel |
| Color | Black |
| Locking Mechanism | Integrated lock with keys |
| Maximum Load Capacity | 10 kg |
| Product Dimensions (W × D × H) | 483 × 357 × 88.6 mm |
| Product Weight | 5.1 kg |
| Cable Access | Three rear cable-access holes |
| Included Accessories | 2 keys, 4 plastic washers, 4 M6 cage nuts, 4 M6 mounting screws |
| Warranty | 5 years |
Product Note
StarTech.com 2U-RACK-MOUNT-DRAWER is intended for secure storage of lightweight tools, accessories, and maintenance supplies in compatible 19-inch equipment racks. Its maximum load capacity is 10 kg. Confirm rack compatibility, mounting clearance, and the weight of stored items before installation. The package includes mounting hardware and two keys.
Frequently Asked Questions
What is StarTech.com 2U-RACK-MOUNT-DRAWER?
It is a 2U lockable steel storage drawer designed for installation in standard 19-inch server racks and equipment cabinets.
What is the maximum weight capacity?
The drawer supports a maximum load of 10 kg. Stored equipment and accessories should remain within this limit.
Does the drawer include a lock and keys?
Yes. It has an integrated locking mechanism and includes two keys to help restrict access to stored items.
What are the dimensions of the drawer?
The published dimensions are 483 mm wide, 357 mm deep, and 88.6 mm high. It occupies 2U of rack space.
Can the drawer accommodate equipment that needs cable connections?
Yes. Three rear cable-access holes allow power or data cables to pass through when compatible equipment is stored inside.
What mounting hardware is included?
The package includes four M6 cage nuts, four M6 mounting screws, four plastic washers, two keys, and product documentation.
