Overview

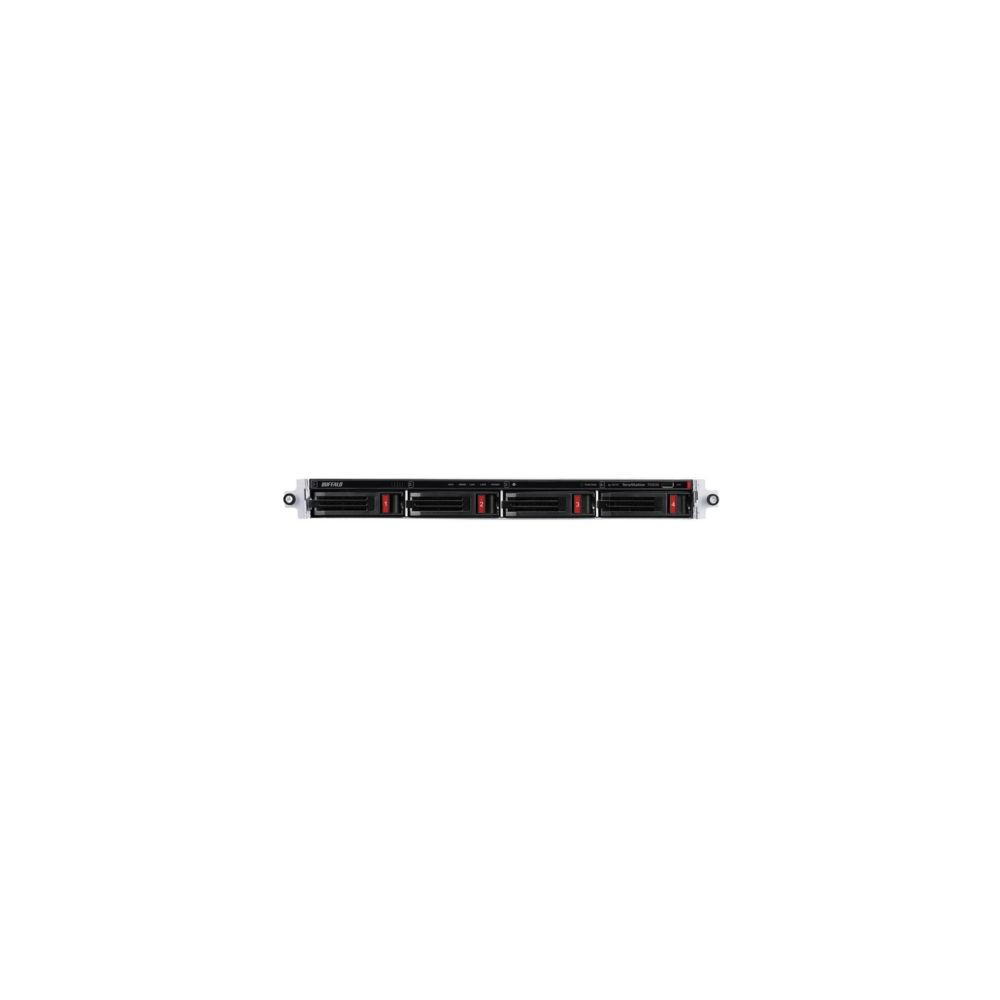

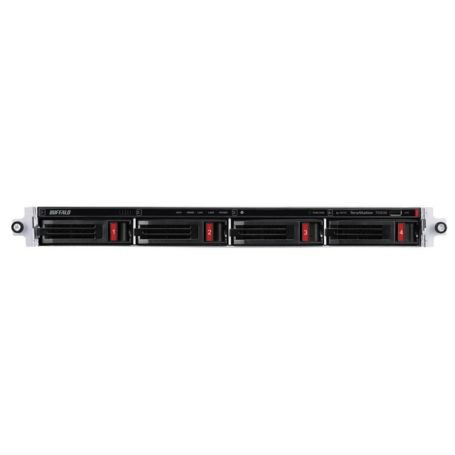

The BUFFALO TS3430RN0802 is an 8TB configuration of the TeraStation 3430RN 4-bay rackmount NAS. It includes two 4TB NAS-grade hard drives and is designed for centralized network storage, file sharing, backup, and business data management.
Technical Information
The TeraStation 3430RN uses an Annapurna Labs Alpine AL-524 2.0GHz quad-core processor with 2GB of DDR4 memory. The four-bay rackmount chassis provides additional drive-bay capacity for supported storage configurations.
Storage and RAID
The TS3430RN platform uses SATA 6Gbps NAS-grade drives and supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD. Hot spares and hot swapping are supported.
Network and Connectivity
Network connectivity includes one 2.5GbE port and one 1GbE port. The system also provides two USB 3.2 Gen 1 Type-A ports and one USB 2.0 Type-A port, with transfer rates up to 5Gbps through compatible USB 3.2 Gen 1 connections.
Key Features
- 8TB total installed capacity with two 4TB NAS-grade drives
- Four-bay rackmount TeraStation 3430RN chassis
- Annapurna Labs Alpine AL-524 2.0GHz quad-core processor
- RAID 0/1/5/6/10 and JBOD support
- 2.5GbE and 1GbE network connectivity
Applications
The TS3430RN0802 is suited to centralized file storage, network backup, shared business data, and rackmount NAS deployments requiring an 8TB two-drive configuration.
DC Supplies Product Note
The exact part number TS3430RN0802 identifies the 8TB version supplied with two 4TB drives. This should not be confused with the TS3430RN0804, which is an 8TB configuration using four 2TB drives.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS3430RN0802 |
| Product Type | Rackmount NAS |
| Series | TeraStation 3030 |
| Model | TeraStation 3430RN |
| Total Installed Capacity | 8TB |
| Included Drives | 2 × 4TB |
| Drive Bays | 4 |
| Drive Type | NAS Grade |
| Drive Interface | SATA 6Gbps |
| Supported RAID | 0/1/5/6/10/JBOD |
| Hot Swapping | Supported |
| Hot Spares | Supported |
| Processor | Annapurna Labs Alpine AL-524, 2.0GHz Quad-core |
| Memory | 2GB DDR4 |
| Network Ports | 1 × 2.5GbE, 1 × 1GbE |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A, 1 × USB 2.0 Type-A |
| USB Transfer Rate | Up to 5Gbps |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 85W |
| Power Consumption During Data Transfer | 44W |
| Idle Power Consumption | 33W |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Product Dimensions | 16.9 × 16.9 × 1.7 in |
| Product Weight | 13.9 lb with 2 drives included |
| Warranty | 3 years |
| Country of Origin | Japan |
FAQs
What is the capacity of the BUFFALO TS3430RN0802?
The TS3430RN0802 has 8TB of total installed storage using two included 4TB drives.
How many drive bays does the TeraStation 3430RN have?
The TeraStation 3430RN has four drive bays. The TS3430RN0802 is supplied with two drives.
What RAID levels are supported?
The system supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
What network ports are included?
The TS3430RN provides one 2.5GbE port and one 1GbE port.
What is the difference between TS3430RN0802 and TS3430RN0804?
Both configurations provide 8TB, but the TS3430RN0802 contains two 4TB drives, while the TS3430RN0804 contains four 2TB drives.
What warranty is included?
BUFFALO provides a 3-year hardware warranty for the TeraStation 3030 series.
