Overview

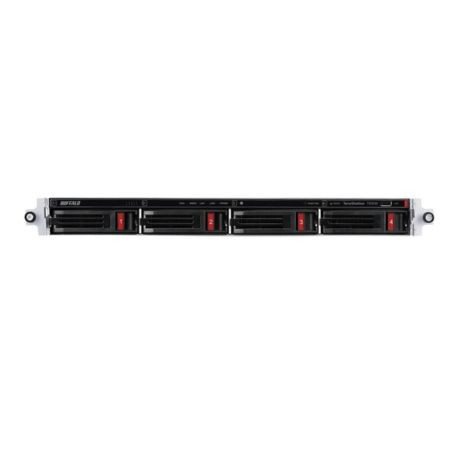

The BUFFALO TS3430RN0402 is a TeraStation 3430RN rackmount network storage system supplied with 4TB of total storage using two 2TB NAS-grade hard drives. It is designed for centralized network storage, backup, and data management in business environments.
Technical Information
The TeraStation 3430RN platform uses an Annapurna Labs Alpine AL-524 2.0GHz quad-core processor with 2GB of DDR4 memory. The four-bay chassis provides room for additional drives, while the installed two-drive configuration delivers 4TB of storage capacity.
Storage and RAID
The TS3430RN0402 supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD. The system supports hot swapping and hot spares, providing flexibility for different storage and redundancy requirements.
Network and Connectivity
Network connectivity includes one 2.5GbE port and one 1GbE port. The system also provides two USB 3.2 Gen 1 Type-A ports and one USB 2.0 port, with USB data transfer rates of up to 5Gbps for supported USB 3.2 Gen 1 connections.
Key Features
- 4TB total capacity with two included 2TB NAS-grade drives
- Four-bay rackmount TeraStation 3430RN chassis
- Annapurna Labs Alpine AL-524 2.0GHz quad-core processor
- Supports RAID 0/1/5/6/10 and JBOD configurations
- 2.5GbE plus 1GbE network connectivity
Applications
The TS3430RN0402 is suitable for centralized file storage, network backup, shared business data, and other NAS applications where rackmount installation and expandable four-bay storage are required.
DC Supplies Product Note
The exact part number TS3430RN0402 identifies the 4TB configuration containing two 2TB drives. Please verify the required storage configuration before ordering, as the TeraStation 3430RN is available in multiple capacity and drive-count variants.
Specifications
| Specification | Details |
|---|
| Brand | BUFFALO |
| Part Number / MPN | TS3430RN0402 |
| Product Type | Rackmount NAS |
| Series | TeraStation 3030 |
| Model | TeraStation 3430RN |
| Total Capacity | 4TB |
| Included Drives | 2 × 2TB |
| Drive Bays | 4 |
| Drive Type | NAS Grade |
| Drive Interface | SATA 6Gbps |
| Supported RAID | 0/1/5/6/10/JBOD |
| Hot Swapping | Supported |
| Hot Spares | Supported |
| Processor | Annapurna Labs Alpine AL-524, 2.0GHz Quad-core |
| Memory | 2GB DDR4 |
| Network Ports | 1 × 2.5GbE, 1 × 1GbE |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A, 1 × USB 2.0 |
| USB Transfer Rate | Up to 5Gbps |
| Maximum Power Consumption | 85W |
| Power Consumption During Data Transfer | 44W |
| Idle Power Consumption | 33W |
| Power Supply | Internal AC 100–240V, 50/60Hz |
| Operating Temperature | 0–40°C |
| Operating Humidity | 10–85% non-condensing |
| Unit Dimensions | 16.9 × 16.9 × 1.7 in |
| Warranty | 3 years |
| Country of Origin | Japan |
FAQs
What is included with the BUFFALO TS3430RN0402?
This specific configuration includes two 2TB NAS-grade drives, providing 4TB of total installed storage.
How many drive bays does the TS3430RN have?
The TeraStation 3430RN has four drive bays. The TS3430RN0402 is supplied with two drives installed.
Which RAID levels are supported?
The system supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and JBOD.
What network connections are available?
The TS3430RN platform provides one 2.5GbE port and one 1GbE port.
Can the drives be hot-swapped?
Yes. BUFFALO specifies hot-swapping support for the TeraStation 3430RN.
What warranty does the TS3430RN0402 have?
BUFFALO lists a 3-year hardware warranty for the TeraStation 3030 series.
