Detailed Specifications

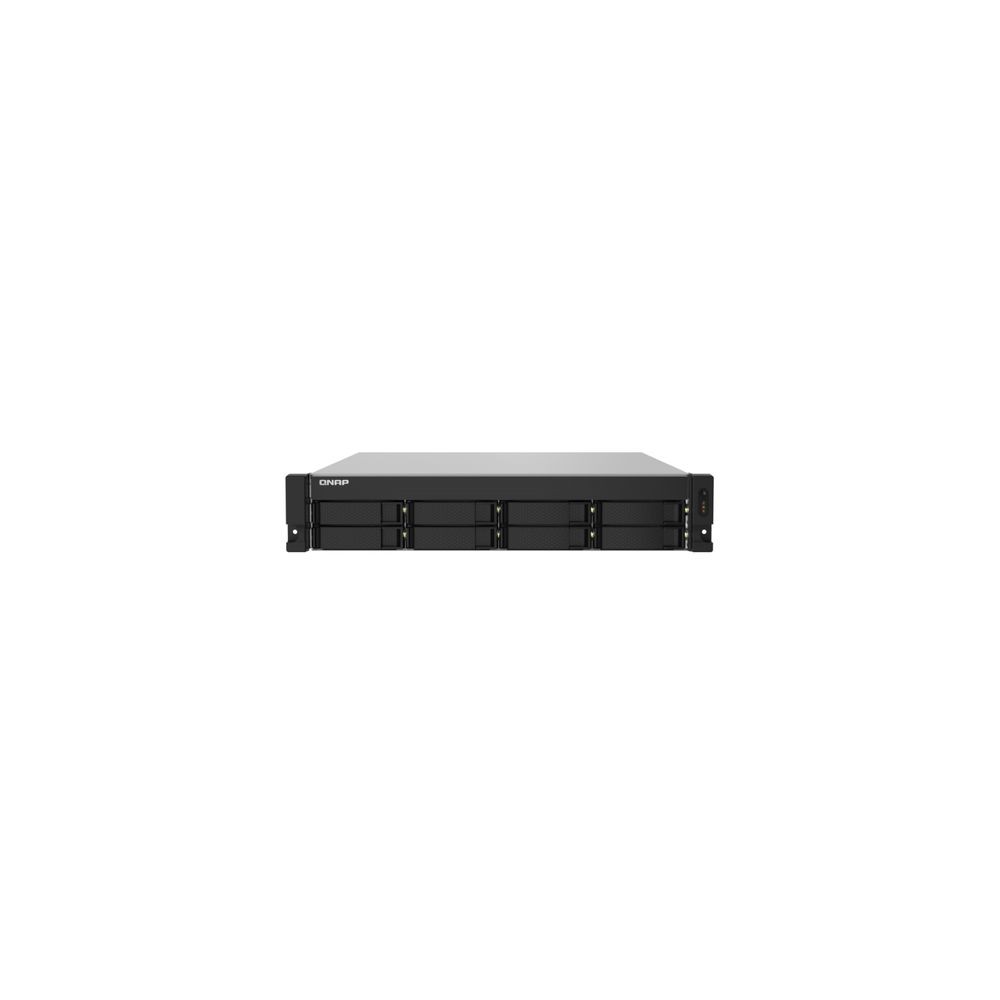

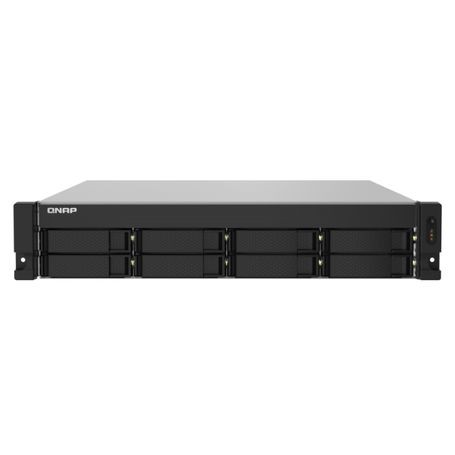

QNAP TS-832PXU-RP-4G-US - 1U Rackmount NAS
Overview
The QNAP TS-832PXU-RP-4G-US is a high-performance 8-bay 1U rackmount NAS featuring dual 10GbE SFP+ and dual 2.5GbE network ports. Powered by an Annapurna Labs Alpine AL-324 Quad-core 1.7GHz processor, this unit is built to provide high-speed data transmission and enterprise-grade reliability for small-to-medium businesses.
The "RP" designation indicates that this unit is equipped with dual redundant power supplies, ensuring that the system remains online even if one power unit fails. This solves a major pain point for businesses that require 24/7 data availability and cannot risk downtime during hardware maintenance or power failure. With its 8-bay high-density design, it offers massive storage capacity in a slim 1U form factor, ideal for backup, file sharing, and high-speed virtualization storage.
Deployment is common in standard 19-inch racks where vertical space is at a premium but storage density is required. The integrated 10GbE ports enable direct connection to high-speed fiber networks, facilitating lightning-fast backups and large-scale data synchronization. Additionally, the PCIe Gen 2 x2 slot allows for further expansion, such as adding M.2 SSD caching via a QM2 card to boost overall system IOPS.
Do not attempt to use this NAS for intensive 4K video transcoding, as the ARM-based processor is optimized for file throughput and high-speed networking rather than media conversion. To maximize 10GbE performance, ensure the 4GB RAM is upgraded to accommodate higher data buffers and more concurrent connections.
Key Features
10GbE Connectivity: Dual 10GbE SFP+ ports deliver high-bandwidth for intensive data tasks.
Redundant Power: Dual 250W PSUs prevent system downtime due to power failure.
8-Bay Capacity: High-density 1U design supports up to eight 3.5-inch SATA drives.
Quad-Core CPU: 1.7GHz processor provides efficient performance for SMB workloads.
PCIe Expandability: Single PCIe Gen 2 x2 slot allows for 10GbE or SSD cache upgrades.
Specifications
| Attribute | Details |
|---|
| Brand | QNAP |
| Part Number | TS-832PXU-RP-4G-US |
| Product Type | Rackmount NAS |
| Processor | Annapurna Labs Alpine AL-324 4-core 1.7GHz |
| Memory | 4GB UDIMM DDR4 (1 x 4GB, Max 16GB) |
| Drive Bays | 8 x 3.5-inch SATA 6Gb/s |
| 10GbE Ports | 2 x 10GbE SFP+ |
| 2.5GbE Ports | 2 x 2.5GbE (2.5G/1G/100M) |
| PCIe Slot | 1 x PCIe Gen 2 x2 |
| USB Ports | 4 x USB 3.2 Gen 1 Type-A |
| Power Supply | 2 x 250W Redundant PSU |
| Form Factor | 1U Rackmount |
| Cooling | 2 x 40mm fans (12V DC) |
