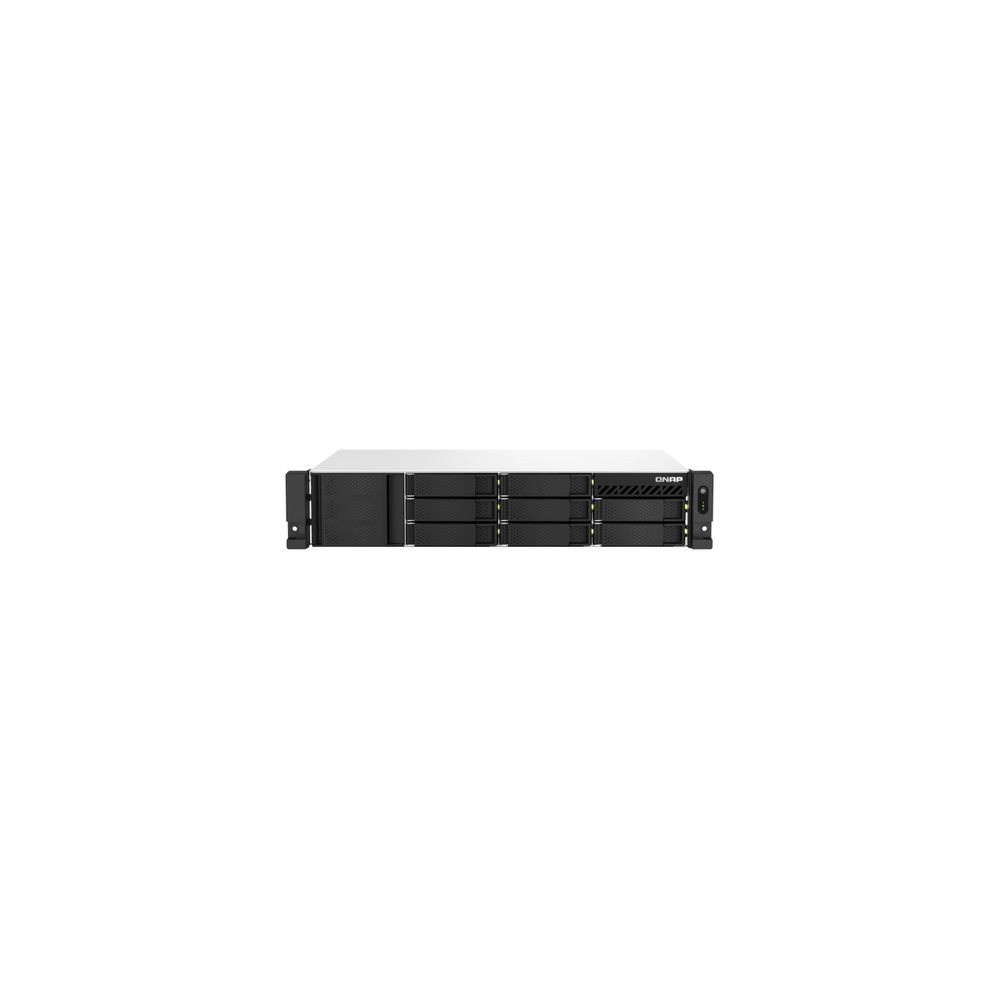

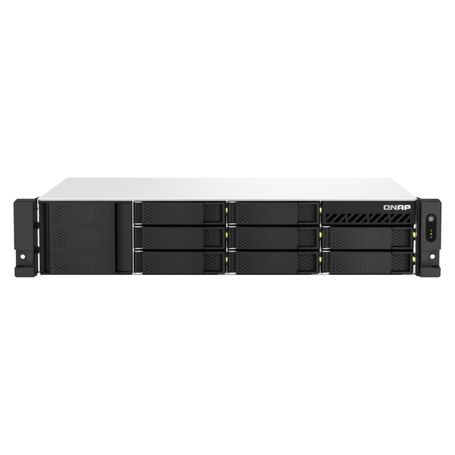

QNAP TS-873AeU-RP-4G-US - 2U Short-Depth NAS
Overview
The QNAP TS-873AeU-RP-4G-US is a professional-grade 2U short-depth rackmount NAS designed for space-constrained environments.Powered by an AMD Ryzen Embedded V1500B quad-core processor, it delivers enterprise-class performance for virtualization, centralized backup, and high-speed file sharing in a compact 11.7-inch chassis.
This unit features 8 hot-swappable drive bays and dual 2.5GbE connectivity, providing the throughput necessary for modern business workloads.It is specifically engineered for deployment in shallow-depth racks, wall-mount cabinets, or telecommunications closets where standard full-sized rackmount servers cannot fit, solving the problem of high-density storage in limited square footage.
The "RP" designation signifies the inclusion of dual 300W redundant power supplies, ensuring maximum system uptime for mission-critical applications.With integrated M.2 NVMe SSD slots for cache acceleration and a PCIe Gen 3 x8 slot for 10GbE/25GbE expansion, the system is highly adaptable for evolving data requirements.
Do not use this short-depth NAS in environments without adequate ventilation, as the compact 2U form factor relies on high-velocity cooling fans. Ensure that the total power draw of installed drives and expansion cards does not exceed the 300W PSU rating in N+1 configurations.
Key Features
AMD Ryzen quad-core 2.2GHz CPU handles heavy multitasking workloads
Short-depth 11.7-inch design fits compact racks and AV cabinets
Dual 2.5GbE ports enable high-speed networking and port trunking
Two M.2 PCIe Gen 3 x1 slots support NVMe SSD cache acceleration
Redundant 300W power supplies prevent downtime from PSU failure
Specifications
| Attribute | Details |
| Brand | QNAP |
| Part Number | TS-873AeU-RP-4G-US |
| Product Type | Rackmount NAS |
| Processor | AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz |
| Memory | 4GB DDR4 SODIMM (Expandable to 64GB) |
| Drive Bays | 8 x 3.5-inch SATA 6Gb/s (Hot-swappable) |
| M.2 Slots | 2 x M.2 2280 PCIe Gen 3 x1 |
| Network Ports | 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M) |
| PCIe Expansion | 1 x PCIe Gen 3 x8 |
| USB Ports | 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 2 Type-C |
| Power Supply | 2 x 300W Redundant PSU |
| Form Factor | 2U Rackmount (Short Depth) |
| Cooling | 3 x 60mm Cooling Fans |
| Warranty | 3-Year Limited |
