Detailed Specifications

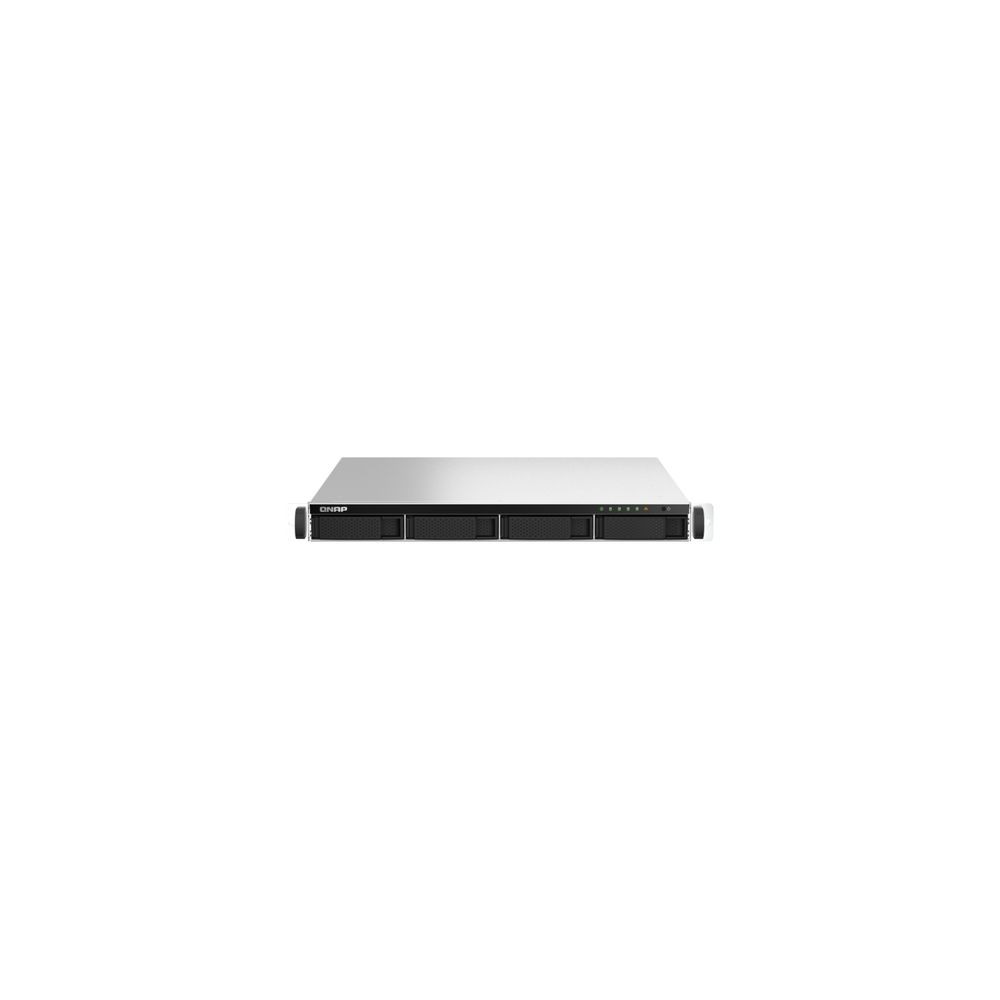

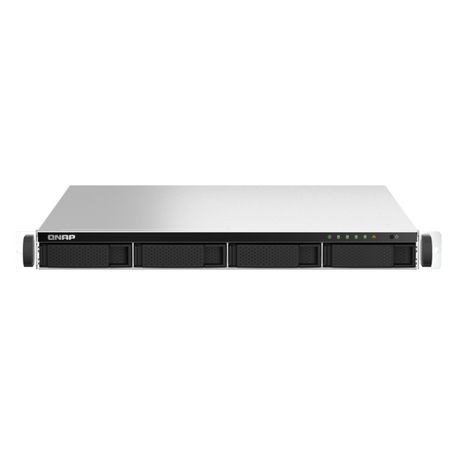

QNAP TS-464U-RP-8G-US 12-Bay Rackmount NAS
Overview
The QNAP TS-464U-RP-8G-US is a professional 1U rackmount NAS engineered for high-availability storage and streamlined data management in SMB environments. Powered by an Intel Celeron N5095 quad-core processor with burst speeds up to 2.9 GHz, this unit integrates hardware-accelerated AES-NI encryption and Intel UHD Graphics for efficient file security and multimedia processing. It is designed to serve as a centralized hub for cross-platform file sharing, disaster recovery, and localized virtualization.
Equipped with 8GB of DDR4 memory and dual 2.5GbE RJ45 ports, the TS-464U-RP provides high-bandwidth connectivity and reduced latency for team collaboration and large-scale backups. The "RP" designation signifies the inclusion of dual 250W redundant power supplies, which ensure continuous operation by allowing the system to remain online even if one power circuit or PSU fails. Its 1U short-depth design makes it highly suitable for deployment in compact server racks or wall-mount cabinets where space is a critical constraint.
The system features a PCIe Gen 3 x2 slot, allowing for hardware expansion such as 10GbE network cards or QM2 cards for M.2 SSD caching. With a native HDMI 1.4b output, it supports direct 4K monitoring of surveillance feeds or virtual machine consoles. This NAS is optimized for the QTS operating system, offering comprehensive support for snapshots, HBS 3 (Hybrid Backup Sync), and secure remote access; it is not intended for high-density compute-heavy virtualization tasks that exceed Celeron thermal and core-count limits.
Key Features
Intel Celeron N5095 quad-core CPU handles multi-user business tasks.
Dual 2.5GbE ports support Port Trunking for up to 5Gbps bandwidth.
250W redundant power supplies provide critical hardware-level uptime.
PCIe Gen 3 x2 expansion slot supports 10GbE or NVMe SSD caching.
Hardware-accelerated transcoding enables smooth 4K multimedia playback.
Specifications
| Feature | Detail |
| Brand | QNAP |
| Part Number | TS-464U-RP-8G-US |
| Product Type | 1U Rackmount NAS |
| Processor | Intel Celeron N5095 (4-Core, up to 2.9 GHz) |
| System Memory | 8GB SODIMM DDR4 (1 x 8GB) |
| Maximum Memory | 16GB (2 x 8GB) |
| Drive Bays | 4 x 3.5-inch SATA 6Gb/s (Hot-swappable) |
| Ethernet Ports | 2 x 2.5 Gigabit (2.5G/1G/100M) |
| PCIe Expansion | 1 x PCIe Gen 3 x2 |
| HDMI Output | 1 x HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| USB Ports | 2 x USB 3.2 Gen 2 (10Gbps), 2 x USB 2.0 |
| Power Supply | 2 x 250W Redundant PSU |
| Cooling | 2 x 40mm, 12VDC Fans |
| Form Factor | 1U Rackmount |
| RAID Support | RAID 0, 1, 5, 6, 10, JBOD, Single |
