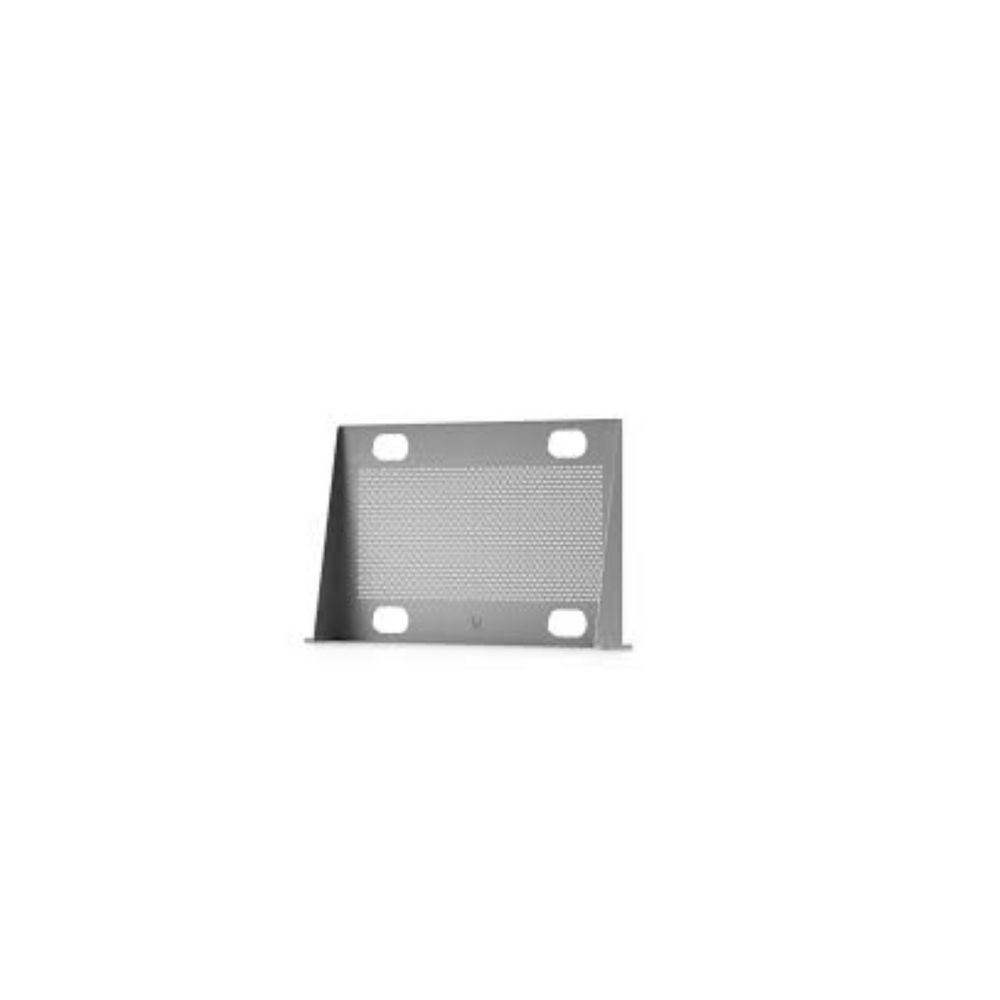

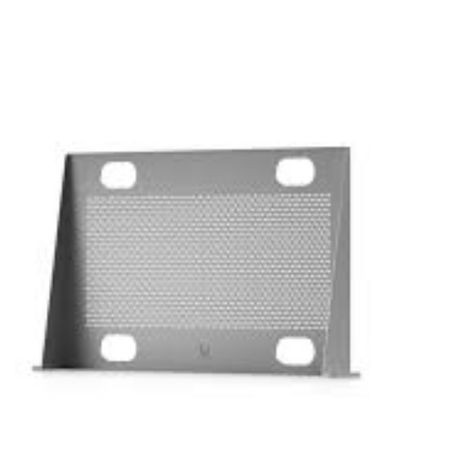

Ubiquiti UACC-Rack-Shelf-CLV 1U Fixed Cantilever Rack Shelf for 19 Racks
Overview
The Ubiquiti UACC-Rack-Shelf-CLV is a 1U fixed cantilever rack shelf designed for mounting non-rackmount devices in standard 19-inch equipment racks. It provides a supported platform for equipment that does not have an integrated rack-mount form factor.
Rack Compatibility
The shelf is designed for standard 19-inch racks and uses a 1U rack height. Its cantilever configuration provides a fixed horizontal mounting surface for compatible non-rackmount equipment.
Construction and Capacity
The UACC-Rack-Shelf-CLV is constructed from cold rolled carbon steel (SPCC). It measures 481.4 × 250 × 44 mm and has a maximum weight capacity of 20 kg (44 lb).
Key Features
- 1U fixed cantilever rack shelf
- Designed for standard 19-inch racks
- Supports non-rackmount devices
- 20 kg (44 lb) maximum weight capacity
- Cold rolled carbon steel (SPCC) construction
Applications
The shelf is intended for rack deployments where non-rackmount equipment needs to be installed within a standard 19-inch rack. Before installation, verify that the device dimensions, mounting arrangement, and total equipment weight are within the shelf's supported limits.
DC Supplies Product Note
Confirm that the rack provides a compatible 19-inch mounting position and that the equipment placed on the shelf does not exceed the 20 kg maximum load. Allow sufficient clearance around the installed equipment for ventilation, cabling, and service access.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-Rack-Shelf-CLV |
| Product Type | Fixed Cantilever Rack Shelf |
| Rack Unit Height | 1U |
| Rack Width | 19 in |
| Rack Type | Standard 19-inch rack |
| Mounting Type | Fixed cantilever |
| Supported Equipment | Non-rackmount devices |
| Maximum Weight Capacity | 20 kg (44 lb) |
| Dimensions | 481.4 × 250 × 44 mm (19 × 9.8 × 1.7") |
| Enclosure Material | Cold rolled carbon steel (SPCC) |
| Weight | 2.5 kg (5.5 lb) |
Frequently Asked Questions
What is the UACC-Rack-Shelf-CLV?
It is a 1U fixed cantilever rack shelf for mounting non-rackmount devices in standard 19-inch racks.
What rack size does this shelf fit?
The shelf is designed for standard 19-inch equipment racks.
How much weight can the shelf support?
The maximum specified weight capacity is 20 kg (44 lb).
What is the shelf made from?
The shelf is constructed from cold rolled carbon steel (SPCC).
How much rack space does it occupy?
The UACC-Rack-Shelf-CLV occupies 1U of rack space.
What type of equipment is it designed to hold?
It is designed to provide rack-mounted support for compatible non-rackmount devices.
