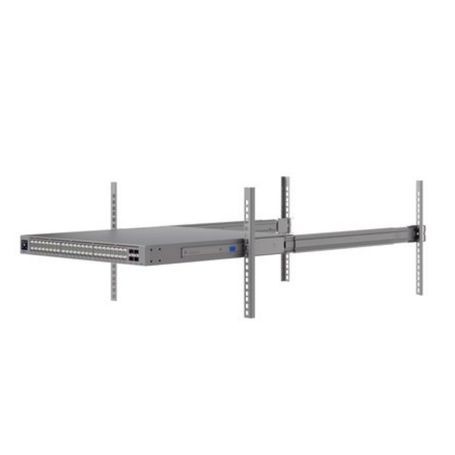

Ubiquiti UACC-RACK-RAILS-SLIDE – UniFi Sliding Rack Rails
Overview
The Ubiquiti UACC-RACK-RAILS-SLIDE is a set of adjustable sliding rails designed for compatible UniFi rack-mount equipment installed in 4-post racks. The rails use a ball-bearing sliding mechanism to provide smooth equipment movement for installation, servicing, and maintenance without requiring the entire rack-mounted device to be removed from the rack. The rails support rack depths from 600 to 1066 mm (23.6 to 42 inches) and have a maximum supported equipment load of 45 kg (99 lb). They are constructed from SGCC steel and are specified for square mounting holes.
Technical Information
The UACC-RACK-RAILS-SLIDE measures 625 x 43 x 21 mm and weighs 2.5 kg. Its ball-bearing sliding mechanism is designed for controlled extension of supported rack equipment during installation and service work. The rail system is designed specifically for compatible UniFi rack-mount products rather than serving as a universal rack shelf. Supported equipment includes selected UniFi switches, UNAS storage systems, UPS-2U, and compatible Ubiquiti rack cabinets.
Rack Compatibility
The rails are designed for 4-post racks with square mounting holes and an adjustable depth range of 600–1066 mm. They are not specified for 2-post racks or rack systems using incompatible mounting-hole configurations. Compatible UniFi equipment documented by current listings includes USW-Pro-XG-24, USW-Pro-XG-24-PoE, USW-Pro-XG-48, USW-Pro-XG-48-PoE, USW-Pro-HD-24, USW-Pro-HD-24-PoE, USW-Pro-XG-10-PoE, USW-Pro-XG-Aggregation, UNAS-Pro-8, UNAS-Pro-4, and UPS-2U. Compatibility also includes selected Ubiquiti 42U rack cabinets.
Applications
Rack mounting compatible UniFi switches Installation of supported UniFi storage equipment Installation of compatible UPS-2U equipment Service access for rack-mounted network hardware Data-center and equipment-room rack deployments Four-post square-hole rack installations Rack systems requiring adjustable equipment depth
Key Features
Adjustable sliding rails for compatible UniFi rack-mount equipment Supports 4-post racks with 600–1066 mm (23.6–42 in.) depth Ball-bearing mechanism provides smooth equipment sliding Supports equipment loads up to 45 kg (99 lb) SGCC steel construction with 625 x 43 x 21 mm dimensions
DC Supplies Product Note
The Ubiquiti UACC-RACK-RAILS-SLIDE is a mechanical rack-mount accessory, not a power supply, network switch, UPS, or active networking device. It provides adjustable sliding support for compatible rack-mounted equipment and does not provide electrical power or network connectivity.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Model | UACC-Rack-Rails-Slide |
| Product Type | UniFi Sliding Rack Rails |
| Rack Type | 4-post |
| Mounting Hole Type | Square |
| Supported Rack Depth | 600–1066 mm (23.6–42 in.) |
| Maximum Weight Capacity | 45 kg (99 lb) |
| Sliding Mechanism | Ball-bearing |
| Construction Material | SGCC steel |
| Dimensions | 625 x 43 x 21 mm (24.6 x 1.7 x 0.8 in.) |
| Weight | 2.5 kg (5.5 lb) |
| Compatible Equipment | Selected UniFi switches, UNAS systems, UPS-2U, and compatible Ubiquiti rack cabinets |
| Compatible Switches | USW-Pro-XG-24, USW-Pro-XG-24-PoE, USW-Pro-XG-48, USW-Pro-XG-48-PoE, USW-Pro-HD-24, USW-Pro-HD-24-PoE, USW-Pro-XG-10-PoE, USW-Pro-XG-Aggregation |
| Compatible Storage | UNAS-Pro-8, UNAS-Pro-4 |
| Compatible UPS | UPS-2U |
| Compatible Rack Cabinets | UACC-Rack-42U-800-P, UACC-Rack-42U-800-G, UACC-Rack-42U-1000-P, UACC-Rack-42U-1000-G |
FAQs
What is the Ubiquiti UACC-RACK-RAILS-SLIDE?
The UACC-RACK-RAILS-SLIDE is an adjustable sliding rail system for compatible UniFi rack-mount equipment installed in 4-post racks.
What rack depth does it support?
The rails support rack depths from 600 to 1066 mm (23.6 to 42 inches).
What is the maximum load capacity?
The specified maximum load capacity is 45 kg (99 lb).
What type of rack does it fit?
It is specified for 4-post racks with square mounting holes.
What sliding mechanism does it use?
The rails use a ball-bearing sliding mechanism.
What are the rails made from?
The rails use SGCC steel construction.
What are the dimensions?
The UACC-RACK-RAILS-SLIDE measures 625 x 43 x 21 mm (24.6 x 1.7 x 0.8 inches).
How much do the rails weigh?
The rails weigh 2.5 kg (5.5 lb).
Which UniFi equipment is compatible?
Current compatibility documentation includes selected UniFi Pro XG and Pro HD switches, UNAS-Pro-8, UNAS-Pro-4, UPS-2U, and selected Ubiquiti 42U rack cabinets. Compatibility should be checked against the specific equipment model before installation.
