Overview

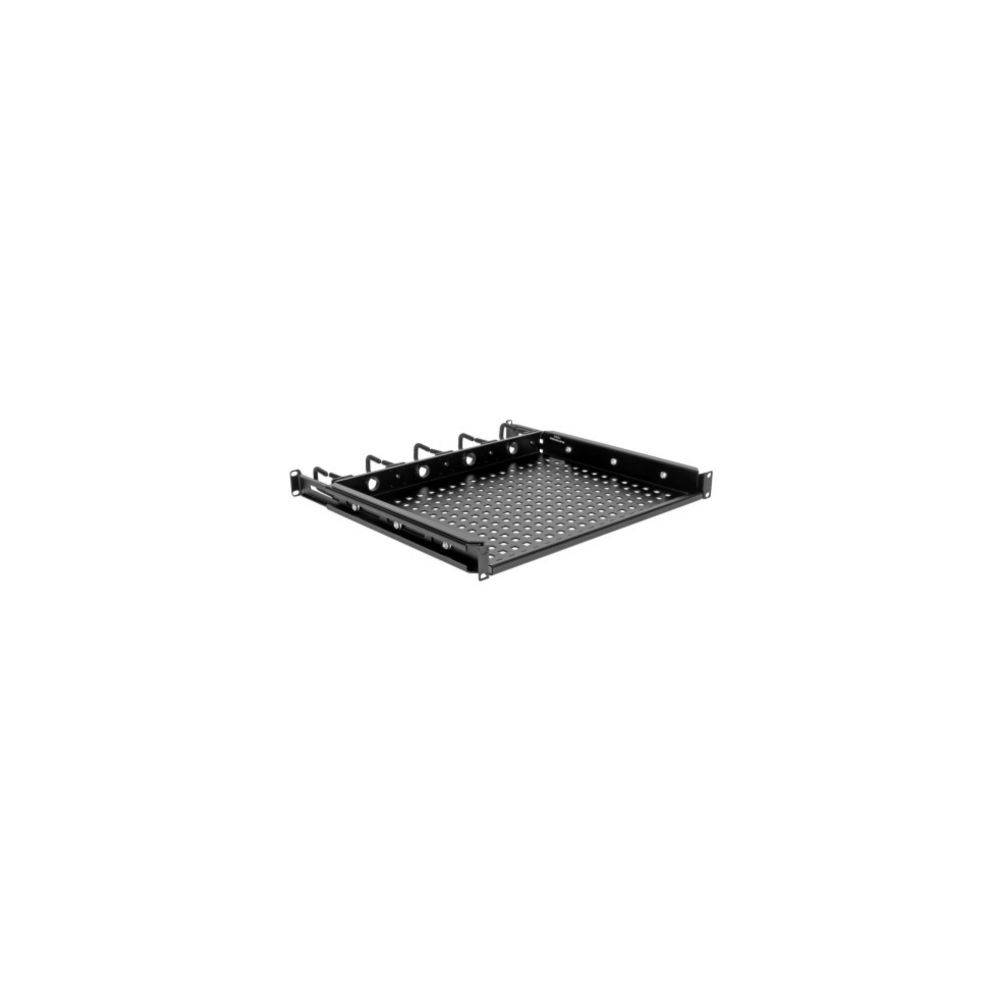

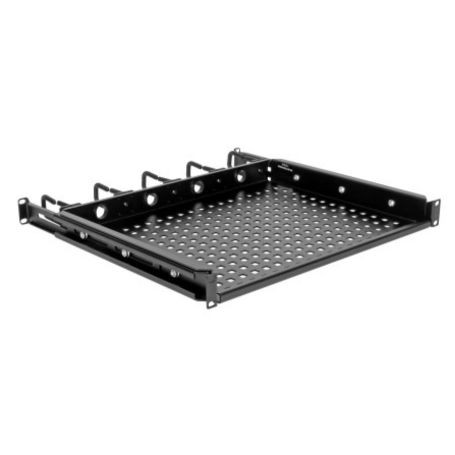

The Eaton Tripp Lite SRWSHELF4P1U is a SmartRack 1U cantilevered steel rack shelf designed to mount non-rack equipment inside EIA-standard 19-inch enclosures and open-frame racks. Its 14.2-inch rack depth and 50 lb load capacity provide a dedicated platform for equipment such as power strips, small PDUs, wireless access points, monitors, and other devices that are not designed for direct rack mounting.
Technical Information
The shelf uses heavy-duty cold-rolled steel with a black powder-coated finish. Its vented surface includes square mounting holes that accept cage nuts for flexible equipment installation. Adjustable mounting rails allow the shelf to occupy 1U of rack space, while integrated cable management rings provide a dedicated route for securing connected cables.
Compatibility
The SRWSHELF4P1U is designed for EIA-standard 19-inch rack enclosures and open-frame racks with available 1U mounting space. It is intended for non-rack equipment within the shelf's 50 lb maximum load rating. Rack-mounting hardware is included.
Key Features
- 1U cantilevered rack shelf for non-rack equipment
- 50 lb (22.2 kg) maximum load capacity
- 14.2-inch rack depth with 19-inch rack width
- Vented and perforated surface with square mounting holes
- Integrated cable management rings
Applications
- Mounting power strips and small PDUs inside racks
- Supporting wireless access points and other network equipment
- Providing a rack platform for non-rackmount devices
- Organizing equipment in data center and server room racks
- Adding usable equipment space to open-frame rack installations
DC Supplies Product Note
The perforated shelf surface accepts cage nuts, allowing equipment to be secured directly to the shelf rather than simply resting on it. When planning an installation, keep the total equipment weight at or below the specified 50 lb maximum capacity and account for the shelf's 14.2-inch rack depth.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | SRWSHELF4P1U |
| Product Type | Cantilevered Rack Shelf |
| Series | SmartRack |
| Rack Height | 1U |
| Rack Width | 19 in. |
| Rack Depth | 14.2 in. |
| Maximum Load Capacity | 50 lb (22.2 kg) |
| Material | Cold-rolled steel (CRS) |
| Finish / Color | Black powder coat |
| Surface | Vented and perforated |
| Mounting Holes | Square holes for cage nuts |
| Cable Management | Integrated cable management rings |
| Mounting Type | Rack mount |
| Unit Dimensions | 1.70 x 18.90 x 17.83 in. |
| Unit Weight | 11.02 lb (5.00 kg) |
| Compliance | RoHS; EIA/ECA-310-E |
| UPC | 037332225016 |
| Warranty | 5-year limited warranty |
Package Contents
- SRWSHELF4P1U Cantilevered Steel Rack Shelf, 1U
- Rack-mounting hardware
FAQs
What rack size does the SRWSHELF4P1U fit?
It is designed for EIA-standard 19-inch rack enclosures and open-frame racks and occupies 1U of rack space.
How much weight can the shelf support?
The maximum load capacity is 50 lb (22.2 kg).
Is the shelf suitable for equipment that is not rackmountable?
Yes. It is specifically designed to provide rack space for non-rack equipment such as power strips, small PDUs, wireless access points, monitors, and other IT devices.
Does the shelf provide ventilation?
Yes. The shelf has a vented, perforated surface designed to promote airflow around supported equipment.
Does it include rack-mounting hardware?
Yes. Rack-mounting hardware is included with the shelf.
