Detailed Specifications

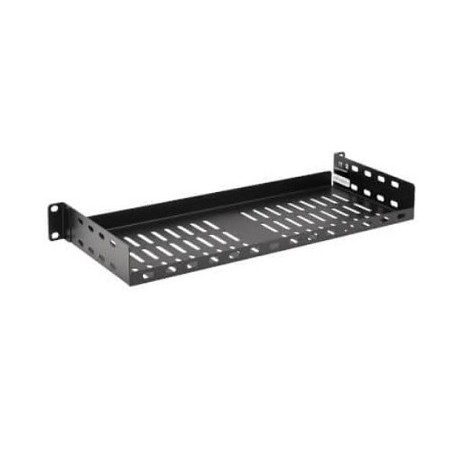

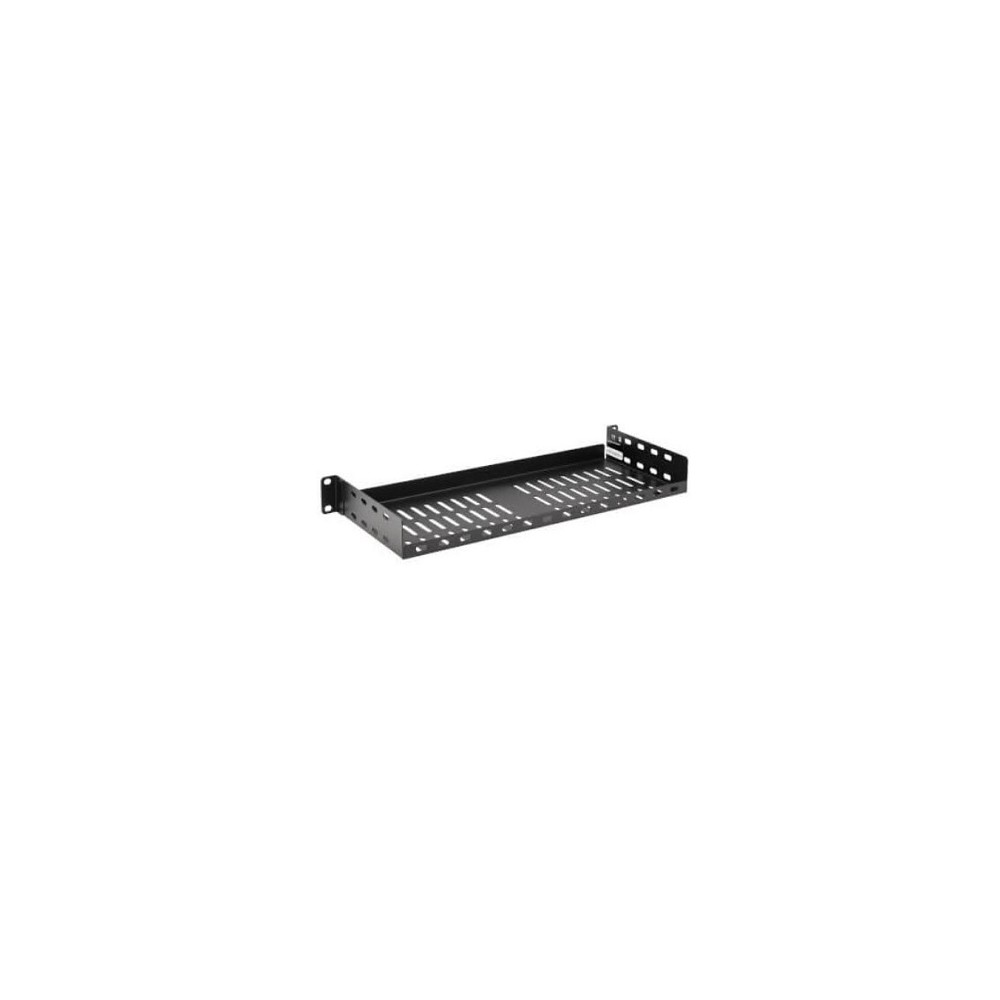

Eaton SRSHELF2P1USHRT 1U Vented Cantilever Fixed Rack Shelf 7.3 in. Deep Compatible Tripp Lite
Overview :
The Eaton SRSHELF2P1USHRT is a SmartRack 1U Cantilever Fixed Steel Rack Shelf designed to support non-rack-mount equipment such as monitors, wireless access points, tower units, routers and other IT equipment. Eaton identifies the product as part of its Tripp Lite series.
The shelf occupies 1U of standard EIA 19-inch rack space and has a 7-inch-deep vented design that promotes airflow around installed equipment. Its heavy-duty cold-rolled steel construction supports a maximum load of 40 lb. (18 kg). It is compatible with both 2-post and 4-post racks and includes the required mounting hardware.
Two SRSHELF2P1USHRT shelves can also be installed back-to-back to create a deeper shelf while using the same 1U rack space, making it suitable for compact server rooms, network closets and data-center installations.
Key Features :
- 1U cantilever fixed rack shelf
- Vented design promotes equipment airflow
- 7-inch-deep shelf
- Supports loads up to 40 lb. (18 kg)
- Heavy-duty cold-rolled steel construction
- Black powder-coated finish
- Compatible with 2-post and 4-post racks
- Fits standard EIA 19-inch rack space
- Can support monitors, wireless access points, tower units and other IT equipment
- Two shelves can be installed back-to-back for greater shelf depth
- Includes mounting hardware
- 5-year limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Product Line | SmartRack |
| Part Number | SRSHELF2P1USHRT |
| Product Type | Rack Shelf |
| Rack Height | 1U |
| Rack Compatibility | 2-post and 4-post |
| Rack Standard | EIA-standard 19-inch |
| Shelf Type | Cantilever Fixed Shelf |
| Shelf Design | Vented |
| Maximum Weight Capacity | 40 lb. (18 kg) |
| Material | Cold-rolled steel |
| Finish | Black powder coat |
| Depth | 7.31 in. |
| Width | 18.99 in. |
| Height | 1.73 in. |
| Weight | 2.5 lb |
