Detailed Specifications

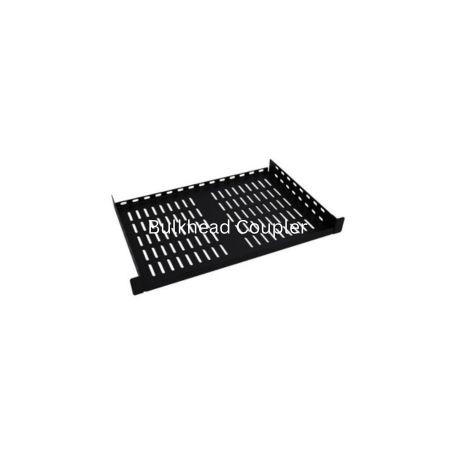

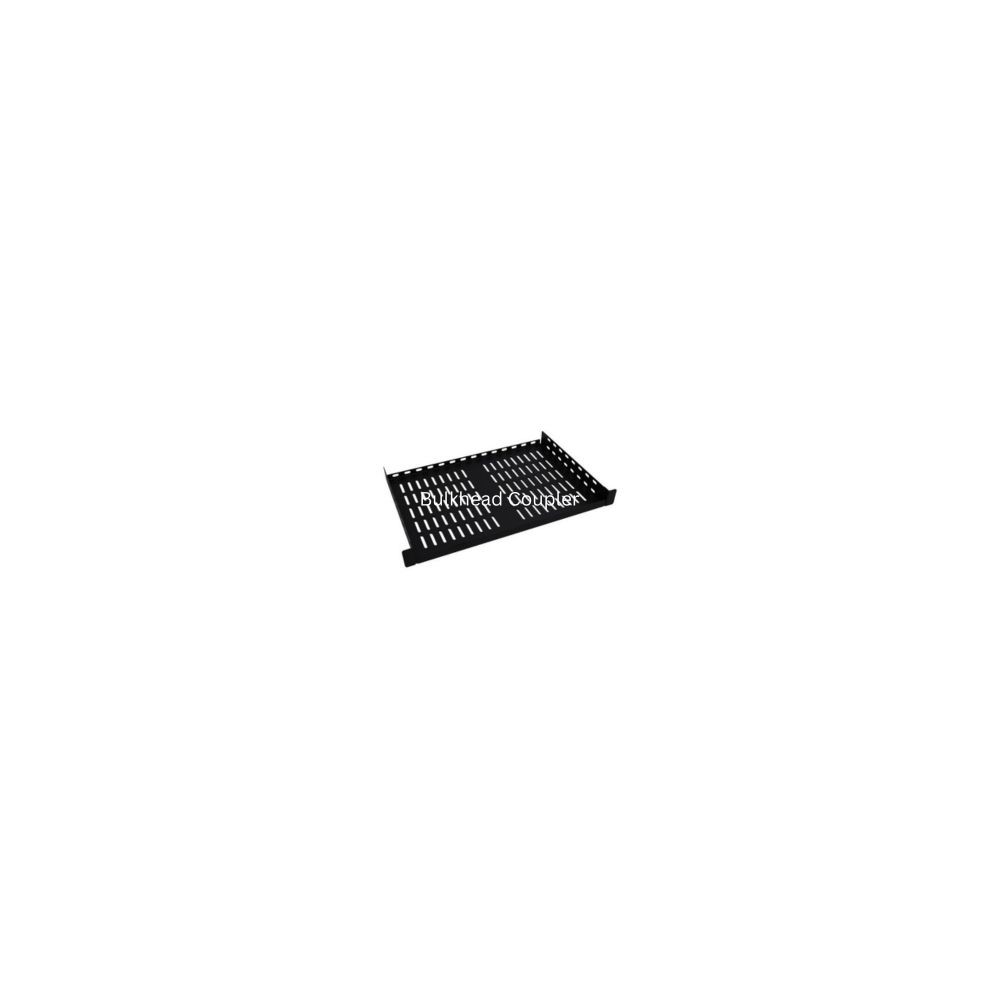

Eaton SRSHELF2P1UTM Tripp Lite Smart Rack 1U Tool less Cantilever Fixed Shelf
Overview:
The Eaton SRSHELF2P1UTM / Tripp Lite SmartRack is a 1U fixed cantilever rack shelf designed to add equipment storage to compatible rack enclosures and four-post racks. It supports up to 30 lb (13.6 kg) and provides a 12-inch-deep steel platform for monitors and other non-rackmountable equipment.
The shelf uses snap-in toolless mounting, eliminating the need for separate mounting hardware or tools during installation. It is constructed from cold-rolled steel with a black finish and uses a 19-inch rack-width format.
For two-post applications, two SRSHELF2P1UTM shelves can be installed back-to-back to create a deeper fixed shelf arrangement. The shelf is also compatible with four-post rack enclosures.
Key Features :
- 1U cantilever fixed shelf provides rack-mounted storage for non-rackmountable equipment.
- 30 lb / 13.6 kg load capacity for monitors and other compatible equipment.
- 12-inch / 305 mm shelf depth within a standard 19-inch rack footprint.
- Toolless snap-in mounting enables quick installation in compatible square-hole racks.
- Cold-rolled steel construction with black finish and a 5-year limited warranty.
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite by Eaton |
| Model | SRSHELF2P1UTM |
| Series | SmartRack |
| Product Type | Fixed Rack Shelf |
| Rack Height | 1U |
| Mounting Type | Cantilever |
| Mounting Method | Toolless / Snap-In |
| Rack Width | 19 in |
| Shelf Depth | 12 in / 305 mm |
| Product Width | 19 in / 482.6 mm |
| Product Height | 1.75 in / 44.45 mm |
| Product Depth | 12 in / 304.8 mm |
| Maximum Load Capacity | 30 lb / 13.6 kg |
| Material | Cold-Rolled Steel |
| Finish | Black |
| Rack Compatibility | 4-Post Racks |
| 2-Post Configuration | Two shelves can be mounted back-to-back |
| Product Weight | 3.5 lb / 1.6 kg |
| Compliance | EIA-310-E, RoHS |
| Warranty | 5-Year Limited |
| UPC | 037332185532 |
