Detailed Specifications

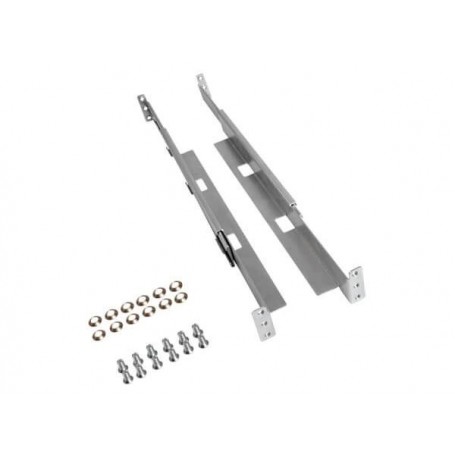

Eaton 4POSTRAILKITWM 4-Post 1U Universal Adjustable Rack Shelf Kit Tripp Lite
Overview :
The Eaton 4POSTRAILKITWM is a heavy-duty 4-post 1U adjustable rack-mount shelf kit designed for 19-inch wall-mount racks and enclosures. It provides additional front-to-rear equipment support for heavy UPS systems, PDUs, and other rack-mounted equipment.
The rails adjust from 14.5 to 23.5 inches to accommodate different equipment depths and support rectangular chassis up to 17.5 inches wide. The kit has a 150 lb / 68 kg load rating and leaves the rack's front and rear mounting positions available for equipment installation.
Key Features :
- 1U 4-post universal adjustable rack shelf kit
- Designed for 19-inch wall-mount racks and enclosures
- Adjustable mounting depth from 14.5–23.5 in.
- Supports equipment with up to 17.5 in. wide rectangular chassis
- Maximum combined load rating of 150 lb / 68 kg
- Cold-rolled steel construction
- Durable powder-coated finish
- Front-to-rear equipment support
- Compatible with square-hole racks using included hardware
- Threaded-hole rack installation supported with user-supplied hardware
- Leaves front and rear rack mounting holes available
- 5-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | 4POSTRAILKITWM |
| Product Type | Rack-Mount Shelf / Rail Kit |
| Rack Space | 1U |
| Rack Type | 19-inch, 4-post wall-mount |
| Mounting Depth | 14.5–23.5 in. |
| Maximum Load | 150 lb / 68 kg |
| Supported Chassis Width | Up to 17.5 in. |
| Material | Cold-rolled steel |
| Finish | Powder-coated |
| Rack Hole Type | Square-hole; threaded-hole with user-supplied hardware |
| Color | Silver |
| Compliance | RoHS |
