Detailed Specifications

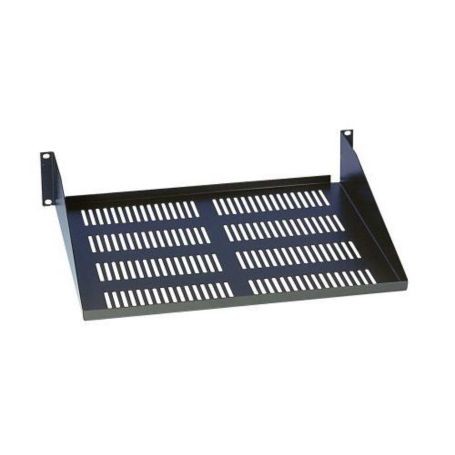

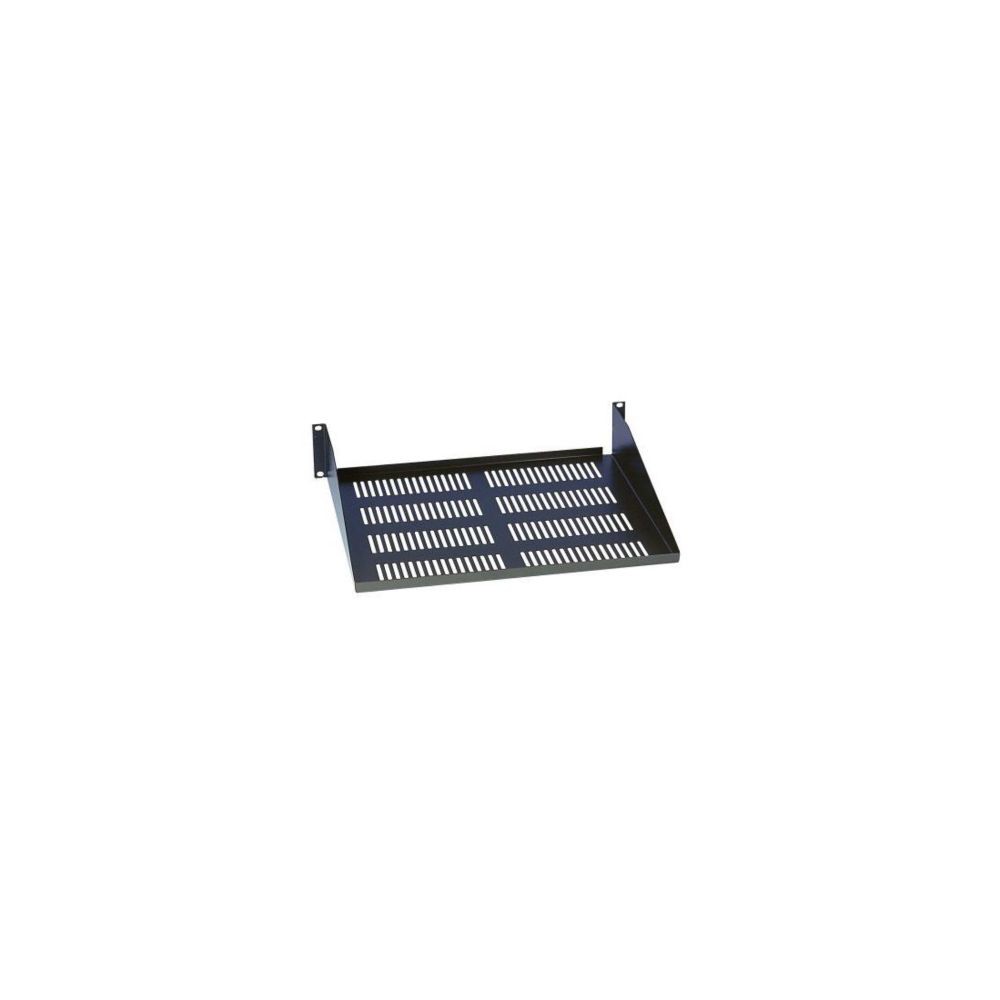

Eaton SRSHELF2P Tripp Lite Smart Rack 2U Cantilever Fixed Rack Shelf
Overview
The Eaton SRSHELF2P is a Tripp Lite by Eaton SmartRack 2U cantilever fixed rack shelf designed to support monitors, networking equipment, and other non-rackmount equipment in standard rack environments. It supports a maximum load of 60 lb (27.2 kg) and is compatible with both 2-post and 4-post rack enclosures.
The shelf uses cold-rolled steel with a black finish and has an approximately 18-inch usable depth. In a 2-post rack, two SRSHELF2P shelves can be installed back-to-back to create a deeper fixed shelf arrangement. Required mounting hardware is included.
Key Features
- 2U cantilever fixed shelf for rack-mounted equipment
- Supports up to 60 lb (27.2 kg) of equipment
- Compatible with 2-post and 4-post rack enclosures
- 18-inch deep cold-rolled steel construction with black finish
- Includes required rack mounting hardware; 5-year limited warranty
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Product Line | Tripp Lite by Eaton SmartRack |
| Part Number | SRSHELF2P |
| Product Type | Fixed Rack Shelf |
| Shelf Type | Cantilever |
| Rack Height | 2U |
| Rack Compatibility | 2-post and 4-post |
| Shelf Depth | 18 in / 457 mm |
| Construction | Cold-rolled steel |
| Finish | Black |
| Maximum Load Capacity | 60 lb / 27.2 kg |
| Mounting | Cantilever |
| Mounting Hardware | Included |
| Unit Dimensions (H × W × D) | 3.46 × 18.99 × 17.91 in |
| Product Weight | 5 lb |
| Shipping Dimensions | 4 × 20 × 21 in |
| Shipping Weight | 9 lb |
| Compliance | RoHS, EIA-310-E |
| UPC | 037332144614 |
| Warranty | 5-year limited |
