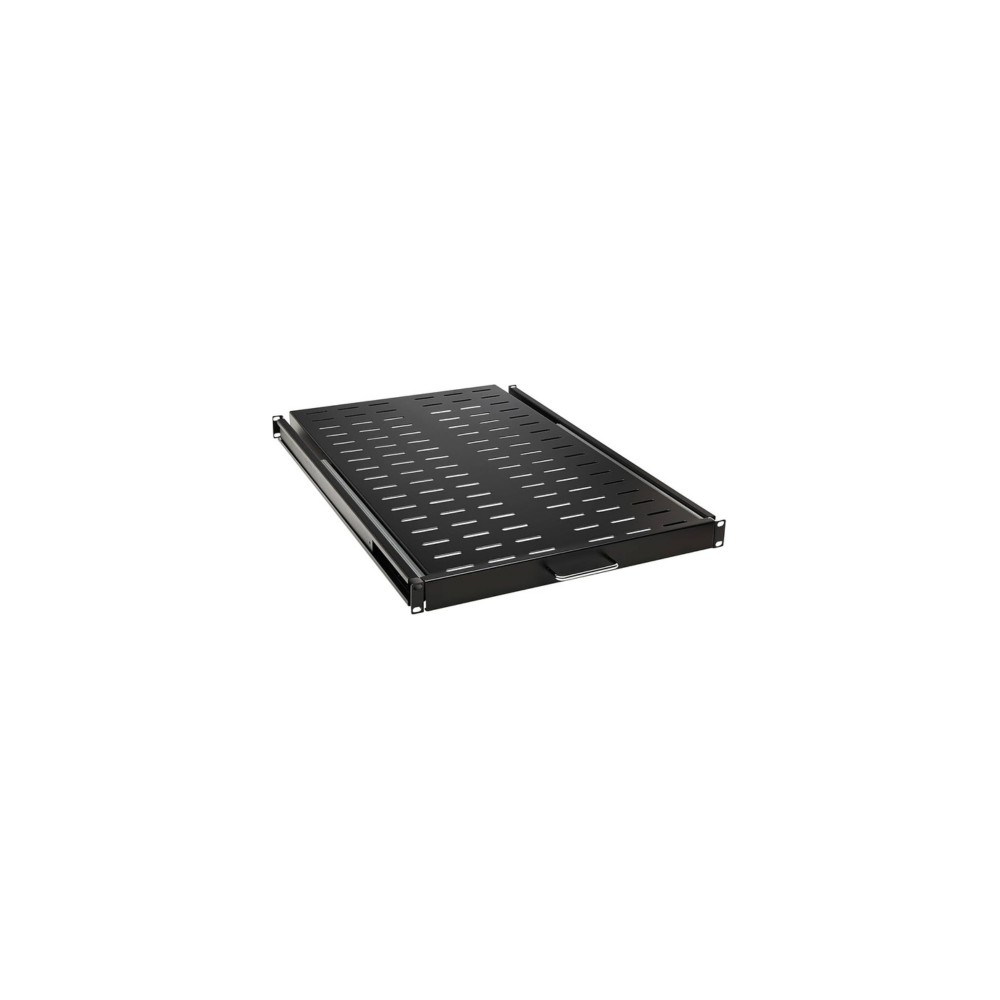

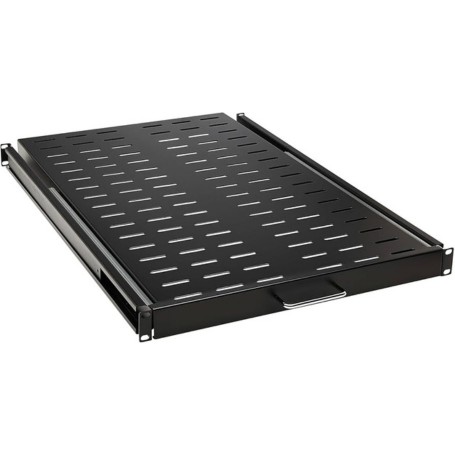

Eaton SRSHELF4PSLVENT Sliding Rack Shelf

Overview :

The Eaton Tripp Lite series SRSHELF4PSLVENT is a commercial-grade, heavy-duty sliding rack shelf built for dense data center environments and server rooms. System administrators, network architects, and IT infrastructure procurement teams integrate this components to securely house non-rack-mountable hardware within standardized enclosures. It effectively solves space-optimization challenges by allowing technicians to install tower units, monitors, wireless access points, and test equipment while maintaining fluid workspace transitions.

Constructed from cold-rolled steel, this 1U sliding shelf handles heavy structural loads up to 50 pounds without bending or impacting mechanical rail movement. Its primary technical capability centers on a fully extendable ball-bearing slide assembly that pulls out smooth for rapid equipment configuration, testing, and cable maintenance. The flat surface features an engineered ventilation pattern that allows continuous vertical airflow throughout the server cabinet, preventing localized thermal pockets and ensuring passive heat dissipation.

This high-density rack accessory is optimized for deployment in 4-post open frame racks and enclosed server cabinets within central corporate data centers, edge computing stations, and localized network closets. The infrastructure integrates adjustable mounting brackets to accommodate varying installation depths. Standard mounting hardware, including M6 cage nuts, screws, and cup washers, is shipped with the unit to streamline physical implementation.

Compatibility is restricted to standard 19-inch electronic equipment racks with a front-to-rear rail separation distance between 28 inches and 46 inches. Do not deploy this hardware mechanism in 2-post relay racks, wall-mount brackets, or shallow telco enclosures that lack rear vertical support rails. Do not exceed the maximum 50-pound static load threshold, as overloading will compromise the ball-bearing track alignment and risk structural drop damage to internal components.

Key Features :

• Vented structural surface maximizes airflow to prevent localized heat buildup.

• Smooth ball-bearing slides extend fully to allow unhindered device maintenance.

• Expandable mounting rails adjust easily to fit various 4-post depth configurations.

• Heavy-duty cold-rolled steel design safely supports hardware payloads up to 50 lbs.

• Slim 1U form factor saves vertical mounting space inside crowded enclosures.

Specifications :
