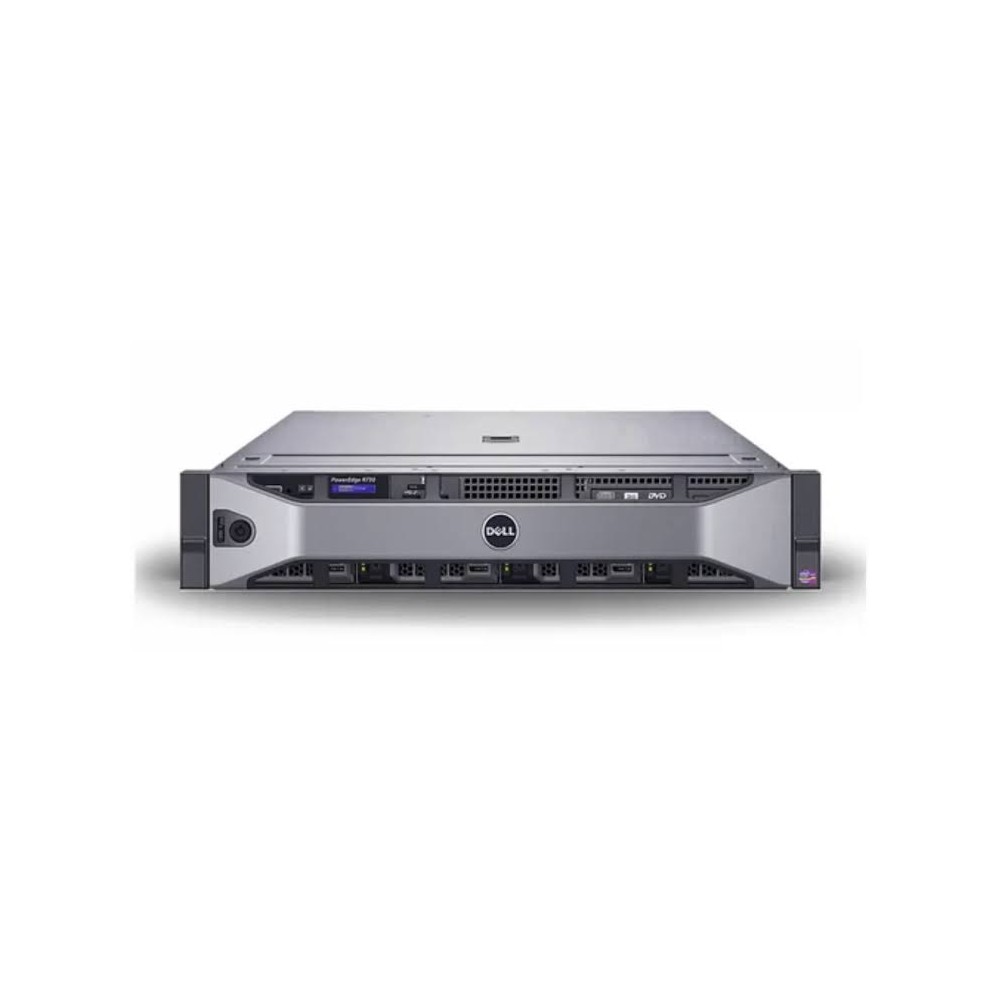

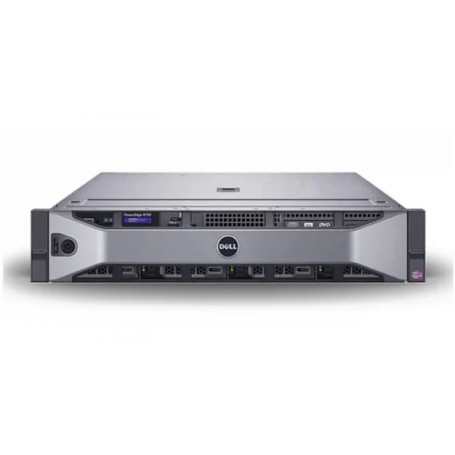

The Dell R720 PowerEdge is a 2U rack server designed for enterprise computing environments requiring scalable processing, memory, storage, and expansion capabilities. The platform supports dual Intel Xeon E5-2600 series processors, 24 DDR3 DIMM slots, PCI Express 3.0 expansion, configurable RAID controllers, and hot-plug storage options.
Processing Architecture
The Dell R720 provides two processor sockets for Intel Xeon E5-2600 and E5-2600 v2 processors. The dual-socket architecture allows the system to scale processing resources for virtualization, databases, enterprise applications, and compute-intensive workloads.
Memory and PCIe Expansion
The server provides 24 DIMM slots supporting DDR3 ECC memory. Depending on the selected memory configuration, the platform supports registered, unbuffered, and load-reduced DIMMs. PCI Express 3.0 expansion slots accommodate compatible storage, networking, and accelerator hardware.
Storage and RAID
The R720 supports hot-plug drive configurations using 2.5-inch or 3.5-inch drive bays. Dell PERC storage controller options include the H310, H710, and H710P for configurable hardware RAID implementations.
Networking and Remote Management
Networking can be configured with integrated 1GbE and 10GbE adapters. Dell iDRAC7 with Lifecycle Controller provides remote hardware monitoring, configuration, deployment, and management functions.
Key Features
- 2U enterprise rack server with two processor sockets
- Intel Xeon E5-2600 and E5-2600 v2 processor support
- 24 DDR3 ECC DIMM slots
- PCI Express 3.0 expansion capability
- Hot-plug storage and Dell PERC RAID controller options
Applications
The Dell R720 PowerEdge can be used for virtualization, database services, enterprise applications, file services, infrastructure workloads, and compute environments requiring expandable processing and memory capacity.
DC Supplies Product Note
The R720 is a configurable server platform. Processor models, RAM, storage drives, RAID controllers, network adapters, and power supplies can vary by system configuration and should be verified for the specific unit being purchased.
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number / MPN | R720 |
| Product Type | 2U Rack Server |
| Processor Family | Intel Xeon E5-2600 / E5-2600 v2 |
| Processor Sockets | 2 |
| Chipset | Intel C602 |
| Memory Type | DDR3 ECC |
| DIMM Slots | 24 |
| Maximum Memory | Up to 768GB |
| Maximum Memory Speed | Up to 1866MT/s |
| Expansion Interface | PCI Express 3.0 |
| RAID Options | PERC H310, PERC H710, PERC H710P, PERC S110 |
| Drive Options | Up to 16 × 2.5-inch or 8 × 3.5-inch drives |
| Network Options | 1GbE and 10GbE |
| Remote Management | iDRAC7 with Lifecycle Controller |
| Power Supply Options | 495W, 750W, 1100W AC; 1100W DC |
| Form Factor | 2U Rack |
| Height | 87.3mm |
| Width with Rack Latches | 482.4mm |
| Depth with Bezel | 755.8mm |
FAQs
What processors are supported by the Dell R720?
The R720 supports Intel Xeon E5-2600 and E5-2600 v2 processors in a dual-socket configuration.
How many DIMM slots does the Dell R720 have?
The R720 provides 24 DDR3 DIMM slots for scalable ECC memory configurations.
Does the Dell R720 support hot-plug drives?
Yes. Depending on the chassis configuration, the R720 supports hot-plug 2.5-inch or 3.5-inch drives.
Does the Dell R720 support hardware RAID?
Yes. Supported Dell PERC options include the H310, H710, and H710P RAID controllers.
What is the form factor of the Dell R720?
The Dell R720 is a 2U rack-mount server designed for installation in standard server racks.
