Overview

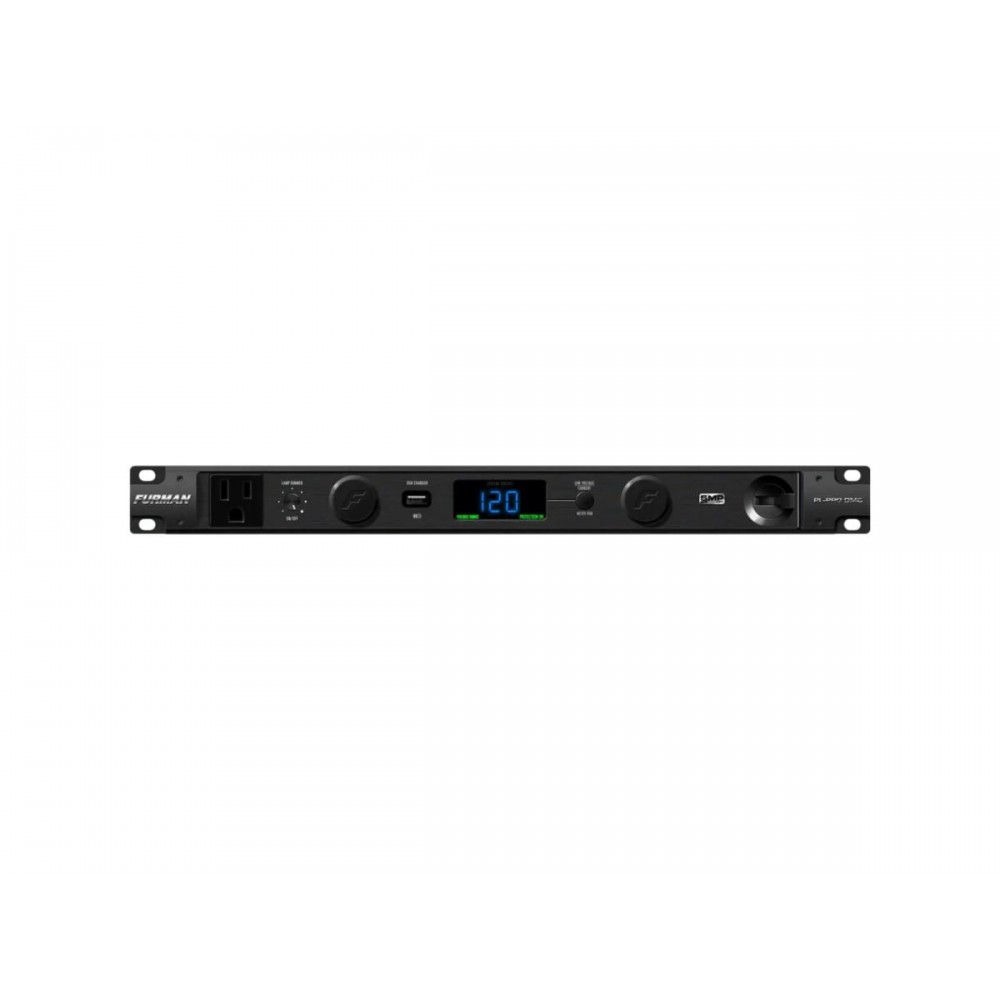

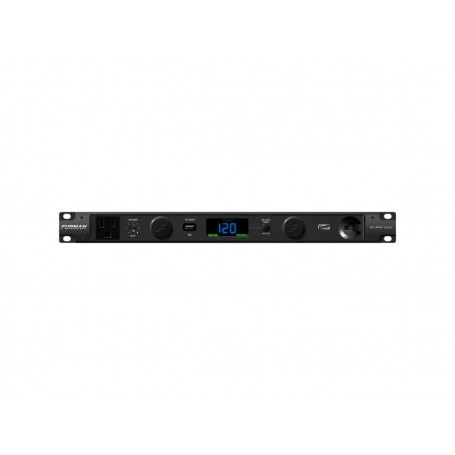

The Furman PL-PRO DMC is a professional 20A rack-mount power conditioner designed for audio systems, recording studios, live sound equipment, and AV installations. It combines surge protection, AC noise filtration, voltage monitoring, and convenient rack illumination in a single rack-width unit. Its digital meter displays incoming line voltage and true RMS current draw, helping users monitor connected equipment's power requirements.
Key Features
- 20A Power Capacity: Designed for compatible 120V AC power systems with a 20-amp current rating.
- Nine AC Outlets: Eight rear-panel outlets and one front-panel convenience outlet.
- Surge Protection: Furman Series Multi-Stage Protection (SMP) helps protect connected equipment from voltage spikes.
- AC Noise Filtration: Linear Filtering Technology (LiFT) reduces unwanted AC line noise.
- Voltage Protection: Extreme Voltage Shutdown (EVS) responds to dangerous voltage conditions.
- Digital Monitoring: Front-panel display shows incoming voltage and true RMS current draw.
- Rack Illumination: Two dimmable, retractable multi-LED lights illuminate rack equipment.
- USB Charging: Front-panel USB charging port for compatible devices.
- Rack-Mount Design: Steel chassis with a brushed and black-anodized aluminum front panel.
Technical Specifications
| Specification | Details |
|---|
| Brand | Furman |
| Part Number / MPN | PL-PRO DMC |
| Product Type | Rack-Mount Power Conditioner |
| Product Series | Classic Series |
| Line Voltage | 120V AC |
| Maximum Current Rating | 20A |
| Number of Outlets | 9 total: 8 rear and 1 front |
| Outlet Protection | All nine outlets linearly filtered and surge protected |
| Isolated Outlet Banks | 2 |
| Surge Protection Technology | Series Multi-Stage Protection (SMP) |
| Noise Filtration Technology | Linear Filtering Technology (LiFT) |
| Voltage Protection | Extreme Voltage Shutdown (EVS) |
| Response Time | 1 nanosecond |
| Maximum Surge Current | 6,500A |
| Overvoltage Shutdown | Typically 140V AC |
| Undervoltage Shutoff | 90V |
| Front-Panel Meter | Digital voltmeter/ammeter |
| Rack Lighting | 2 dimmable retractable multi-LED lights |
| USB Charging | 1 front-panel USB charger |
| Rear Lamp Connector | BNC connector for a compatible rack lamp |
| Rack Ears | Included |
| Dimensions (W × D × H) | 19 × 10.5 × 1.75 inches |
| Weight | 12 lb |
Applications
- Professional Audio: Power and protect compatible mixers, processors, preamps, and other rack-mounted equipment.
- Recording Studios: Organize power distribution and help reduce AC line noise in studio racks.
- Live Sound Systems: Add power monitoring and surge protection to compatible touring and event racks.
- AV Installations: Support rack-mounted audio and audiovisual equipment in studios, venues, and control rooms.
- Instrument Rigs: Centralize power distribution for compatible effects, preamps, and related equipment.
Installation and Compatibility
Mount the PL-PRO DMC in a compatible equipment rack using its included rack ears. Confirm that the installation provides the correct 120V AC supply and a suitable 20A circuit. The product's voltage and plug configuration must match the local electrical system; this 120V model should not be confused with the separate 240V export model. Do not exceed the unit's rated current or the limits of the connected circuit.
Frequently Asked Questions
1. How many outlets does the PL-PRO DMC provide?
It provides nine outlets: eight on the rear panel and one convenience outlet on the front panel.
2. Does it provide voltage and current monitoring?
Yes. Its digital front-panel meter displays incoming line voltage and true RMS current draw.
3. Does it regulate voltage?
No. The PL-PRO DMC provides power conditioning, filtration, surge protection, and extreme-voltage shutdown; it is not a voltage regulator.
4. Are rack lights included?
Yes. It includes two dimmable, retractable multi-LED front-panel lights.
5. Is this the 240V version?
No. This PL-PRO DMC listing refers to the 120V, 20A version. Furman has a separate 240V export model, which has different electrical specifications.
DC Supplies Product Note
Before purchasing, verify the model number, input voltage, outlet and plug configuration, circuit rating, and installation requirements. The PL-PRO DMC is intended for compatible 120V systems; buyers requiring 220–240V operation should select an appropriately rated model. Always follow the manufacturer's installation and electrical safety instructions.
