Detailed Specifications

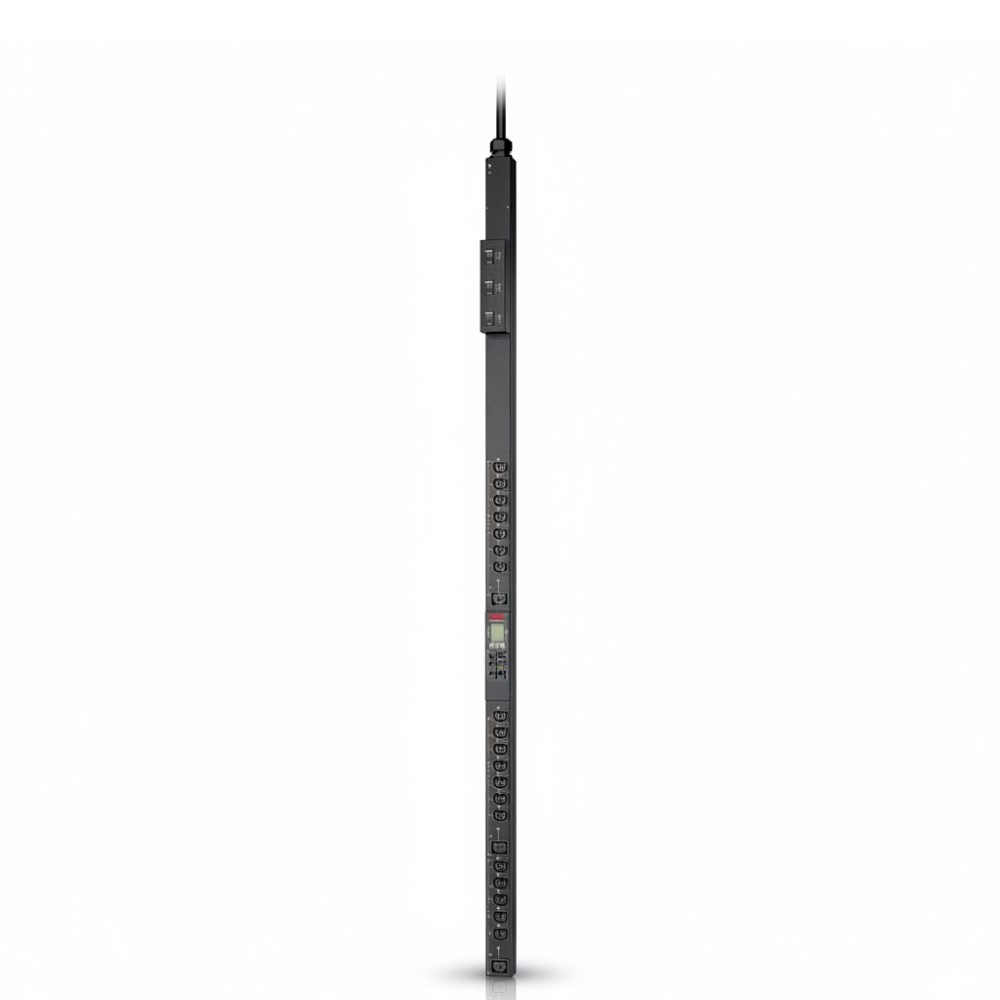

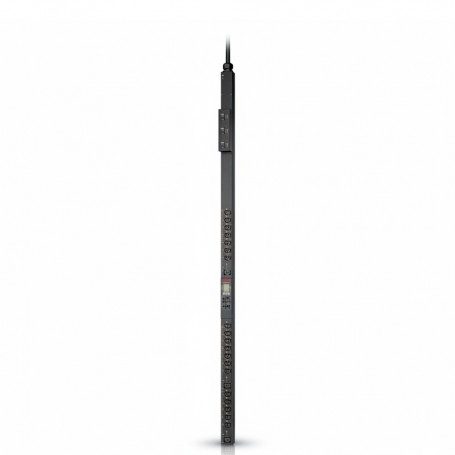

APC APDU10451ME Managed Switched Rack PDU
Overview
The APC APDU10451ME is a managed switched rack power distribution unit intended for controlled AC power delivery in medium-density rack environments. It accepts a single-phase 208 V AC input and supplies 36 IEC receptacles with individual outlet switching and metering for granular control and visibility. Remote management via SNMP, Web, and Telnet is supported for power cycling, load monitoring, and basic integration into network operations. The vertical Zero U form factor installs alongside rack posts without using usable U-space, making it suitable for data center, enterprise, and colocation cabinets requiring managed power distribution.
Key Features
36 switchable IEC outlets
Per-outlet metering & control
Integrated load metering
Zero U vertical rack form factor
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | APDU10451ME |
| Product Type | Managed Switched Rack Power Distribution Unit |
| Input Voltage | 208 V AC |
| Maximum Input Current | 30 A |
| Input Connection | NEMA L6-30P |
| Output Connections | 36 × IEC 60320 (mix of C13 & C19) |
| Switchable Outlets | Individual outlet control |
| Metering | Integrated load & per-outlet metering |
| Management Interfaces | SNMP, Web, Telnet |
| Mounting Type | Zero U vertical rack |
| Height | ~72 in |
| Width | ~2.2 in |
| Depth | ~2.0 in |
| Net Weight | ~16-18 lbs |
