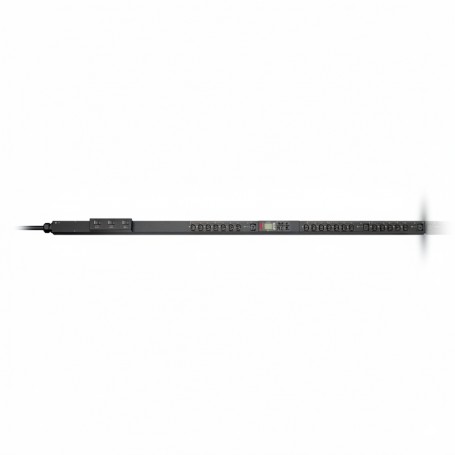

APC APDU10351SM 208 V 3-Phase Switched & Metered Rack PDU
Overview
The APC APDU10351SM is a switched and metered rack power distribution unit designed for dense rack environments where both remote outlet control and comprehensive power metering are required. IT infrastructure, data center, and network power teams deploy this PDU in cabinets feeding servers, network systems, storage, and appliances that benefit from per-outlet control while monitoring load trends, current draw, and phase balance. Its combination of switching and metering enables automated outlet cycling, sequenced power-up, and load awareness without the need for physical access.
Configured for 208 V AC three-phase input with a 30 A feed, the APDU10351SM supports up to 8.6 kW (8600 VA) of load capacity distributed through a dense array of receptacles. The unit's switched outlets can be turned on/off individually or in groups through remote management interfaces, assisting in rapid recovery of hung devices or controlled startup sequences after maintenance events. Metered aggregation gives real-time visibility into volts, amps, kW, and energy consumption, aiding capacity planning and imbalance detection.
The zero-U vertical mount form factor installs alongside standard 19-inch rack posts without consuming usable rack unit space, preserving room for active gear in enterprise, colocation, branch, and edge racks. Dual Ethernet connectivity supports network management card access for remote control, cascading, and redundant network paths. Local display elements provide on-site feedback of critical electrical metrics.
The APDU10351SM does not provide battery backup or uninterrupted ride-through capability. For continuity during utility interruptions or power conditioning, this PDU should be paired with upstream UPS infrastructure. It is not intended as a UPS substitute.
Key Features
• Switched and metered rack PDU for 208 V three-phase feeds
• 8.6 kW (8600 VA) load capacity at 30 A input
• Zero-U vertical mount preserves usable rack space
• Individual outlet control with sequencing capability
• Aggregate metering for volts, amps, power, and energy
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | APDU10351SM |
| Product Type | Switched & Metered Rack PDU |
| PDU Type | Managed, switched + metered outlets |
| Nominal Input Voltage | 208 V AC (three-phase) |
| Maximum Input Current | 30 A |
| Load Capacity | ~8600 VA (8.6 kW) |
| Input Connector | NEMA L21-30P |
| Output Receptacles | 42 × IEC 60320 (C13/C15/C19/C21) |
| Remote Management | Web, SNMP, CLI over Ethernet |
| Metering | Real-time aggregate power, current, voltage, energy |
| Mounting | Zero-U vertical rack |
| Form Factor | Vertical 0U |
| Dimensions (H × W × D) | ~70.1 × 2.20 × 3.0 in |
| Weight | ~17.0 lb |
| Operating Temp | -5 °C to 60 °C |
| Operating Humidity | 5-95 % non-condensing |
