Detailed Specifications

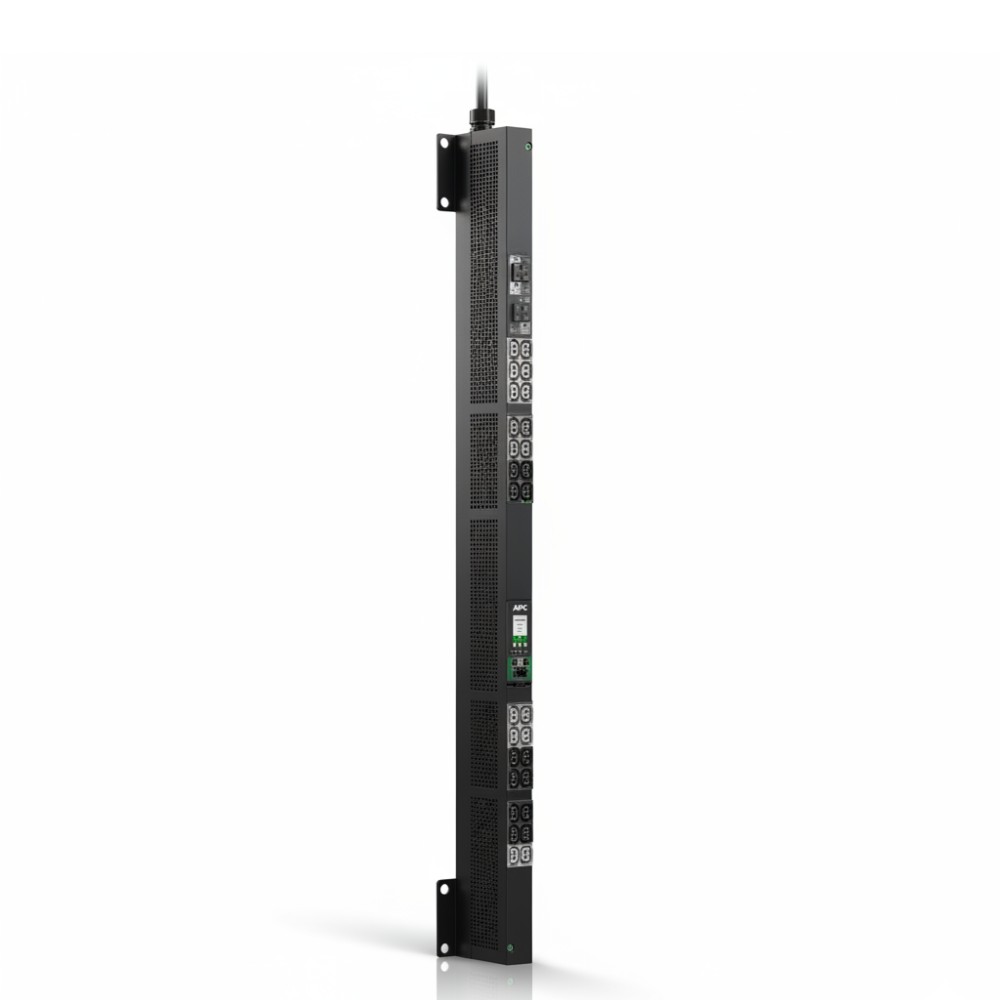

APC APDU10350SW Switched Rack Power Distribution Unit
Overview
The APC APDU10350SW is a switched rack power distribution unit intended to deliver controlled AC power distribution for dense server, networking, and storage cabinets. It accepts a 208 V single-phase input and provides individually switchable outlets with remote management and load metering for granular power control and visibility. The vertical Zero U mounting design installs in the rack's rear channel, preserving usable U-space for equipment. It is used in data center, enterprise, and colocation racks where remote power cycling, load monitoring, and capacity planning are required.
Key Features
42 switchable IEC outlets
Integrated load metering
Remote management via SNMP/Web/Telnet
Zero U vertical rack mount
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | APDU10350SW |
| Product Type | Switched Rack Power Distribution Unit |
| Input Voltage | 208 V AC |
| Maximum Input Current | 30 A |
| Input Connection | NEMA L6-30P |
| Output Connections | 42 × IEC 60320 (mix of C13 & C19) |
| Switchable Outlets | Individually controllable |
| Metering | Integrated load metering |
| Management Interfaces | SNMP, Web, Telnet |
| Mounting Type | Vertical Zero U |
| Dimensions (H × W × D) | ~72 in × 2.2 in × 2.0 in |
| Net Weight | ~18 lbs |
| Operating Temperature | 0 - 40 °C |
