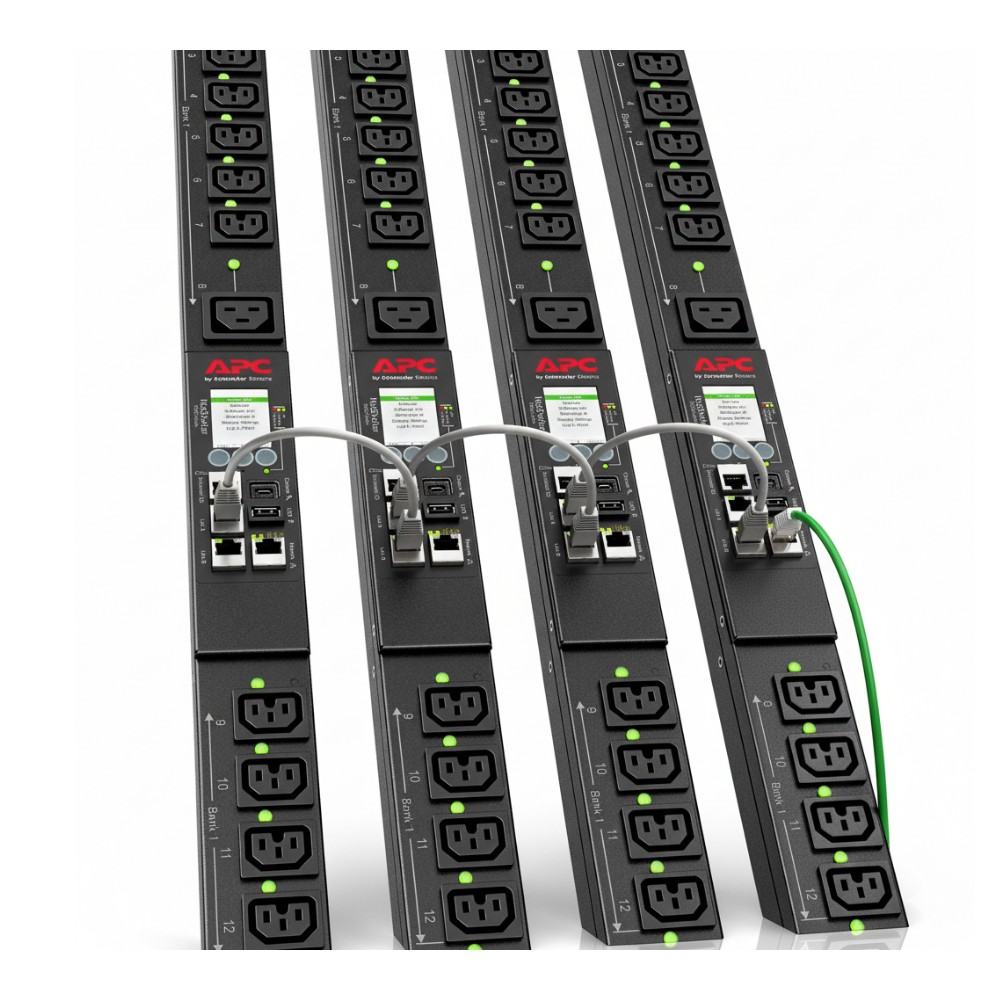

APC APDU9981NA3 Rack PDU 9000 Switched, ZeroU View larger

APC APDU9981NA3 NetShelter Switched Rack PDU 9K series 0U 11.5kW

New

0U switched rack PDU, 11.5 kW / 20 A, 24 controllable outlets
×




  • New

Detailed Specifications

APC APDU9981NA3 NetShelter Switched Rack PDU, 9K series, 0U, 11.5kW

Overview

The APC APDU9981NA3 is a zero-U switched rack power distribution unit from the NetShelter 9000 family, designed for high-density rack installations where space is minimal. It delivers up to 11.5 kW of power and handles 20 A input in 200–240 V or 415 V 3-phase configurations, making it suitable for demanding rack loads. It includes 21 hybrid C13/C15 outlets and 3 hybrid C19/C21 outlets, all of which can be controlled individually (on/off, reboot) and monitored remotely. With per-outlet metering, sequencing, and scheduling, it enables precise power management for servers, networking, and storage equipment in mission-critical environments. The vertical 0U design mounts behind rack posts, preserving valuable rack space while providing full control over connected devices.

Key Features

  • 11.5 kW / 20 A switched output supporting heavy rack loads

  • Zero-U vertical mounting saves usable rack space behind posts

  • 24 hybrid outlets (21 C13/C15 + 3 C19/C21) with per-outlet switching and metering

  • Sequencing, scheduling & remote control for reboot and load balancing

Specifications

SpecificationDetail
Brand APC by Schneider Electric
Part Number APDU9981NA3
Product Type Switched Rack PDU, NetShelter 9000
Input Voltage 200–240 V or 415 V (3-phase)
Maximum Current 20 A
Power Capacity / Load 11.5 kW
Outlets 21 × hybrid C13/C15 + 3 × hybrid C19/C21
Form Factor / Mounting 0U (vertical, behind rack posts)
Per-Outlet Control / Metering Yes — individual switching, metering, sequencing
Scheduling / Sequencing Yes — configurable delays and power-up timing
Warranty 3 years (repair or replace)
