Detailed Specifications

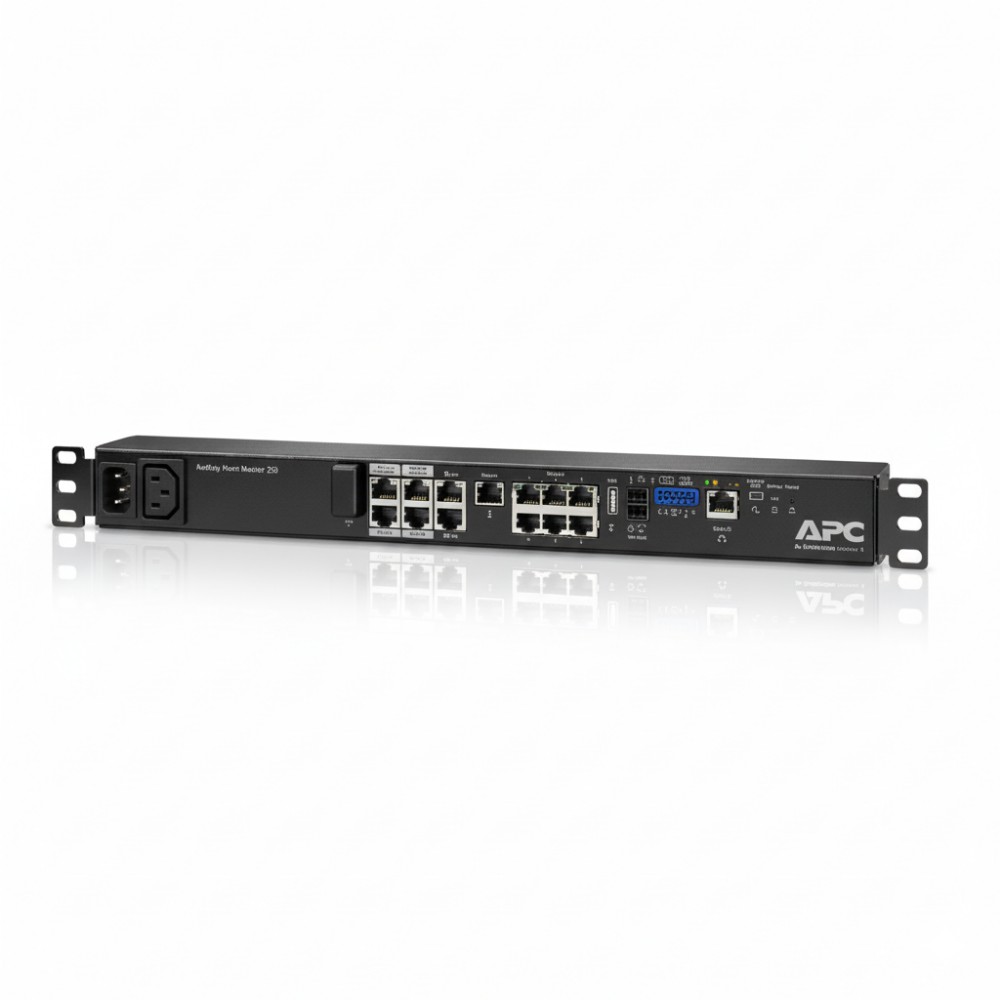

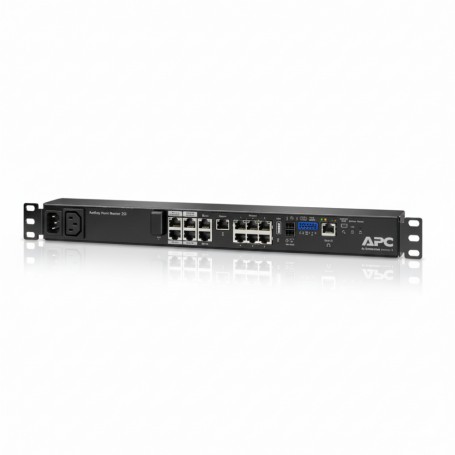

APC NBRK0250 NetBotz Rack Monitor 250
Overview
The APC NBRK0250 is a rack-mounted environmental and physical security monitoring appliance for IT cabinets, server rooms, and data centers. It combines environmental sensing with rack access and alerting functions to detect temperature, humidity, leak, smoke, vibration, and door breaches. The unit supports wired and wireless sensors, and exposes status and events over standard network protocols such as SNMP and HTTP/S for integration into management systems. It occupies 1U of rack space and is used where proactive site monitoring and notification reduce downtime risk.
Key Features
Supports up to 6 wired environmental sensors
Native support for up to 47 wireless sensors
Rack access monitoring for 2 doors
SNMP, Web, Telnet remote management
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | NBRK0250 |
| Product Type | Rack Environmental & Security Monitor |
| Rack Units | 1U |
| Input Voltage | 100-240 V AC |
| Input Frequency | 50/60 Hz |
| Maximum AC Current | 10 A |
| Wired Sensor Ports | 6 |
| Wireless Sensor Support | Up to 47 |
| Network Interface | 100Base-T Ethernet |
| Management Protocols | SNMP, HTTP, HTTPS, Telnet |
| Mounting Type | 19″ rack mount |
| Dimensions (H × W × D) | 44 × 432 × 59 mm |
| Weight | ~1.27 kg |
| Operating Temperature | 0 - 45 °C |
| Operating Humidity | 0 - 95 % non-condensing |
