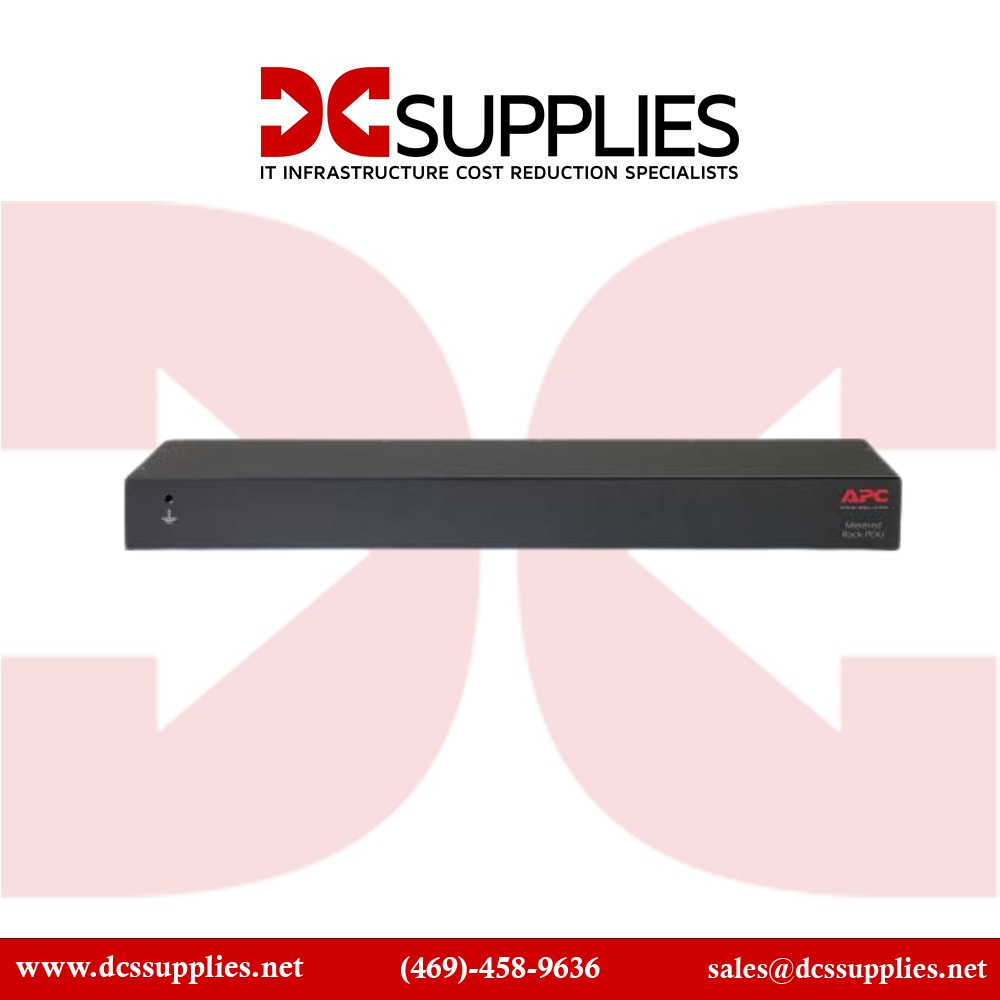

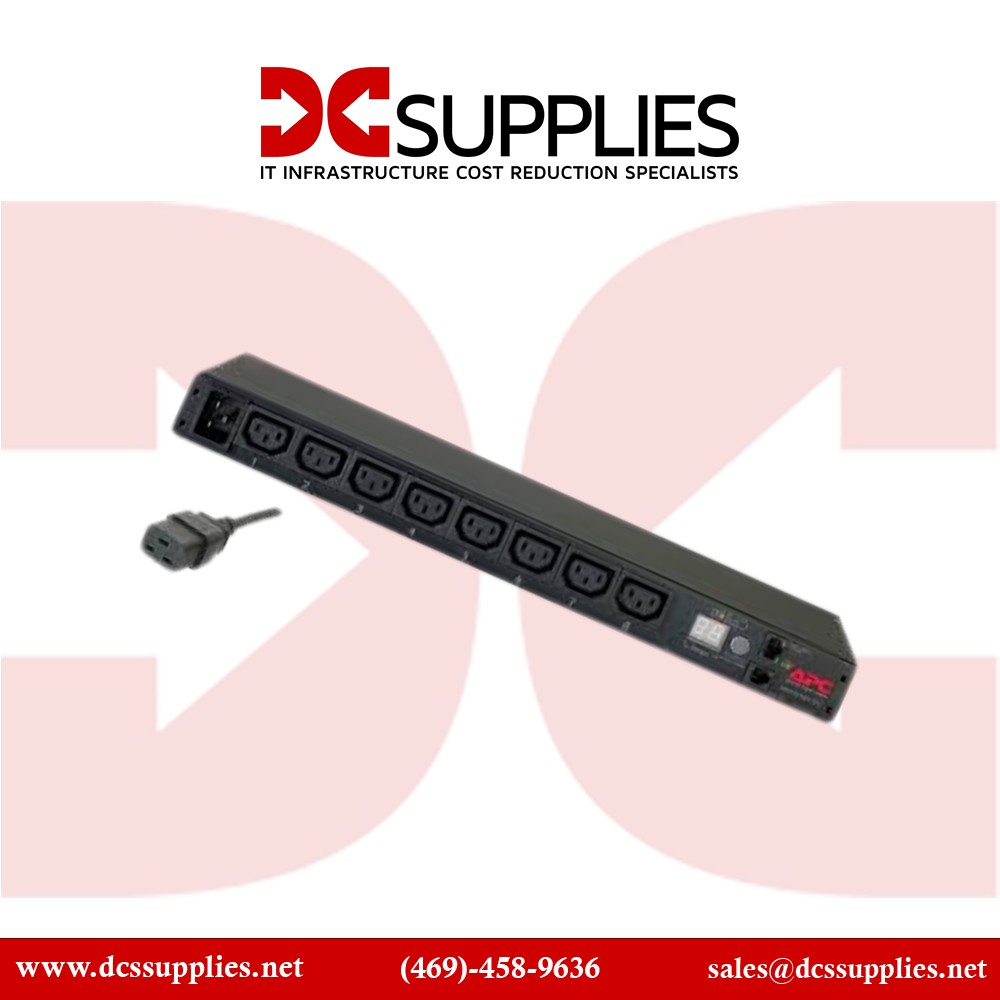

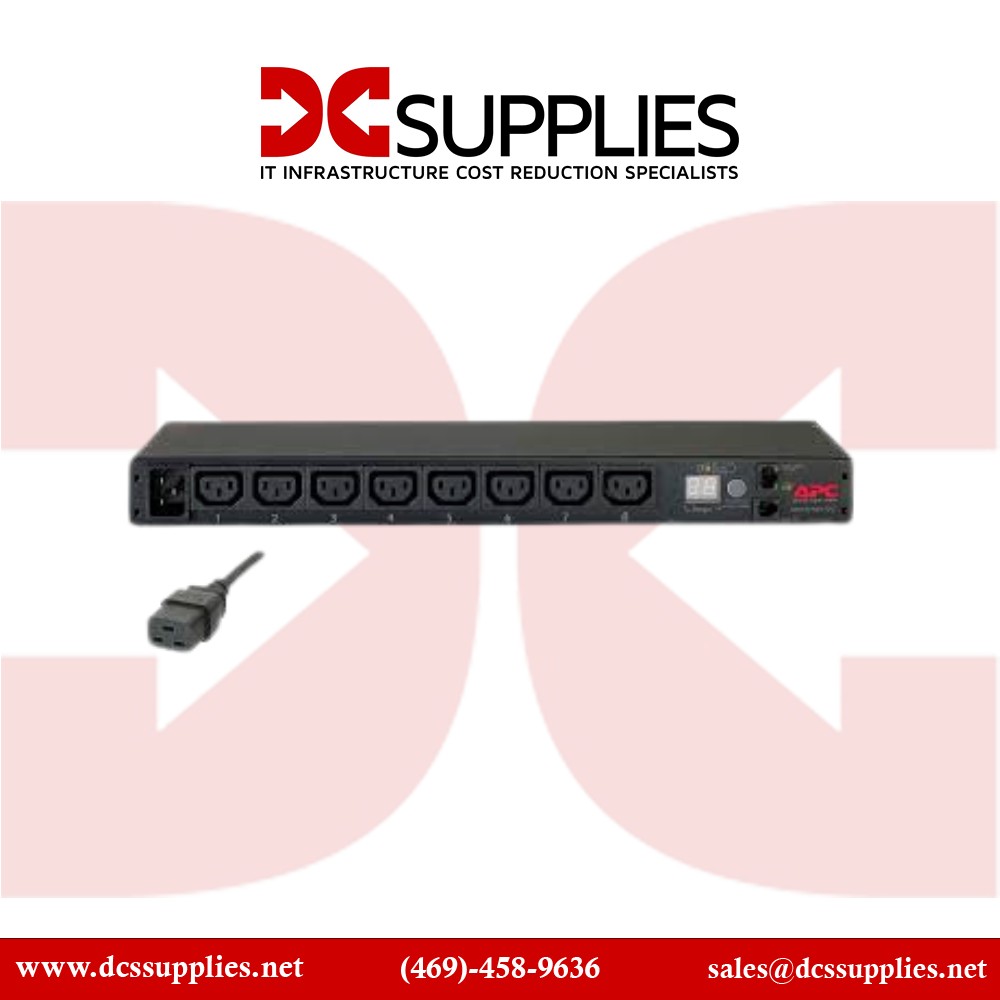

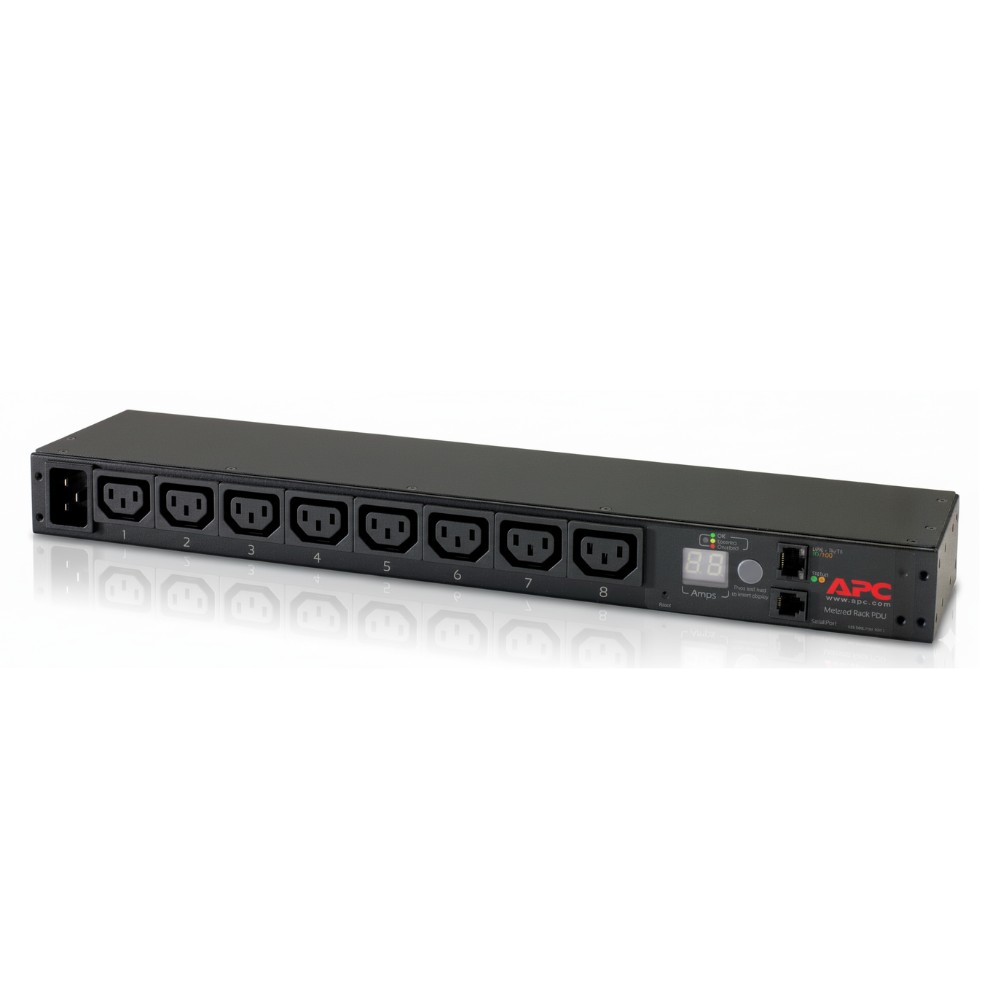

APC AP7821B Metered Rack PDU 1U, 16A, 208/230V, 8 C13 View larger
Previous Next

APC AP7821B Metered Rack PDU 1U, 16A, 208/230V, 8 C13

New

In Stock

Metered 1U rack PDU with 16A capacity and 8 C13 outlets.
×




$644.90

  • New

Detailed Specifications

APC

AP7821B

Metered Rack PDU | 1U • 16 A • 208/230 V • 8 × IEC C13

Compact, Monitored Power Distribution for IT & Network Racks
The APC AP7821B is a compact 1U metered rack power distribution unit crafted to deliver intelligently monitored power to dense server or network configurations. Designed for use in 208–230 V environments, it offers up to 16 A (3.3 kVA) capacity, eight IEC C13 outlets, and both local and remote current metering with user-defined alarm thresholds—perfect for managing mission-critical installations with precision and foresight

Features

Built to align with industry infrastructure standards, the AP7821B fits a 1U horizontal rack mount footprint, making it ideal for high-density gear setups. The PDU’s internal 16 A rating (3300 VA) delivers sufficient overhead for fully populated racks, while surge-tolerant design guards against overload situations 

Advanced Options

This model enhances reliability through integrated local LED metering and remote monitoring via web interfaces, SNMP, and telnet—supported by flash-upgradable firmware. Out-of-the-box usability is strong, with a C20 inlet cable (~8.2 ft), cord retention bracket, and all necessary mounting hardware included. Certified to operate in temperatures up to 60 °C, and constructed with recycled packaging and a global take-back initiative, the AP7821B is environmentally responsible too

Product Key Features

  • 1U horizontal rack form factor

  • 8 × locking IEC C13 outlets

  • 16 A @ 208–230 V input (≈ 3.3 kVA)

  • Local and remote current metering with alarms

  • Flash-upgradable firmware & network monitoring (Web, SNMP, Telnet)

  • Includes cord retention and rack-mount brackets

  • Operates up to 60 °C; eco-friendly packaging

Reliability & Performance

Equipped for continuous operation in high-demand environments, the AP7821B's real-time metering provides valuable load data to prevent downtime and optimize power distribution. It supports elevated ambient temperatures (up to 60 °C) under full load, enabling deployment in edge racks or confined spaces.Features like locking outlets and cord management ensure secure connections, while flash-upgradeable firmware future-proofs your investment—minimizing total cost of ownership . APC’s packaging and take-back program underscore a commitment to sustainable operations.

Key Features :

  • 8 × IEC C13 locking outlets

  • 16 A power capacity (3.3 kVA)

  • Local and network-based current metering

  • User-configurable alarm thresholds

  • Flash-upgradeable firmware

  • Works at ambient temperatures up to 60 °C

  • Locking C13 outlets & included mounting hardware

  • Eco-conscious packaging & recycling program

Specifications :

SpecificationDetails
Model Number AP7821B
Product Type Metered Rack PDU
Rack Units 1U Horizontal
Input Voltage 208–230 V AC
Max Input Current 16 A (20 A breaker rating)
Max Power Capacity 3,300 VA
Input Connector IEC 60320 C20, 2.5 m (8.2 ft) cable
Output Outlets 8 × IEC 60320 C13 (locking)
Metering Current monitoring (local LED & networked)
Remote Management Web, SNMP, Telnet — firmware flash-upgradeable
Operating Temperature –5 °C to 60 °C
Mounting Hardware Horizontal rack brackets + cord retention included
Dimensions (H×W×D) 1.73″ × 17.48″ × 4.02″ (44 × 444 × 102 mm)
Weight 3.84 lb (1.74 kg)
Certifications UL, CE, VDE, CSA, FCC Class A, RoHS, GOST
Packaging ≥70% recycled cardboard; global take-back supported
Warranty 2‑Year Repair-or-Replace
